Name: 1000 Ku-Band Single Band PLL LNB
Brand: Norsat International Inc.
SKU: HS1027AF
Price: 528.00 USD
Availability: InStock

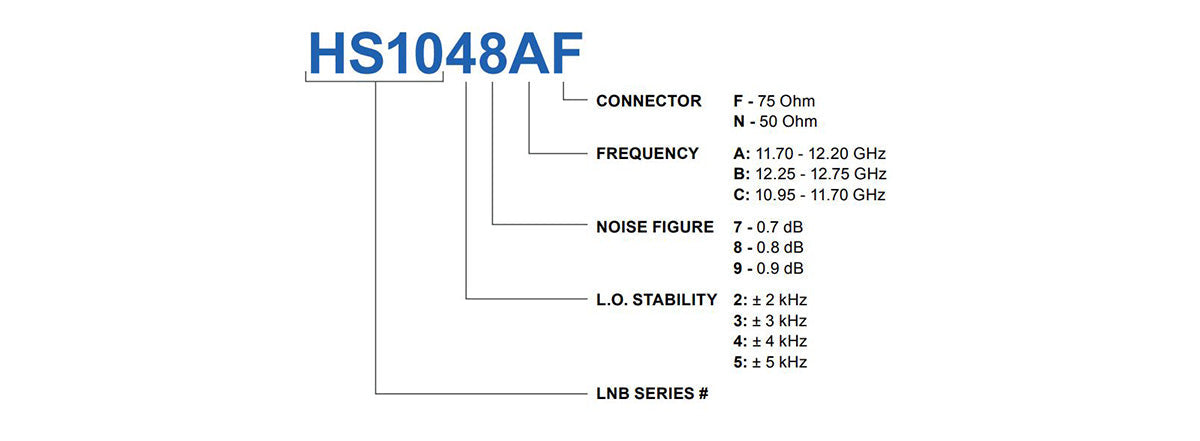

HS1027AF

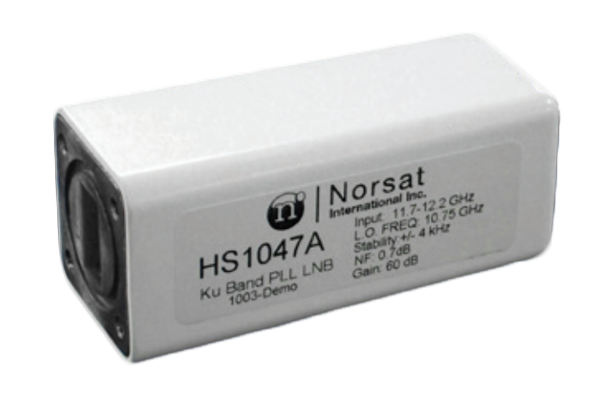

1000 Ku-Band Single Band PLL LNB

HS1000A Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41070808236215,"title":"± 2 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"± 2 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"HS1027AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"± 2 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["± 2 kHz","0.7 dB","F: 75 Ohm"],"price":52800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808268983,"title":"± 2 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"± 2 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"HS1027AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"± 2 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["± 2 kHz","0.7 dB","N: 50 Ohm"],"price":57200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808301751,"title":"± 2 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"± 2 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"HS1028AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"± 2 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["± 2 kHz","0.8 dB","F: 75 Ohm"],"price":50600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808334519,"title":"± 2 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"± 2 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"HS1028AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"± 2 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["± 2 kHz","0.8 dB","N: 50 Ohm"],"price":55000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808367287,"title":"± 2 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"± 2 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"HS1029AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"± 2 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["± 2 kHz","0.9 dB","F: 75 Ohm"],"price":48400,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808400055,"title":"± 2 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"± 2 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"HS1029AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 2 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"± 2 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["± 2 kHz","0.9 dB","N: 50 Ohm"],"price":52800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808432823,"title":"± 3 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"± 3 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"HS1037AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"± 3 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["± 3 kHz","0.7 dB","F: 75 Ohm"],"price":50600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808465591,"title":"± 3 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"± 3 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"HS1037AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"± 3 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["± 3 kHz","0.7 dB","N: 50 Ohm"],"price":55000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808498359,"title":"± 3 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"± 3 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"HS1038AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"± 3 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["± 3 kHz","0.8 dB","F: 75 Ohm"],"price":48400,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808531127,"title":"± 3 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"± 3 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"HS1038AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"± 3 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["± 3 kHz","0.8 dB","N: 50 Ohm"],"price":52800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808563895,"title":"± 3 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"± 3 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"HS1039AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"± 3 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["± 3 kHz","0.9 dB","F: 75 Ohm"],"price":46200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808596663,"title":"± 3 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"± 3 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"HS1039AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 3 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"± 3 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["± 3 kHz","0.9 dB","N: 50 Ohm"],"price":50600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808629431,"title":"± 4 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"± 4 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"HS1047AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"± 4 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["± 4 kHz","0.7 dB","F: 75 Ohm"],"price":46200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808662199,"title":"± 4 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"± 4 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"HS1047AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"± 4 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["± 4 kHz","0.7 dB","N: 50 Ohm"],"price":50600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808694967,"title":"± 4 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"± 4 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"HS1048AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"± 4 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["± 4 kHz","0.8 dB","F: 75 Ohm"],"price":44000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808727735,"title":"± 4 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"± 4 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"HS1048AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"± 4 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["± 4 kHz","0.8 dB","N: 50 Ohm"],"price":48400,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808760503,"title":"± 4 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"± 4 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"HS1049AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"± 4 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["± 4 kHz","0.9 dB","F: 75 Ohm"],"price":41800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808793271,"title":"± 4 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"± 4 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"HS1049AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 4 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"± 4 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["± 4 kHz","0.9 dB","N: 50 Ohm"],"price":46200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808826039,"title":"± 5 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"± 5 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"HS1057AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"± 5 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["± 5 kHz","0.7 dB","F: 75 Ohm"],"price":41800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808858807,"title":"± 5 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"± 5 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"HS1057AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"± 5 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["± 5 kHz","0.7 dB","N: 50 Ohm"],"price":46200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808891575,"title":"± 5 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"± 5 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"HS1058AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"± 5 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["± 5 kHz","0.8 dB","F: 75 Ohm"],"price":39600,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808924343,"title":"± 5 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"± 5 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"HS1058AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"± 5 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["± 5 kHz","0.8 dB","N: 50 Ohm"],"price":44000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808957111,"title":"± 5 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"± 5 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"HS1059AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"± 5 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["± 5 kHz","0.9 dB","F: 75 Ohm"],"price":37400,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41070808989879,"title":"± 5 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"± 5 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"HS1059AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - ± 5 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"± 5 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["± 5 kHz","0.9 dB","N: 50 Ohm"],"price":41800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	11.70 - 12.20 GHz
LO frequency 1	10.75 GHz
LO stability	±2 kHz
LO type	PLL
noise figure max	0.8 dB
noise figure typ	0.7 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 4 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-75 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +60°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	110 x 42 x 42 mm
product weight	0.3 kg

Back to Best selling products

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	140 x 50 x 50 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	Yes
