1008XUN-EOL

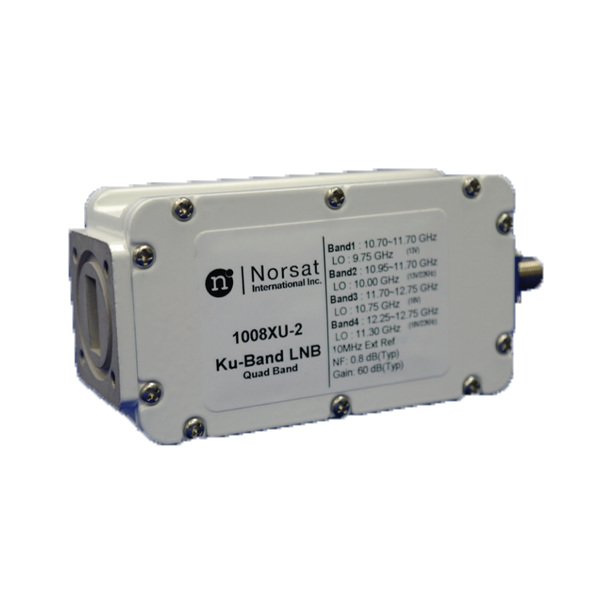

1000 Ku-Band Quad Band EXT REF LNB

1000XU Series

$594.00 A 50% discount is applied to the MSRP
/
Quantity Available: 2
Next Availability: 0
Next Availability Lead Time: In Stock
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

Only 2 items in stock!



Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 1000XU Series.

KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 10.70 - 11.70 GHz
input frequency band 2 10.95 - 11.70 GHz
input frequency band 3 11.70 - 12.75 GHz
input frequency band 4 12.25 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.00 GHz
LO frequency 3 10.75 GHz
LO frequency 4 11.30 GHz
LO stability Ext Ref
LO type EXT
noise figure max 1.0 dB
noise figure typ 0.8 dB
number of onboard LOs Quad-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1700 MHz
output frequency band 3 950 - 2000 MHz
output frequency band 4 950 - 1450 MHz
Product Revision C
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
control signal 4 18V / 22kHz Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 5 dB p-p
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max Depends on External Reference
phase noise 10kHz offset max Depends on External Reference
phase noise 1kHz offset max Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector (waterproof)
RF input connector WR-75 waveguide grooved (waterproof)
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

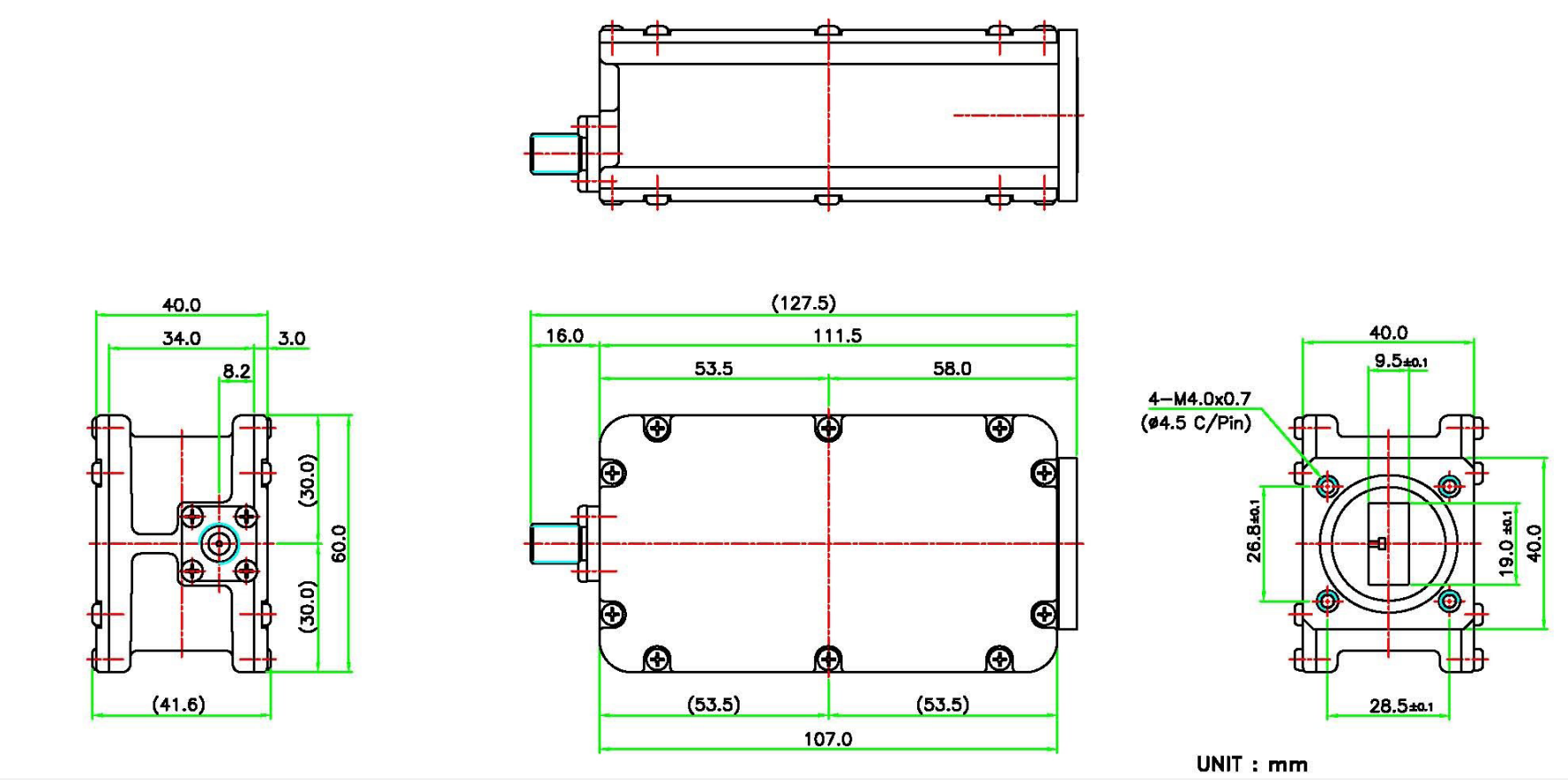

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 128 x 60 x 42 mm
product weight 0.4 kg
