Name: BUC Redundant Switch System (950 - 2150 MHz)
Brand: Norsat International Inc.
SKU: RSBUCKA25
Price: 18491.00 USD
Availability: InStock

BUC Redundant Switch System (950 - 2150 MHz)

RSBUCKA25

BUC Redundant Switch System (950 - 2150 MHz)

RSW BUC Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":42259349209271,"title":"25W KA BUC \/ None","option1":"25W KA BUC","option2":"None","option3":null,"sku":"RSBUCKA25","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 25W KA BUC \/ None","public_title":"25W KA BUC \/ None","options":["25W KA BUC","None"],"price":1849100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037022903,"title":"25W KA BUC \/ SMA Port for External 10MHz Injection","option1":"25W KA BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKA25I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 25W KA BUC \/ SMA Port for External 10MHz Injection","public_title":"25W KA BUC \/ SMA Port for External 10MHz Injection","options":["25W KA BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037055671,"title":"25W KA BUC \/ Build in 10MHz","option1":"25W KA BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKA25R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 25W KA BUC \/ Build in 10MHz","public_title":"25W KA BUC \/ Build in 10MHz","options":["25W KA BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42351011365047,"title":"50W KA BUC \/ None","option1":"50W KA BUC","option2":"None","option3":null,"sku":"RSBUCKA50","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 50W KA BUC \/ None","public_title":"50W KA BUC \/ None","options":["50W KA BUC","None"],"price":1849100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037088439,"title":"50W KA BUC \/ SMA Port for External 10MHz Injection","option1":"50W KA BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKA50I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 50W KA BUC \/ SMA Port for External 10MHz Injection","public_title":"50W KA BUC \/ SMA Port for External 10MHz Injection","options":["50W KA BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037121207,"title":"50W KA BUC \/ Build in 10MHz","option1":"50W KA BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKA50R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 50W KA BUC \/ Build in 10MHz","public_title":"50W KA BUC \/ Build in 10MHz","options":["50W KA BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42351011463351,"title":"20W Ku BUC \/ None","option1":"20W Ku BUC","option2":"None","option3":null,"sku":"RSBUCKU20","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 20W Ku BUC \/ None","public_title":"20W Ku BUC \/ None","options":["20W Ku BUC","None"],"price":1849100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037153975,"title":"20W Ku BUC \/ SMA Port for External 10MHz Injection","option1":"20W Ku BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKU20I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 20W Ku BUC \/ SMA Port for External 10MHz Injection","public_title":"20W Ku BUC \/ SMA Port for External 10MHz Injection","options":["20W Ku BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037186743,"title":"20W Ku BUC \/ Build in 10MHz","option1":"20W Ku BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKU20R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 20W Ku BUC \/ Build in 10MHz","public_title":"20W Ku BUC \/ Build in 10MHz","options":["20W Ku BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42351011561655,"title":"40W Ku BUC \/ None","option1":"40W Ku BUC","option2":"None","option3":null,"sku":"RSBUCKU40","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 40W Ku BUC \/ None","public_title":"40W Ku BUC \/ None","options":["40W Ku BUC","None"],"price":1849100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037252279,"title":"40W Ku BUC \/ SMA Port for External 10MHz Injection","option1":"40W Ku BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKU40I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 40W Ku BUC \/ SMA Port for External 10MHz Injection","public_title":"40W Ku BUC \/ SMA Port for External 10MHz Injection","options":["40W Ku BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037219511,"title":"40W Ku BUC \/ Build in 10MHz","option1":"40W Ku BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKU40R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 40W Ku BUC \/ Build in 10MHz","public_title":"40W Ku BUC \/ Build in 10MHz","options":["40W Ku BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42351011659959,"title":"80W Ku BUC \/ None","option1":"80W Ku BUC","option2":"None","option3":null,"sku":"RSBUCKU80","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku BUC \/ None","public_title":"80W Ku BUC \/ None","options":["80W Ku BUC","None"],"price":1849100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037285047,"title":"80W Ku BUC \/ SMA Port for External 10MHz Injection","option1":"80W Ku BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKU80I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku BUC \/ SMA Port for External 10MHz Injection","public_title":"80W Ku BUC \/ SMA Port for External 10MHz Injection","options":["80W Ku BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037317815,"title":"80W Ku BUC \/ Build in 10MHz","option1":"80W Ku BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKU80R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku BUC \/ Build in 10MHz","public_title":"80W Ku BUC \/ Build in 10MHz","options":["80W Ku BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42351011692727,"title":"80W Ku GAN BUC \/ None","option1":"80W Ku GAN BUC","option2":"None","option3":null,"sku":"RSBUCKU80G","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku GAN BUC \/ None","public_title":"80W Ku GAN BUC \/ None","options":["80W Ku GAN BUC","None"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037350583,"title":"80W Ku GAN BUC \/ SMA Port for External 10MHz Injection","option1":"80W Ku GAN BUC","option2":"SMA Port for External 10MHz Injection","option3":null,"sku":"RSBUCKU80GI","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku GAN BUC \/ SMA Port for External 10MHz Injection","public_title":"80W Ku GAN BUC \/ SMA Port for External 10MHz Injection","options":["80W Ku GAN BUC","SMA Port for External 10MHz Injection"],"price":1368300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42434037383351,"title":"80W Ku GAN BUC \/ Build in 10MHz","option1":"80W Ku GAN BUC","option2":"Build in 10MHz","option3":null,"sku":"RSBUCKU80GR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BUC Redundant Switch System (950 - 2150 MHz) - 80W Ku GAN BUC \/ Build in 10MHz","public_title":"80W Ku GAN BUC \/ Build in 10MHz","options":["80W Ku GAN BUC","Build in 10MHz"],"price":1408300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

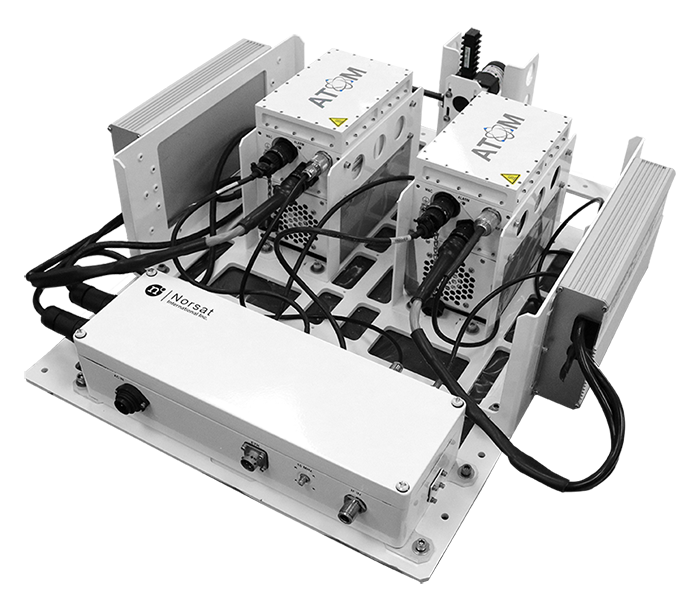

Norsat’s ATOM BUC Redundant Switch System features a slim, streamline outdoor unit mounted on a plate for easy installation. Automatically detect signal faults and switch to an alternate BUC - providing maximum satellite service availability. Transmit-side signal continuity is maintained via monitoring the M&C from the BUC and upon detecting a fault, signal is automatically switched to the reserved BUC.
Available for 1:1 redundancy applications, Norsat BUC Redundant Switch solutions combine the reliability and performance of up conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	950 - 2150 MHz
LO stability	10 MHz Source Dependent
optional add-ons	None
redundancy	1:1
Product Revision	A

RF SPECIFICATIONS
input VSWR	BUC Dependent
insertion loss	6 dB max.
phase noise 100Hz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
power	100-240 VAC (50-60 Hz)

INTERFACE SPECIFICATIONS
component	25W Ka BUC
input connector	N-Connector
RF output connector	WR-28
switching	Atomatic / Manual
switch M&C	Serial, SNMP

ENVIRONMENTAL SPECIFICATIONS
relative humidity	<100% (ODU); <95% non-condensing (IDU)
temperature operational	-40 to +60˚C (ODU); 0 to +55˚C (IDU)

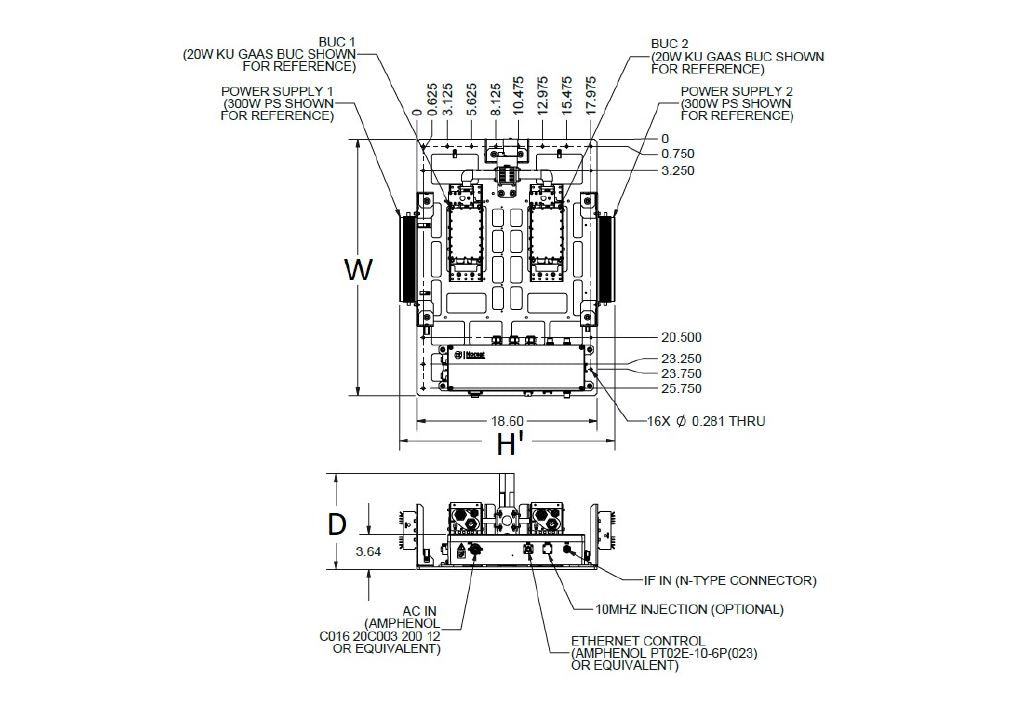

PHYSICAL SPECIFICATIONS
packaging	762 x 648 x 310 mm (30 x 25.5 x 12.2 in)
product dimensions (LxWxH)	26.5 x 22.2 x 8.7 in
product weight (including BUCs)	20.73 kg

Back to New Products

INTERFACE SPECIFICATIONS
component	50W Ka BUC
input connector	N-Connector
RF output connector	WR-28
switching	Atomatic / Manual
switch M&C	Serial, SNMP

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	950 - 2150 MHz
LO stability	10 MHz Source Dependent
optional add-ons	None
redundancy	1:1
Product Revision	A

INTERFACE SPECIFICATIONS
component	20W Ku BUC
input connector	N-Connector
RF output connector	WR-75
switching	Atomatic / Manual
switch M&C	Serial, SNMP

INTERFACE SPECIFICATIONS
component	40W Ku BUC
input connector	N-Connector
RF output connector	WR-75
switching	Atomatic / Manual
switch M&C	Serial, SNMP

INTERFACE SPECIFICATIONS
component	80W Ku BUC
input connector	N-Connector
RF output connector	WR-75
switching	Atomatic / Manual
switch M&C	Serial, SNMP

PHYSICAL SPECIFICATIONS
packaging	780 x 681 x 343 mm (30.7 x 26.8 x 13.5 in)
product dimensions (LxWxH)	26.5 x 22.2 x 9.9 in
product weight (including BUCs)	33.34 kg

INTERFACE SPECIFICATIONS
component	80W Ku GAN BUC
input connector	N-Connector
RF output connector	WR-75
switching	Atomatic / Manual
switch M&C	Serial, SNMP

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	-
Unit Package Weight	-
COMPLIANCE
	Yes
