Name: 1000 banda Ku banda simultánea PLL LNB
Brand: Norsat International Inc.
SKU: 1108DHF-1
Price: 2016.00 USD
Availability: InStock

1108DHF-1

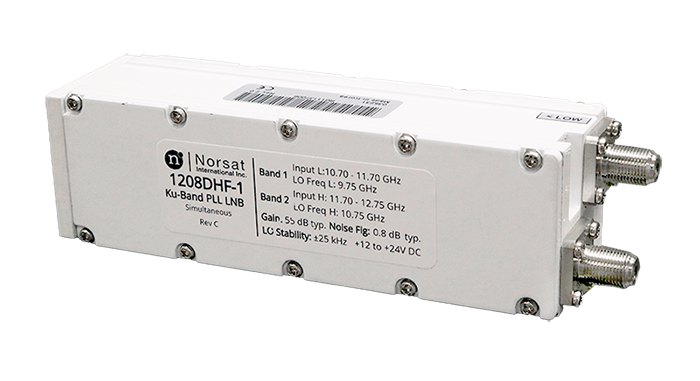

1000 banda Ku banda simultánea PLL LNB

1000DH Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

Your selections will add an additional charge of

[{"id":41064100855991,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100888759,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100921527,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100954295,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100987063,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101019831,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101052599,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101085367,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 banda Ku banda simultánea PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ku estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como el proveedor líder en la industria de LNB de alto rendimiento

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	L:10.70 - 11.70 GHz
input frequency band 2	H: 11.70 - 12.75 GHz
LO frequency 1	L: 9.75 GHz
LO frequency 2	H: 10.75 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	.85 dB
noise figure typ	0.8 dB
number of onboard LOs	Simultaneous-Band
output frequency band 1	L: 950 - 1950 MHz
output frequency band 2	H: 950 - 2000 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	62 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness (over full band)	≤ 4 dB p-p
input VSWR	2.2 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	450 mA max. (each band)
power requirements	+12 to +24V DC (each band)

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	40 mm
product length	155 mm
product weight	0.45 kg
product width	42 mm

Valoración de los clientes

5,0 Basado en 1 comentarios

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Customer Photos

1000 Ku-Band Simultaneous Band PLL LNB - Customer Photo From Richard Osborne

Escribe un comentario

Gracias por enviar un comentario!

Su aporte es muy apreciado. ¡Compártelo con tus amigos para que ellos también puedan disfrutarlo!

12/03/2024

Richard O.

United Kingdom

long term project

We've been using the 1108HDFF on a specific customer project for over 3 years. It meets all their high expectations

Norsat International Inc. 1000 banda Ku banda simultánea PLL LNB Review

1000 Ku-Band Simultaneous Band PLL LNB

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 mm x 95 mm x 65 mm
