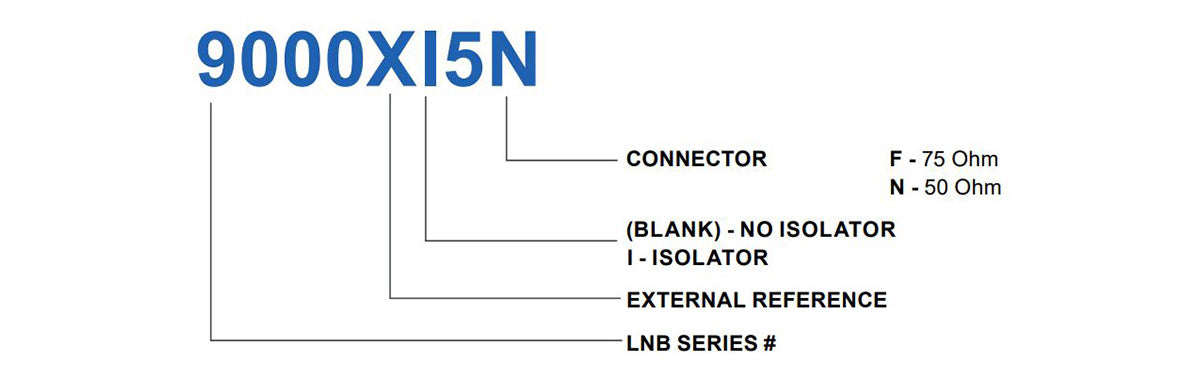

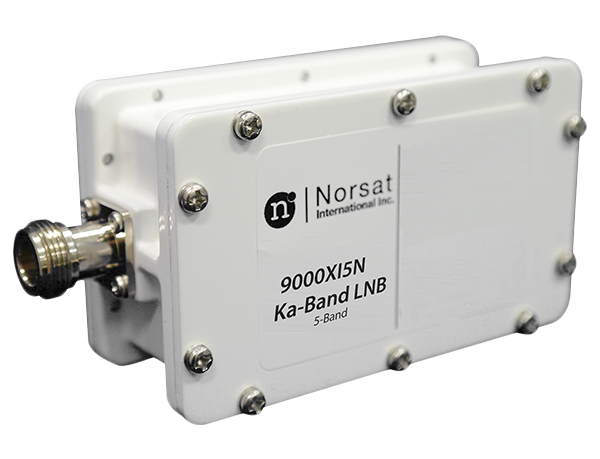

KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.20 - 18.20 GHz
input frequency band 2
18.20 - 19.20 GHz
input frequency band 3
19.20 - 20.20 GHz
input frequency band 4
20.20 - 21.20 GHz
input frequency band 5
21.20 - 22.20 GHz
LO frequency 1
16.25 GHz
LO frequency 2
17.25 GHz
LO frequency 3
18.25 GHz
LO frequency 4
19.25 GHz
LO frequency 5
20.25 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
2.9 dB
noise figure typ
2.5 dB
number of onboard LOs
Five-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
output frequency band 4
950 - 1950 MHz
output frequency band 5
L-Band: 950 - 1950 MHz
Product Revision
D
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
13V / 22kHz Tone
control signal 3
18V / No Tone
control signal 4
18V / 22kHz Tone
control signal 5
22V / No Tone
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
3.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
phase noise 1MHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
500 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
isolator
No Isolator
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C

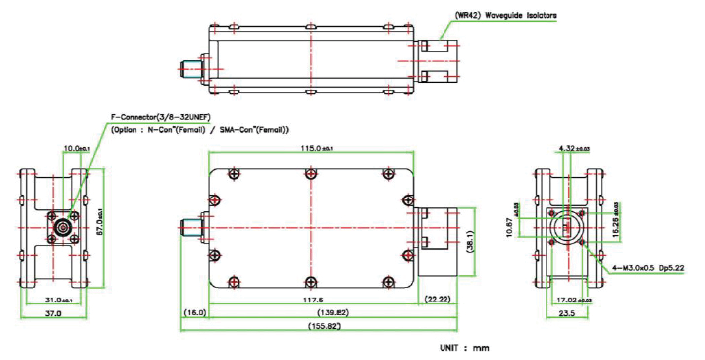

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
137 x 67 x 39 mm
product weight
0.55 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.20 - 18.20 GHz
input frequency band 2
18.20 - 19.20 GHz
input frequency band 3
19.20 - 20.20 GHz
input frequency band 4
20.20 - 21.20 GHz
input frequency band 5
21.20 - 22.20 GHz
LO frequency 1
16.25 GHz
LO frequency 2
17.25 GHz
LO frequency 3
18.25 GHz
LO frequency 4
19.25 GHz
LO frequency 5
20.25 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
2.9 dB
noise figure typ
2.5 dB
number of onboard LOs
Five-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
output frequency band 4
950 - 1950 MHz
output frequency band 5
L-Band: 950 - 1950 MHz
Product Revision
D
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
13V / 22kHz Tone
control signal 3
18V / No Tone
control signal 4
18V / 22kHz Tone
control signal 5
22V / No Tone
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
3.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
phase noise 1MHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
500 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
isolator
No Isolator
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
137 x 67 x 39 mm
product weight
0.55 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.20 - 18.20 GHz
input frequency band 2
18.20 - 19.20 GHz
input frequency band 3
19.20 - 20.20 GHz
input frequency band 4
20.20 - 21.20 GHz
input frequency band 5
21.20 - 22.20 GHz
LO frequency 1
16.25 GHz
LO frequency 2
17.25 GHz
LO frequency 3
18.25 GHz
LO frequency 4
19.25 GHz
LO frequency 5
20.25 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
3.0 dB
noise figure typ
2.6 dB
number of onboard LOs
Five-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
output frequency band 4
950 - 1950 MHz
output frequency band 5
L-Band: 950 - 1950 MHz
Product Revision
E
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
13V / 22kHz Tone
control signal 3
18V / No Tone
control signal 4
18V / 22kHz Tone
control signal 5
22V / No Tone
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
1.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
phase noise 1MHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
500 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
isolator
With Isolator
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
156 x 67 x 39 mm
product weight
0.55 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.20 - 18.20 GHz
input frequency band 2
18.20 - 19.20 GHz
input frequency band 3
19.20 - 20.20 GHz
input frequency band 4
20.20 - 21.20 GHz
input frequency band 5
21.20 - 22.20 GHz
LO frequency 1
16.25 GHz
LO frequency 2
17.25 GHz
LO frequency 3
18.25 GHz
LO frequency 4
19.25 GHz
LO frequency 5
20.25 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
3.0 dB
noise figure typ
2.6 dB
number of onboard LOs
Five-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
output frequency band 4
950 - 1950 MHz
output frequency band 5
L-Band: 950 - 1950 MHz
Product Revision
D
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
13V / 22kHz Tone
control signal 3
18V / No Tone
control signal 4
18V / 22kHz Tone
control signal 5
22V / No Tone
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
1.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
phase noise 1MHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
500 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
isolator
With Isolator
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
156 x 67 x 39 mm
product weight
0.55 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
145 x 95 x 65 mm
Unit Package Weight
0.55 kg
COMPLIANCE
Yes
Yes
Yes
Open here
9000X5-Spec-Sheet.pdf

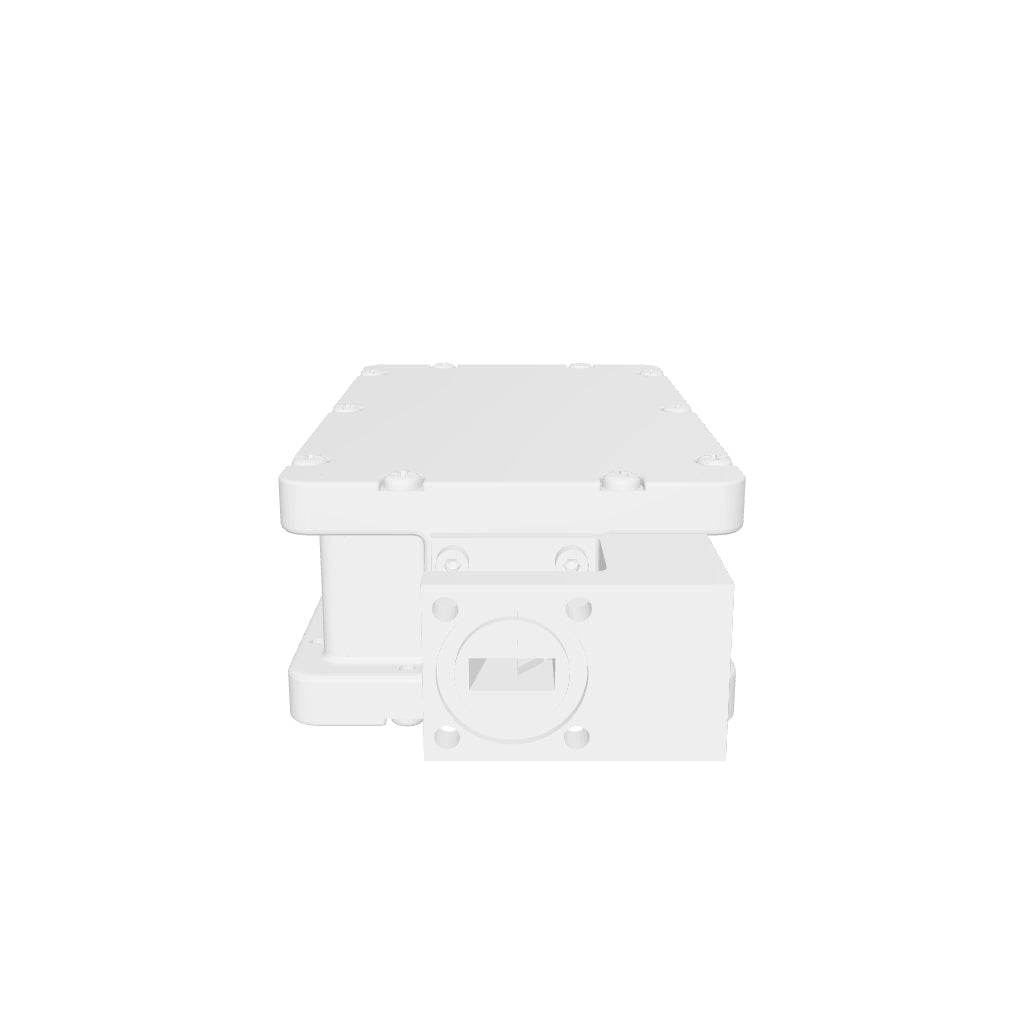

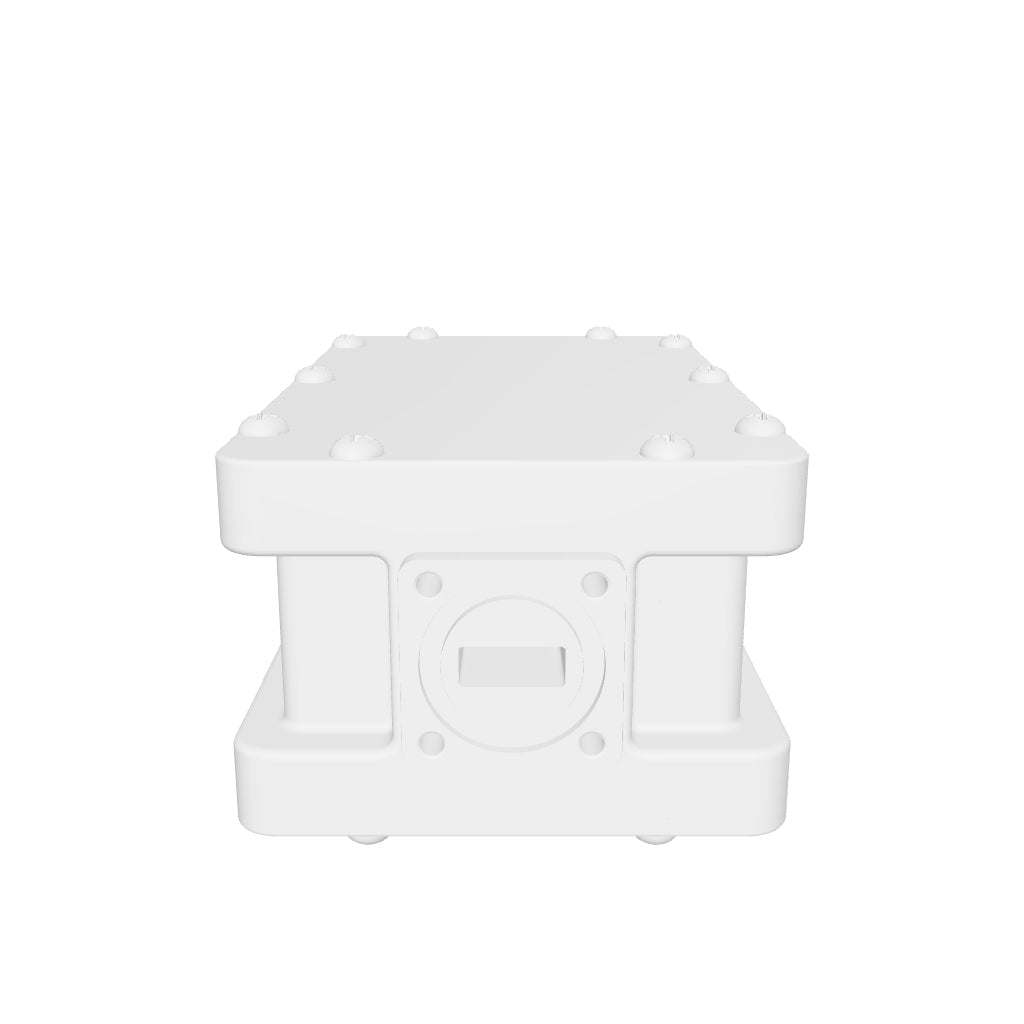

3DModel-9000X.STEP
