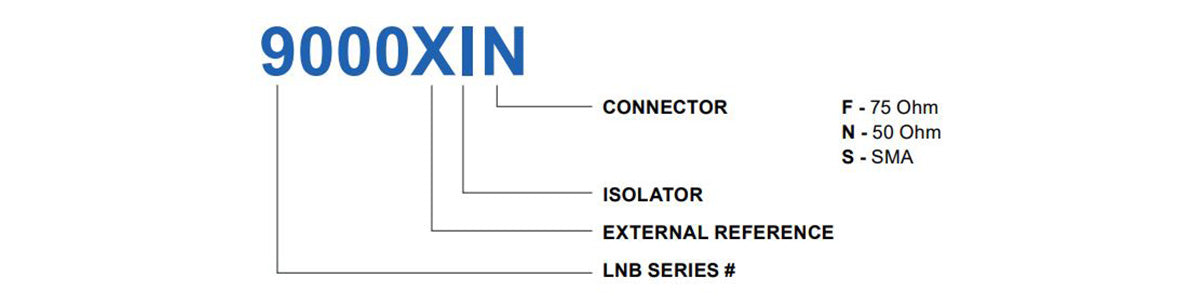

KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
20.20 - 21.20 GHz
LO frequency 1
19.20 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
1.8 dB
noise figure typ
1.5 dB
number of onboard LOs
Single-Band
output frequency band 1
1000 - 2000 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
64 db
conversion gain min
56 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
1.3 : 1 max.
output P1dB
+ 15 dBm min.
output VSWR
1.8 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
400 mA
power requirements
+15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
153 x 77 x 51 mm
product weight
0.7 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
20.20 - 21.20 GHz
LO frequency 1
19.20 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
1.8 dB
noise figure typ
1.5 dB
number of onboard LOs
Single-Band
output frequency band 1
1000 - 2000 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
64 db
conversion gain min
56 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
1.3 : 1 max.
output P1dB
+ 15 dBm min.
output VSWR
1.8 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
400 mA
power requirements
+15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
153 x 77 x 51 mm
product weight
0.7 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
20.20 - 21.20 GHz
LO frequency 1
19.20 GHz
LO stability
Ext Ref
LO type
EXT
noise figure max
1.8 dB
noise figure typ
1.5 dB
number of onboard LOs
Single-Band
output frequency band 1
1000 - 2000 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
64 db
conversion gain min
56 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
input VSWR
1.3 : 1 max.
output P1dB
+ 15 dBm min.
output VSWR
1.8 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption
400 mA
power requirements
+15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
SMA Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
153 x 77 x 51 mm
product weight
0.7 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Japan
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
-
Unit Package Weight
0.7 kg
COMPLIANCE
Yes
Yes
Yes
Open here
9000XI-Spec-Sheet.pdf
3DModel-9000XI.STEP
