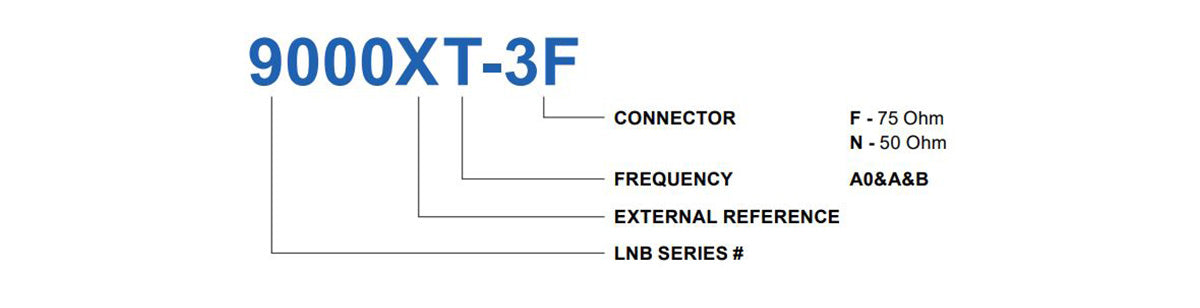

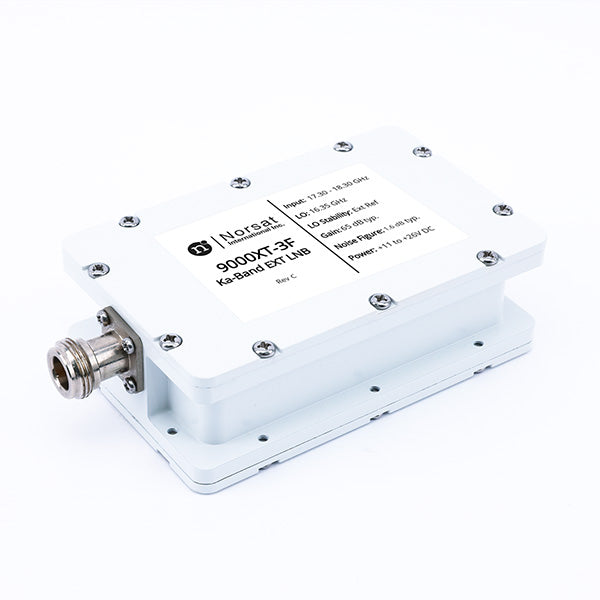

KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.30 - 18.30 GHz
input frequency band 2
18.30 - 19.30 GHz
input frequency band 3
19.30 - 20.20 GHz
LO frequency 1
16.35 GHz
LO frequency 2
17.35 GHz
LO frequency 3
18.35 GHz
LO stability
Ext Ref
LO type
External
noise figure max
2.0 dB
noise figure typ
1.6 dB
number of onboard LOs
Triple-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
Product Revision
C
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
18V / No Tone
control signal 3
13V / 22kHz Tone
conversion gain max
70 dB
conversion gain min
58 dB
conversion gain typ
65 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
image rejection
40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35
input VSWR
2.5 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
spurious
-60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band)
ELECTRICAL SPECIFICATIONS
current consumption
400 mA
power requirements
+11 to +26V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C

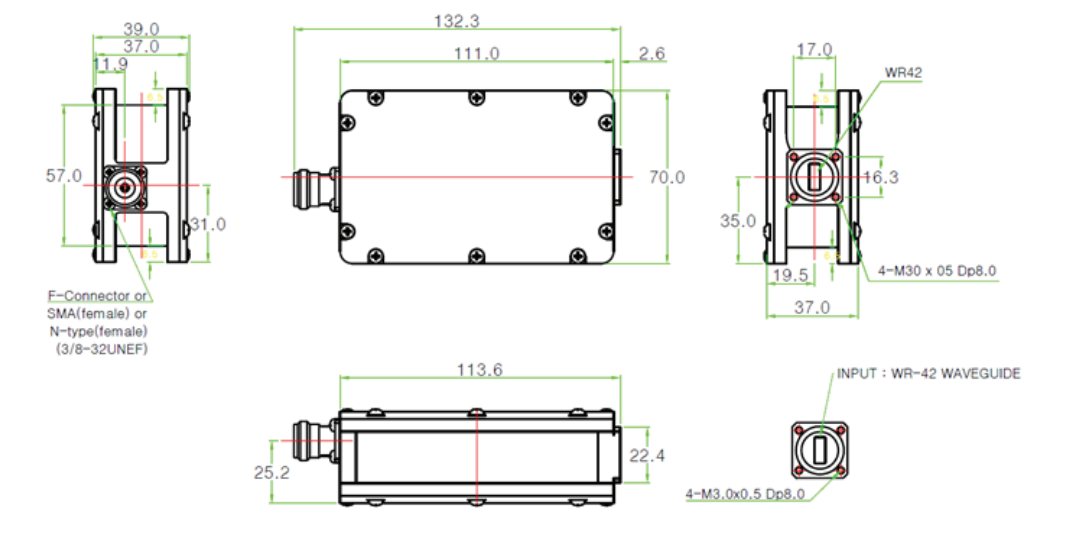

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
133 x 70 x 39 mm
product weight
0.5 kg
KEY SPECIFICATIONS
band
Ka-Band
external ref freq
10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1
17.30 - 18.30 GHz
input frequency band 2
18.30 - 19.30 GHz
input frequency band 3
19.30 - 20.20 GHz
LO frequency 1
16.35 GHz
LO frequency 2
17.35 GHz
LO frequency 3
18.35 GHz
LO stability
Ext Ref
LO type
External
noise figure max
2.0 dB
noise figure typ
1.6 dB
number of onboard LOs
Triple-Band
output frequency band 1
950 - 1950 MHz
output frequency band 2
950 - 1950 MHz
output frequency band 3
950 - 1950 MHz
Product Revision
A
RF SPECIFICATIONS
control signal 1
13V / No Tone
control signal 2
18V / No Tone
control signal 3
13V / 22kHz Tone
conversion gain max
70 dB
conversion gain min
58 dB
conversion gain typ
65 dB
Gain Flatness (over full band)
≤ 4 dB p-p max.
image rejection
40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35
input VSWR
2.5 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
Depends on External Reference
phase noise 10kHz offset max
Depends on External Reference
phase noise 1kHz offset max
Depends on External Reference
spurious
-60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band)
ELECTRICAL SPECIFICATIONS
current consumption
400 mA
power requirements
+11 to +26V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
133 x 70 x 39 mm
product weight
0.5 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
-
Unit Package Weight
0.5 kg
COMPLIANCE
Yes
Yes
Yes
Open here
9000XT-3-Spec-Sheet.pdf

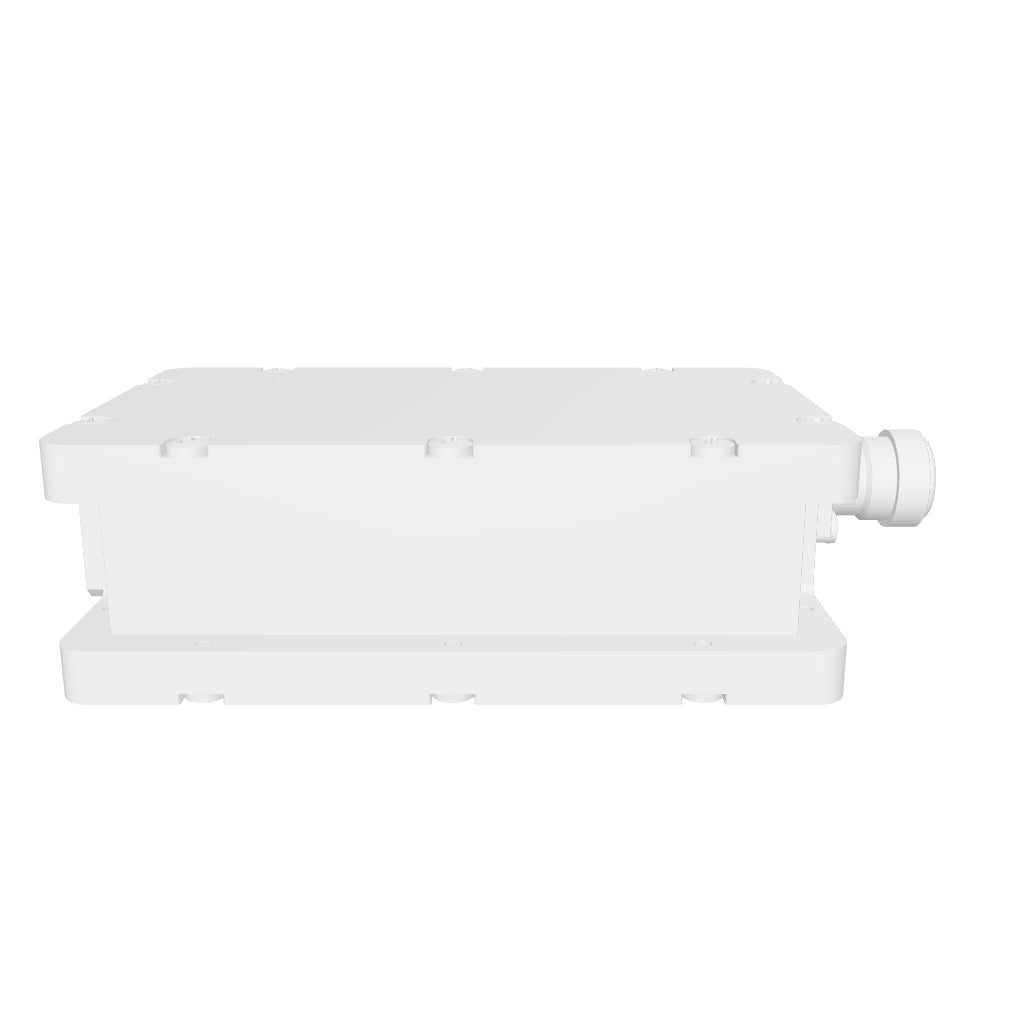

3DModel-9000XT-3.STEP
