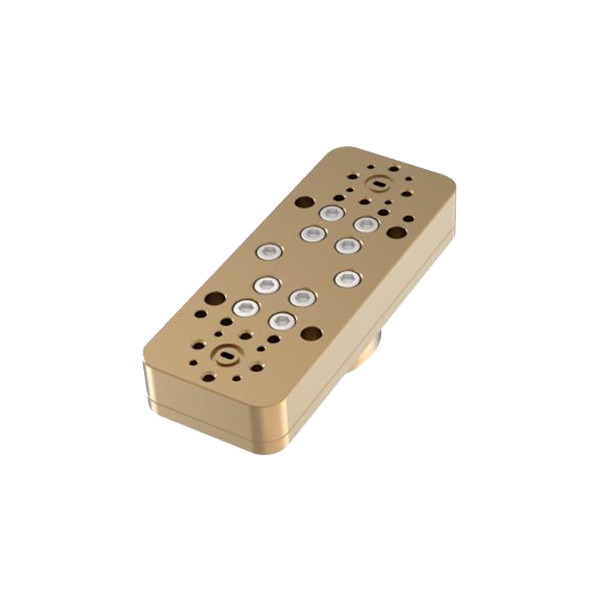

![Waveguide E-Band Diplexer]()

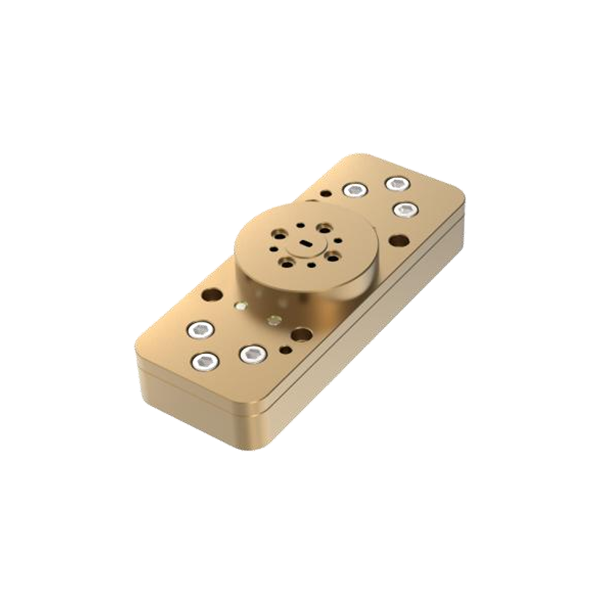

![Waveguide E-Band Diplexer]()
| KEY SPECIFICATIONS |
| band |
E-Band |
| bandwith |
5 GHz |
| frequency |
71 - 76 GHz; 81 - 86 GHz |
| product family |
Diplexer |
| rejection |
≥ 70 dB |
| Product Revision |
A |
| RF SPECIFICATIONS |
| gain ripple |
≤ 0.6 dB |
| input VSWR |
≤ 1.5 : 1 |
| insertion loss |
≤ 1.0 dB |
| ELECTRICAL SPECIFICATIONS |
| impedance |
50 Ω |
| INTERFACE SPECIFICATIONS |
| connectors type |
WR10 |
| ENVIRONMENTAL SPECIFICATIONS |
| indoor status |
Indoor |
| PHYSICAL SPECIFICATIONS |
| product height |
20.76 mm |
| product length |
86.83 mm |
| product width |
34 mm |
Please log in to view additional documents.
Please log in to view additional documents.
Please log in to download the files.
| INFORMATION |
| HS Code |
8517799000 |
| Country of Origin |
Made in Thailand |
| Ex Works |
Richmond, BC, Canada |
| ECCN Number |
EAR99 |
| Warranty |
3 years |
| Unit Package Dimensions |
117 mm x 61 mm x 54 mm |
| Unit Package Weight |
0.05 kg |
| COMPLIANCE |
|
Yes |
|
Yes |
|
Yes |
