Name: LNB PLL de banda única de banda Q
Brand: Norsat International Inc.
SKU: Q1000HF
Price: 7920.00 USD
Availability: InStock

Q1000HF

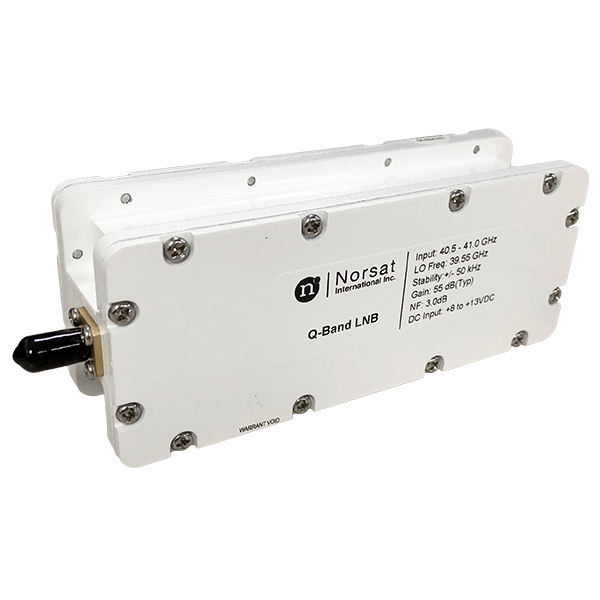

LNB PLL de banda única de banda Q

Q1000H Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

Your selections will add an additional charge of

View Family Datasheet

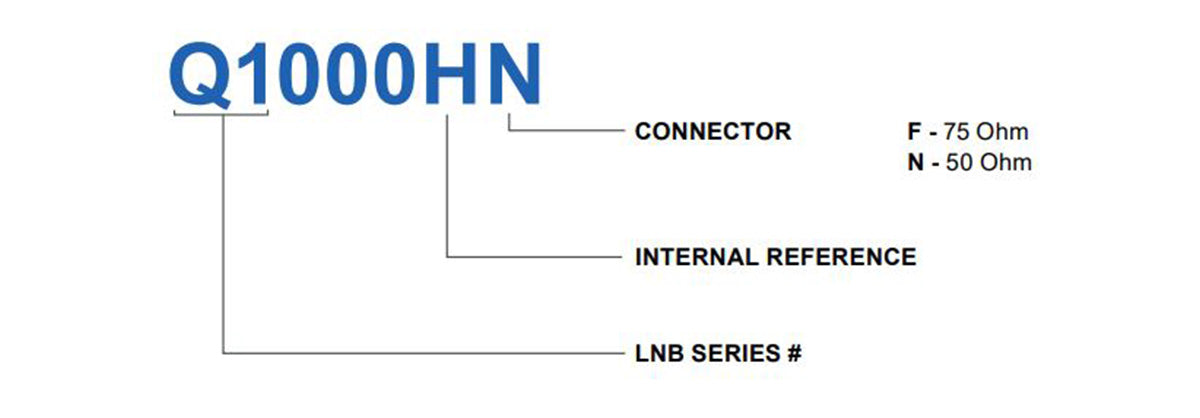

[{"id":41135828074679,"title":"F: 75 Ohm","option1":"F: 75 Ohm","option2":null,"option3":null,"sku":"Q1000HF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Q - F: 75 Ohm","public_title":"F: 75 Ohm","options":["F: 75 Ohm"],"price":792000,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135828107447,"title":"N: 50 Ohm","option1":"N: 50 Ohm","option2":null,"option3":null,"sku":"Q1000HN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Q - N: 50 Ohm","public_title":"N: 50 Ohm","options":["N: 50 Ohm"],"price":792000,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Q estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como el proveedor líder de la industria de LNB de alto rendimiento.

KEY SPECIFICATIONS
band	Q-Band
input frequency band 1	40.50 - 41.00 GHz
LO frequency 1	39.55 GHz
LO stability	±50 kHz
LO type	PLL
noise figure max	3 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	60 dB
conversion gain min	50 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	1.8 : 1 max.
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	1000 mA max.
power requirements	+8 to +13V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-22 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +50°C
temperature storage	-40 to +80°C

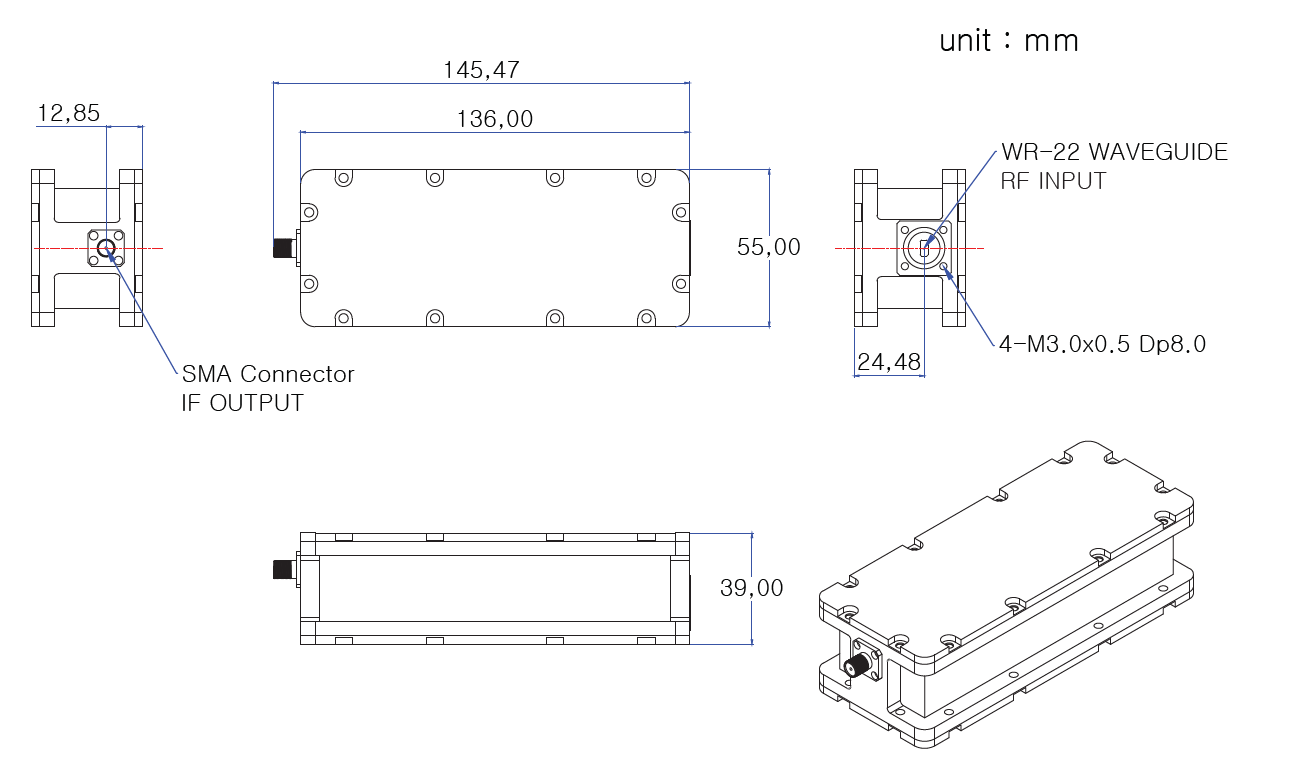

PHYSICAL SPECIFICATIONS
product height	39 mm
product length	146 mm
product weight	0.7 kg
product width	55 mm

KEY SPECIFICATIONS
input frequency band 1	40.50 - 41.00 GHz
LO frequency 1	39.55 GHz
LO stability	±50 kHz
LO type	PLL
noise figure max	3 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	60 dB
conversion gain min	50 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	1.8 : 1 max.
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	1000 mA max.
power requirements	+8 to +13V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-22 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +50°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	39 mm
product length	146 mm
product weight	0.7 kg
product width	55 mm

Valoración de los clientes

0,0 Basado en 0 comentarios

5 ★

4 ★

3 ★

2 ★

1 ★

Escribe un comentario

Gracias por enviar un comentario!

Su aporte es muy apreciado. ¡Compártelo con tus amigos para que ellos también puedan disfrutarlo!

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	146 mm x 55 mm x 39 mm
