Name: Single/Dual Speed Control System for 6.2m Ku-Band Earth Station
Brand: Norsat International Inc.
SKU: ACS620KU-B
Price: 31250.00 USD
Availability: InStock

ACS620KU-B

Single/Dual Speed Control System for 6.2m Ku-Band Earth Station

Antenna Control Systems

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

Antenna Aperture

Your selections will add an additional charge of

[{"id":43402374217911,"title":"Dual Speed (Recommend)","option1":"Dual Speed (Recommend)","option2":null,"option3":null,"sku":"ACS620KU-B","requires_shipping":true,"taxable":true,"featured_image":{"id":38426571604151,"product_id":7839709757623,"position":3,"created_at":"2024-09-16T10:06:36-07:00","updated_at":"2024-09-16T10:06:37-07:00","alt":null,"width":600,"height":599,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/ACS-BC-product-1.png?v=1726506397","variant_ids":[43402374217911]},"available":true,"name":"Single\/Dual Speed Control System for 6.2m Ku-Band Earth Station - Dual Speed (Recommend)","public_title":"Dual Speed (Recommend)","options":["Dual Speed (Recommend)"],"price":3125000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30835802112183,"position":3,"preview_image":{"aspect_ratio":1.002,"height":599,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/ACS-BC-product-1.png?v=1726506397"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43402374250679,"title":"Single Speed (Optional)","option1":"Single Speed (Optional)","option2":null,"option3":null,"sku":"ACS620KU-A","requires_shipping":true,"taxable":true,"featured_image":{"id":38426517799095,"product_id":7839709757623,"position":1,"created_at":"2024-09-16T10:05:22-07:00","updated_at":"2024-09-16T10:05:23-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/ACS-A-product-1.png?v=1726506323","variant_ids":[43402374250679]},"available":true,"name":"Single\/Dual Speed Control System for 6.2m Ku-Band Earth Station - Single Speed (Optional)","public_title":"Single Speed (Optional)","options":["Single Speed (Optional)"],"price":1750000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30835753222327,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/ACS-A-product-1.png?v=1726506323"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Antenna control systems are supplied only for Motorized Earth Station Antennas. Manual Earth Stations do NOT require a control system.
To select the correct Anchor Earth Station Antenna model for the control system, please refer to the corresponding antenna aperture, band, and drive mode.
For example, ACS620KU-A (optional) and ACS620KU-B (mandatory) are both compatible with ESER620KU2B and ESER620KU4B.

KEY SPECIFICATIONS
band	Ku-Band
drive speed	Dual speed (High and Low)
structural form	3-axis, separate ACU/ADU
Product Revision	A

ANTENNA SPECIFICATIONS
angle display resolution	0.01°
angle display range	0 - 360°
encoder accuracy AZ	0.01°
encoder accuracy EL	0.01°
encoder accuracy POL	0.08°
preset satellite	ACU supports 50 satellites; ADU supports 10 satellites
tracking accuracy	1/10 reception beamwidth
type	Dual speed, separated ACU and ADU control system

ELECTRICAL SPECIFICATIONS
power consumption	3500W
power supply	ACU: AC 220V±10%, 50/60Hz; ADU: AC 380V±10%, 50/60Hz

INTERFACE SPECIFICATIONS
remote interface	RJ-45 network(optional fiber interface)

ENVIRONMENTAL SPECIFICATIONS
safety	1.Soft and hard limits provide guarantee for the safe operation of the antenna; 2.The cables are all flame retardant series cables; 3. Each rotating shaft is equipped with an independent circuit breaker, which further improves the safety of the system.
temperature operational	-20 - 60℃
temperature operational cable	-20 - 60℃; low-temperature cable: -30 - 90℃

PHYSICAL SPECIFICATIONS
product dimension	Standard Chassis 6U
product height	1400 mm
product length	560 mm
product width	340 mm

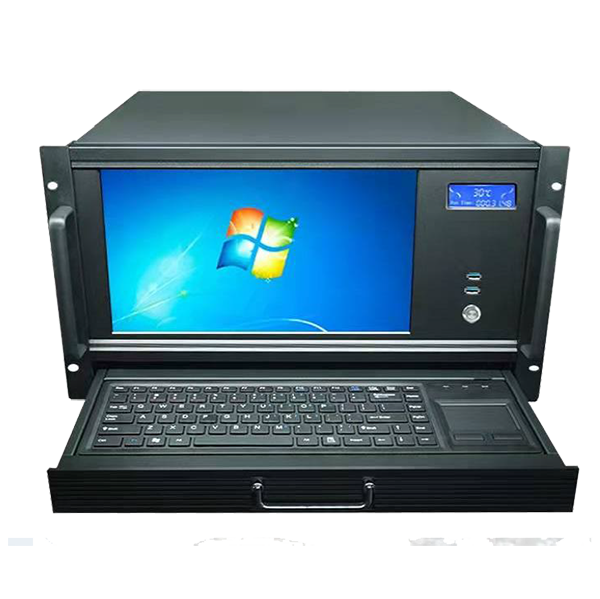

standard configuration	Antenna control unit, antenna drive unit, beacon tracking receiving unit, photoelectric encoder, flame retardant cable and connectors
