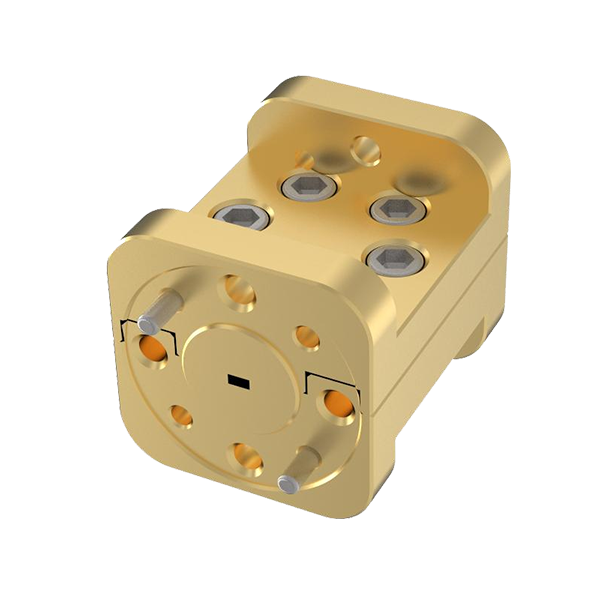

![Waveguide Filter W-Band]()
![Waveguide Filter W-Band]()
| KEY SPECIFICATIONS |
| band |
W-Band |
| bandwith |
4 GHz |
| frequency |
92 - 96 GHz |
| product family |
Waveguide Filter |
| rejection |
≥ 75 dB |
| Product Revision |
A |
| RF SPECIFICATIONS |
| gain ripple |
≤ 0.6 dB |
| input VSWR |
≤ 1.5 : 1 |
| insertion loss |
≤ 1.0 dB |
| ELECTRICAL SPECIFICATIONS |
| impedance |
50 Ω |
| power handling avg |
30W |
| INTERFACE SPECIFICATIONS |
| connectors type |
WR10 |
| ENVIRONMENTAL SPECIFICATIONS |
| indoor status |
Indoor |
| PHYSICAL SPECIFICATIONS |
| product height |
19.95 mm |
| product length |
23.95 mm |
| product width |
19.95 mm |
| KEY SPECIFICATIONS |
| band |
W-Band |
| bandwith |
4 GHz |
| frequency |
92 - 96 GHz |
| product family |
Waveguide Filter |
| rejection |
≥ 50 dB |
| Product Revision |
A |
| RF SPECIFICATIONS |
| gain ripple |
≤ 0.6 dB |
| input VSWR |
≤ 1.5 : 1 |
| insertion loss |
≤ 3.5 dB |
| ELECTRICAL SPECIFICATIONS |
| impedance |
50 Ω |
| power handling avg |
10W |
| ENVIRONMENTAL SPECIFICATIONS |
| indoor status |
Indoor |
| PHYSICAL SPECIFICATIONS |
| product height |
0.2 mm |
| product length |
5.96 mm |
| product width |
1.2 mm |
Please log in to view additional documents.
Please log in to view additional documents.
Please log in to download the files.
| INFORMATION |
| HS Code |
8517799000 |
| Country of Origin |
Made in Thailand |
| Ex Works |
Richmond, BC, Canada |
| ECCN Number |
EAR99 |
| Warranty |
3 years |
| Unit Package Dimensions |
36 mm x 28 mm x 33 mm |
| Unit Package Weight |
0.04 kg |
| COMPLIANCE |
|
Yes |
|
