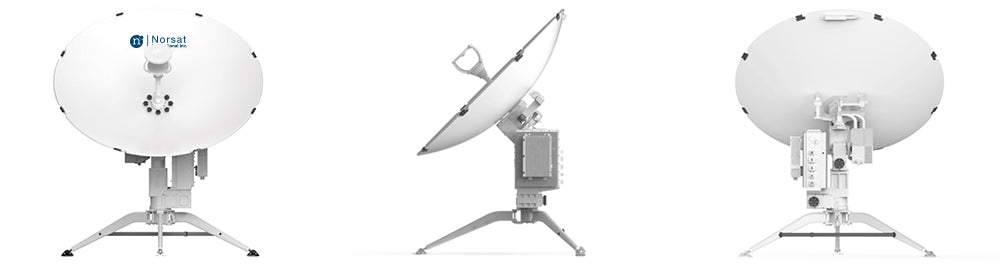

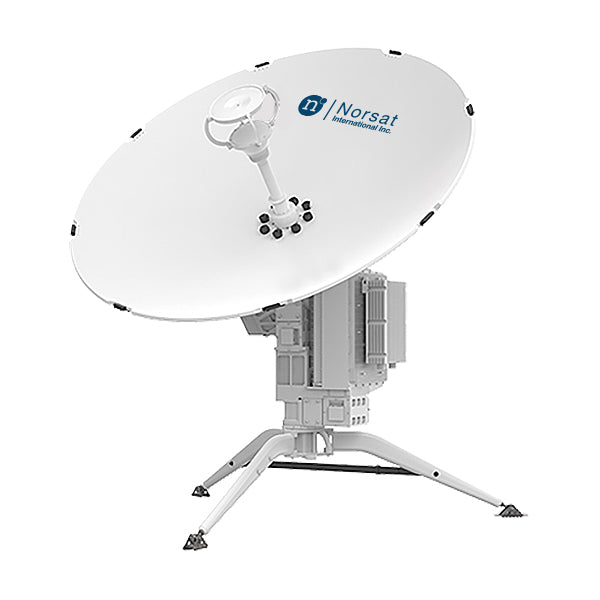

WAYFARER 1.0m Ku-Band Auto Flyaway Antenna - Ring Focus

WAYFARER - Flyaway

Precio habitual
$43,000.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Ex Works: China

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
antenna category Auto Flyaway
band Ku-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Ring Focus
cross polarization isolation ≥ 35dB(axial)
equivalent aperture 1.0m
motion range AZ ± 200°
motion range EL 10° - 90°
motion range POL ± 90°
polarization Linear
sidelobe First sidelobe ≤ -14 dB
RF SPECIFICATIONS
port isolation Rx-Tx 85 dB
port isolation Tx-Rx 40 dB
power capacity 100 W
Rx frequency 10.95 - 12.75 GHz
rx gain ≥ 39.9dBi+20lg(f/12.5GHz)dBi
Rx interface WR75
Rx VSWR ≤ 1.5:1
Tx frequency 13.75 - 14.50 GHz
tx gain ≥ 41.0dBi+20lg(f/14.25GHz)dBi
Tx interface WR75
Tx VSWR ≤ 1.5:1
ENVIRONMENTAL SPECIFICATIONS
humidity 95% (20℃)
IP rating IP 65
temperature operational -40℃ - +60℃
temperature storage -50℃ - +70℃
windspeed operational ≤ 11m/s
windspeed survival ≤ 18m/s
PHYSICAL SPECIFICATIONS
product weight ≤ 26 Kg (excluding BUC, LNB, packaging and accessories)
