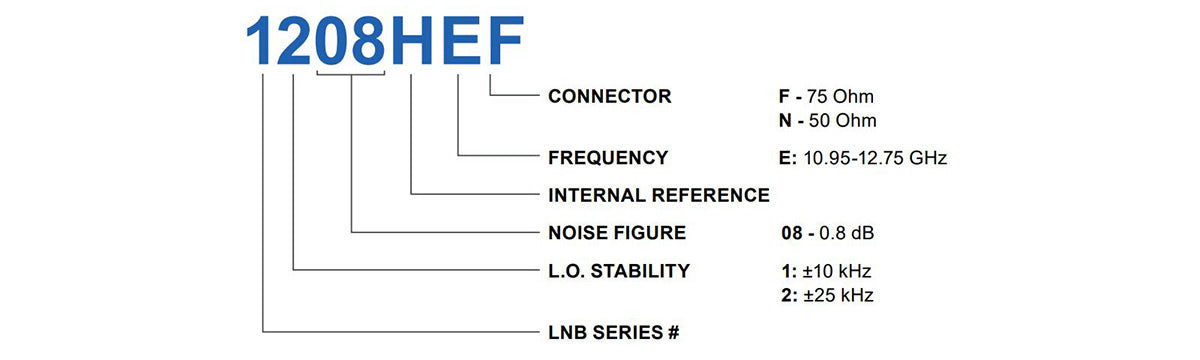

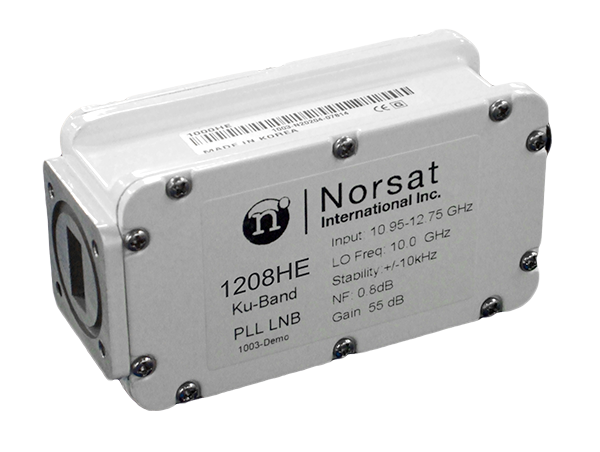

| KEY SPECIFICATIONS |
| band |
Ku-Band |
| input frequency band 1 |
10.95 - 12.75 GHz |
| LO frequency 1 |
10.00 GHz |
| LO stability |
±10 kHz |
| LO type |
PLL |
| noise figure max |
1.0 dB |
| noise figure typ |
0.8 dB |
| number of onboard LOs |
Single-Band |
| output frequency band 1 |
950 - 2750 MHz |
| Product Revision |
B |
| RF SPECIFICATIONS |
| conversion gain max |
65 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| Gain Flatness (over full band) |
≤ 6 dB p-p |
| input VSWR |
2.5 : 1 max. |
| output P1dB |
+ 3 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
-90 dBc/Hz |
| phase noise 10kHz offset max |
-80 dBc/Hz |
| phase noise 1kHz offset max |
-70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
350 mA max. |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
F-Connector |
| RF input connector |
WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |

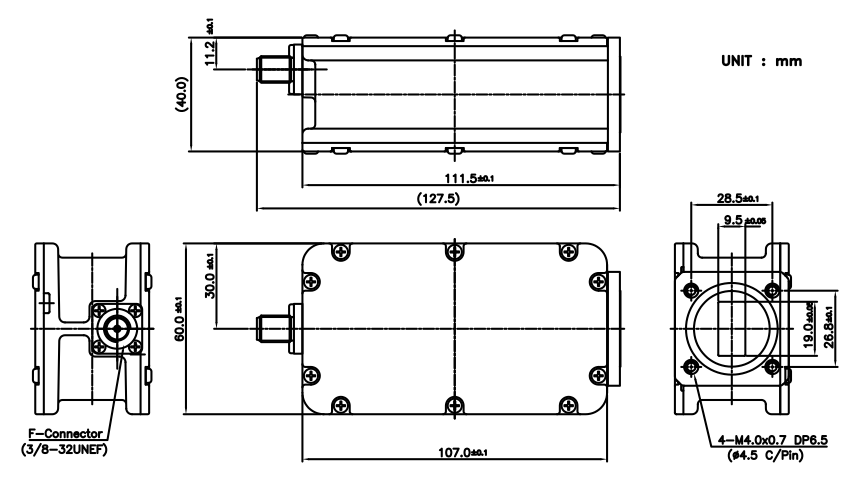

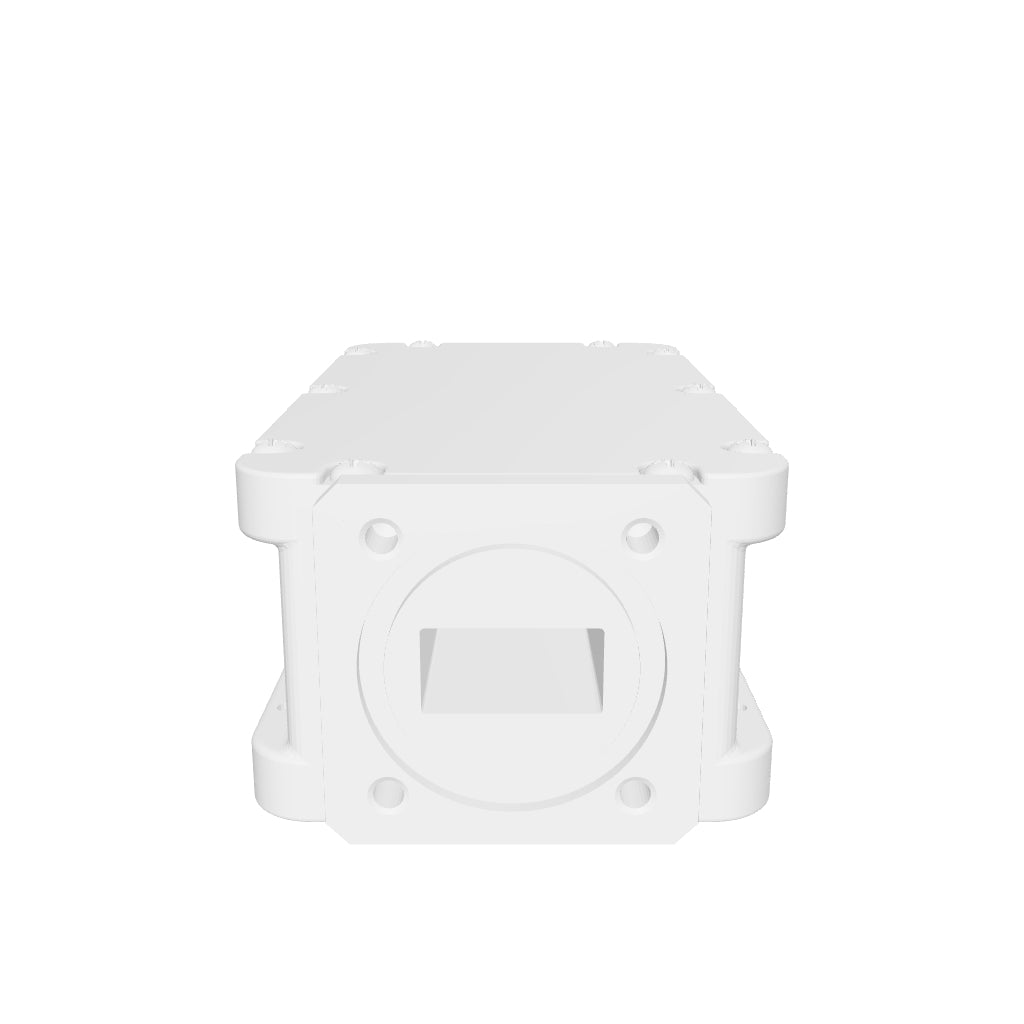

| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
130 x 60 x 42 mm |
| product weight |
0.4 kg |
| KEY SPECIFICATIONS |
| band |
Ku-Band |
| input frequency band 1 |
10.95 - 12.75 GHz |
| LO frequency 1 |
10.00 GHz |
| LO stability |
±10 kHz |
| LO type |
PLL |
| noise figure max |
1.0 dB |
| noise figure typ |
0.8 dB |
| number of onboard LOs |
Single-Band |
| output frequency band 1 |
950 - 2750 MHz |
| Product Revision |
A |
| RF SPECIFICATIONS |
| conversion gain max |
65 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| Gain Flatness (over full band) |
≤ 6 dB p-p |
| input VSWR |
2.5 : 1 max. |
| output P1dB |
+ 3 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
-90 dBc/Hz |
| phase noise 10kHz offset max |
-80 dBc/Hz |
| phase noise 1kHz offset max |
-70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
350 mA max. |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
N-Connector |
| RF input connector |
WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
130 x 60 x 42 mm |
| product weight |
0.4 kg |
| KEY SPECIFICATIONS |
| band |
Ku-Band |
| input frequency band 1 |
10.95 - 12.75 GHz |
| LO frequency 1 |
10.00 GHz |
| LO stability |
±25 kHz |
| LO type |
PLL |
| noise figure max |
1.0 dB |
| noise figure typ |
0.8 dB |
| number of onboard LOs |
Single-Band |
| output frequency band 1 |
950 - 2750 MHz |
| Product Revision |
B |
| RF SPECIFICATIONS |
| conversion gain max |
65 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| Gain Flatness (over full band) |
≤ 6 dB p-p |
| input VSWR |
2.5 : 1 max. |
| output P1dB |
+ 3 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
-90 dBc/Hz |
| phase noise 10kHz offset max |
-80 dBc/Hz |
| phase noise 1kHz offset max |
-70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
350 mA max. |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
F-Connector |
| RF input connector |
WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
130 x 60 x 42 mm |
| product weight |
0.4 kg |
| KEY SPECIFICATIONS |
| band |
Ku-Band |
| input frequency band 1 |
10.95 - 12.75 GHz |
| LO frequency 1 |
10.00 GHz |
| LO stability |
±25 kHz |
| LO type |
PLL |
| noise figure max |
1.0 dB |
| noise figure typ |
0.8 dB |
| number of onboard LOs |
Single-Band |
| output frequency band 1 |
950 - 2750 MHz |
| Product Revision |
A |
| RF SPECIFICATIONS |
| conversion gain max |
65 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| Gain Flatness (over full band) |
≤ 6 dB p-p |
| input VSWR |
2.5 : 1 max. |
| output P1dB |
+ 3 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
-90 dBc/Hz |
| phase noise 10kHz offset max |
-80 dBc/Hz |
| phase noise 1kHz offset max |
-70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
350 mA max. |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
N-Connector |
| RF input connector |
WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
130 x 60 x 42 mm |
| product weight |
0.4 kg |
