Name: 1000 Ku-Band Single Band PLL LNB
Brand: Norsat International Inc.
SKU: 1107HAF
Price: 330.00 USD
Availability: InStock

1107HAF

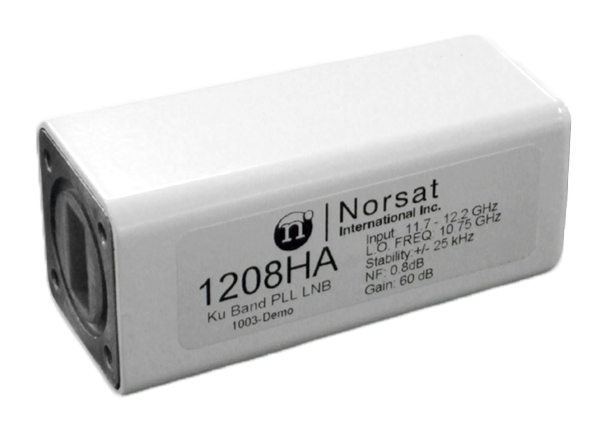

1000 Ku-Band Single Band PLL LNB

1000HA Series

$330.00

Quantity Available: 34

Next Availability: 2 Next Availability: 2 Next Availability: 0 Next Availability: 0 Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 1 - 2 Weeks Next Availability Lead Time: 1 - 2 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41065852534967,"title":"1: ±10 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"1: ±10 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"1107HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"1: ±10 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["1: ±10 kHz","0.7 dB","F: 75 Ohm"],"price":33000,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852567735,"title":"1: ±10 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"1: ±10 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"1107HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"1: ±10 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["1: ±10 kHz","0.7 dB","N: 50 Ohm"],"price":37400,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852600503,"title":"1: ±10 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"1: ±10 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"1108HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"1: ±10 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["1: ±10 kHz","0.8 dB","F: 75 Ohm"],"price":31900,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852633271,"title":"1: ±10 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"1: ±10 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"1108HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"1: ±10 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["1: ±10 kHz","0.8 dB","N: 50 Ohm"],"price":36300,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852666039,"title":"1: ±10 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"1: ±10 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"1109HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"1: ±10 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["1: ±10 kHz","0.9 dB","F: 75 Ohm"],"price":30800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852698807,"title":"1: ±10 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"1: ±10 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"1109HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 1: ±10 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"1: ±10 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["1: ±10 kHz","0.9 dB","N: 50 Ohm"],"price":35200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852731575,"title":"2: ±25 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"2: ±25 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"1207HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"2: ±25 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["2: ±25 kHz","0.7 dB","F: 75 Ohm"],"price":31900,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852764343,"title":"2: ±25 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"2: ±25 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"1207HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"2: ±25 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["2: ±25 kHz","0.7 dB","N: 50 Ohm"],"price":36300,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852797111,"title":"2: ±25 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"2: ±25 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"1208HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"2: ±25 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["2: ±25 kHz","0.8 dB","F: 75 Ohm"],"price":30800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852829879,"title":"2: ±25 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"2: ±25 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"1208HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"2: ±25 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["2: ±25 kHz","0.8 dB","N: 50 Ohm"],"price":35200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852862647,"title":"2: ±25 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"2: ±25 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"1209HAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"2: ±25 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["2: ±25 kHz","0.9 dB","F: 75 Ohm"],"price":29700,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41065852895415,"title":"2: ±25 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"2: ±25 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"1209HAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band PLL LNB - 2: ±25 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"2: ±25 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["2: ±25 kHz","0.9 dB","N: 50 Ohm"],"price":34100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	11.70 - 12.20 GHz
LO frequency 1	10.75 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	0.8 dB
noise figure typ	0.7 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	F

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-75 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

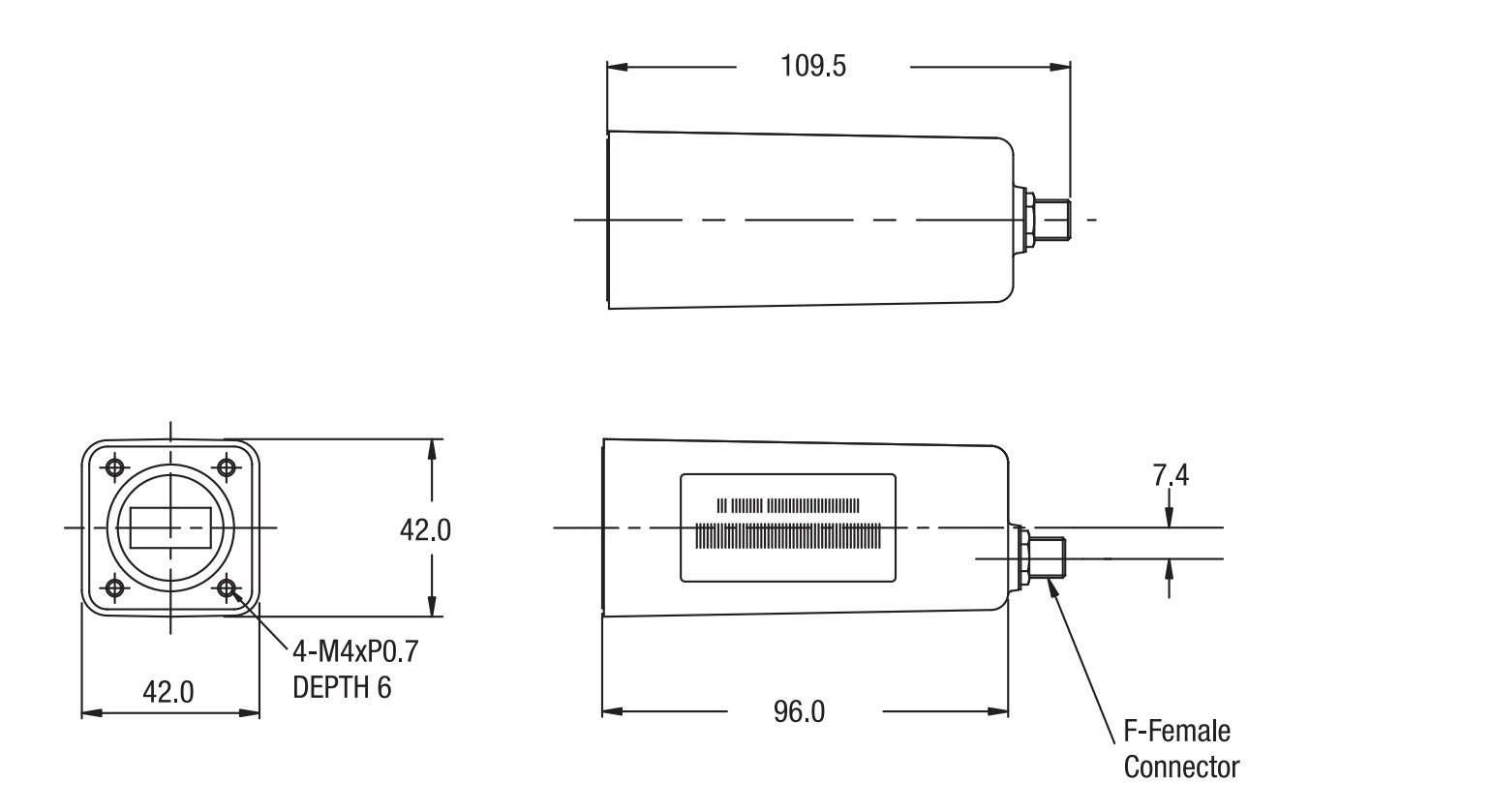

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	110 x 42 x 42 mm
product weight	0.3 kg

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	140 x 50 x 50 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	Yes
