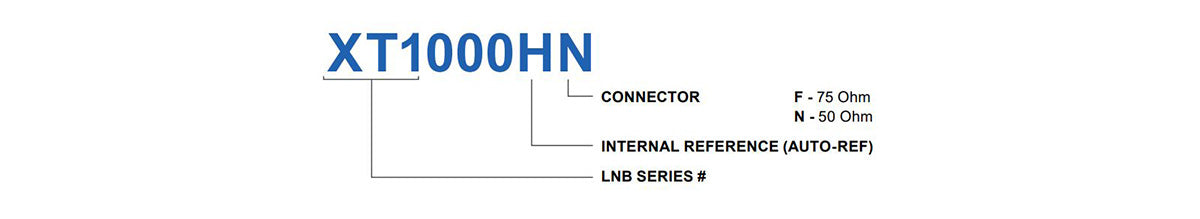

XT1000HN-EOL

1000 X-Band Auto-Reference Single-Band PLL LNB

XT1000H Series

$1,100.00 A 50% discount is applied to the MSRP
/
Quantity Available: 1
Next Availability: 0
Next Availability Lead Time: In Stock
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

Only 1 items in stock!



AUTO-REF: Automatically switches to Internal PLL in the absence of an EXT REF 10MHz signal

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard X-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.

KEY SPECIFICATIONS
band X-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 7.25 - 7.75 GHz
LO frequency 1 6.30 GHz
LO stability ±10 kHz
LO type Auto-reference
noise figure max 0.7 dB
noise figure typ 0.6 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 56 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 2.0 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 270 mA
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-112
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
IP rating IP 67
temperature operational -40 to +60°C

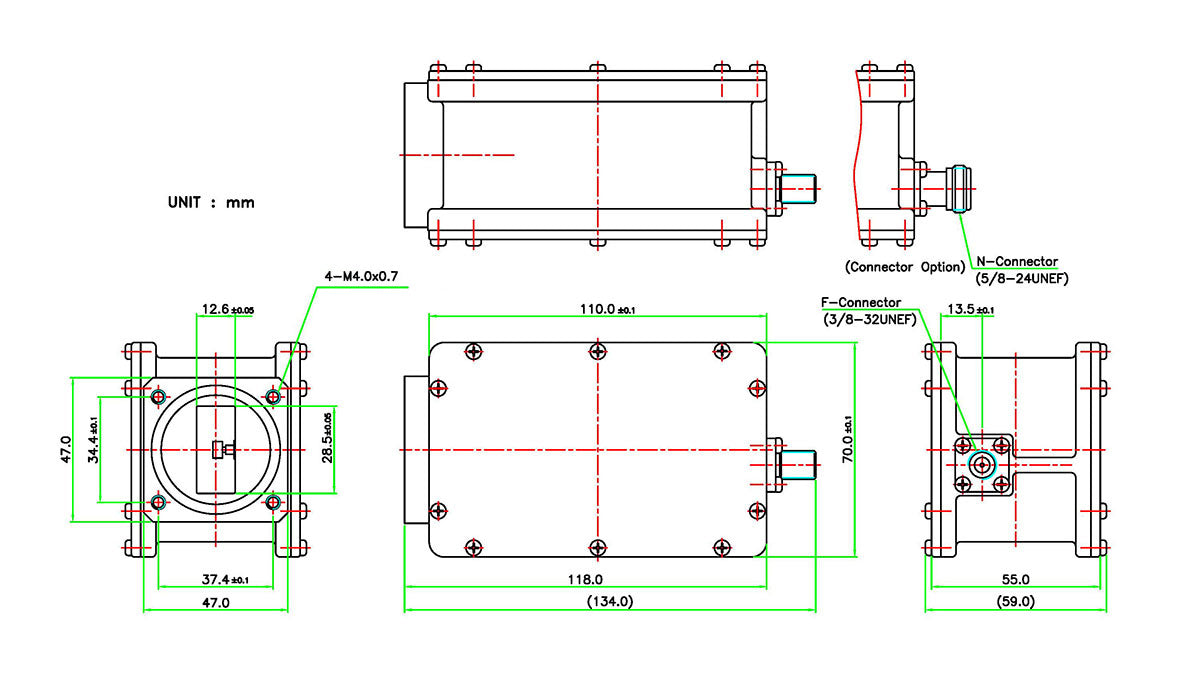

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 134 x 70 x 59 mm
product weight 0.6 kg
