Name: 3000X C-Band Single-Band PLL LNB
Brand: Norsat International Inc.
SKU: 3020XF
Price: 553.00 USD
Availability: InStock

3020XF

3000X C-Band Single-Band PLL LNB

3000X Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

Your selections will add an additional charge of

View Family Datasheet

[{"id":41050084737207,"title":"20 K \/ F: 75 Ohm","option1":"20 K","option2":"F: 75 Ohm","option3":null,"sku":"3020XF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 20 K \/ F: 75 Ohm","public_title":"20 K \/ F: 75 Ohm","options":["20 K","F: 75 Ohm"],"price":55300,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"84737207","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050084769975,"title":"20 K \/ N: 50 Ohm","option1":"20 K","option2":"N: 50 Ohm","option3":null,"sku":"3020XN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 20 K \/ N: 50 Ohm","public_title":"20 K \/ N: 50 Ohm","options":["20 K","N: 50 Ohm"],"price":59700,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"84769975","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050092503223,"title":"25 K \/ F: 75 Ohm","option1":"25 K","option2":"F: 75 Ohm","option3":null,"sku":"3025XF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 25 K \/ F: 75 Ohm","public_title":"25 K \/ F: 75 Ohm","options":["25 K","F: 75 Ohm"],"price":53700,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"92503223","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050092535991,"title":"25 K \/ N: 50 Ohm","option1":"25 K","option2":"N: 50 Ohm","option3":null,"sku":"3025XN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 25 K \/ N: 50 Ohm","public_title":"25 K \/ N: 50 Ohm","options":["25 K","N: 50 Ohm"],"price":57900,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"92535991","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050092568759,"title":"30 K \/ F: 75 Ohm","option1":"30 K","option2":"F: 75 Ohm","option3":null,"sku":"3030XF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 30 K \/ F: 75 Ohm","public_title":"30 K \/ F: 75 Ohm","options":["30 K","F: 75 Ohm"],"price":52200,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"92568759","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050092601527,"title":"30 K \/ N: 50 Ohm","option1":"30 K","option2":"N: 50 Ohm","option3":null,"sku":"3030XN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000X C-Band Single-Band PLL LNB - 30 K \/ N: 50 Ohm","public_title":"30 K \/ N: 50 Ohm","options":["30 K","N: 50 Ohm"],"price":56100,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"92601527","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	20K
LO type	EXT
noise figure max	25K
noise figure typ	20K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

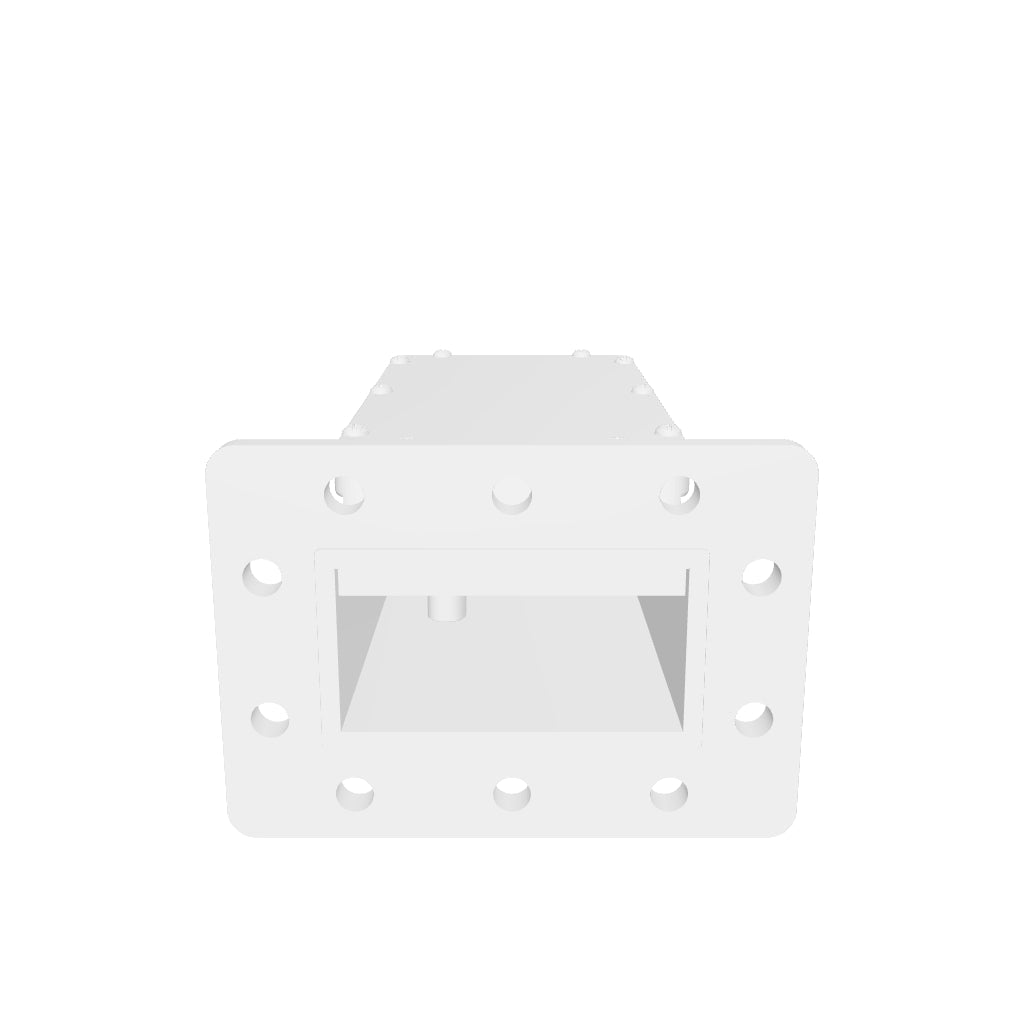

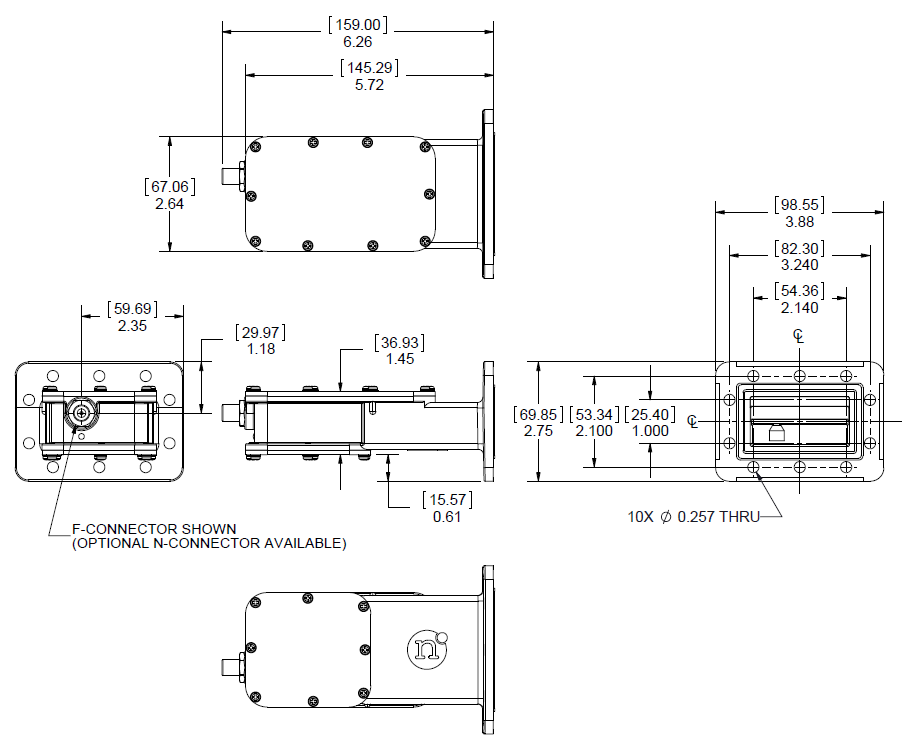

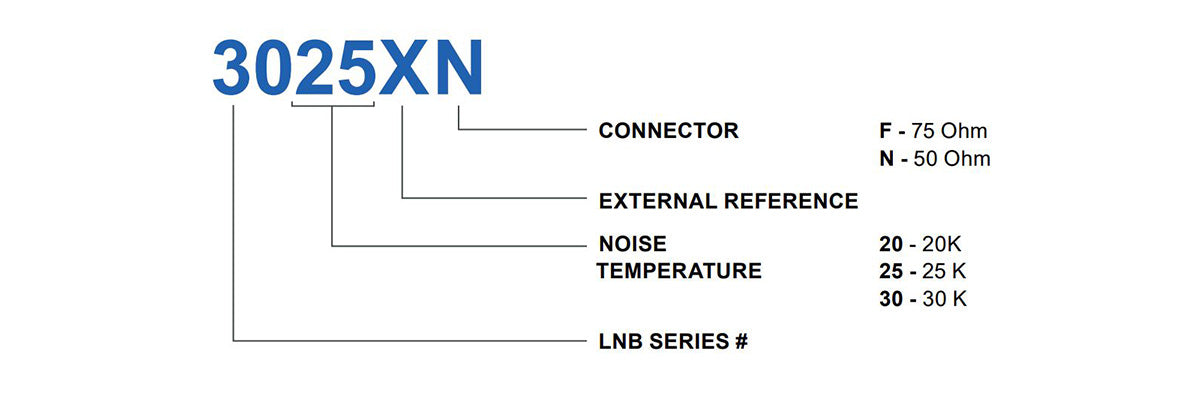

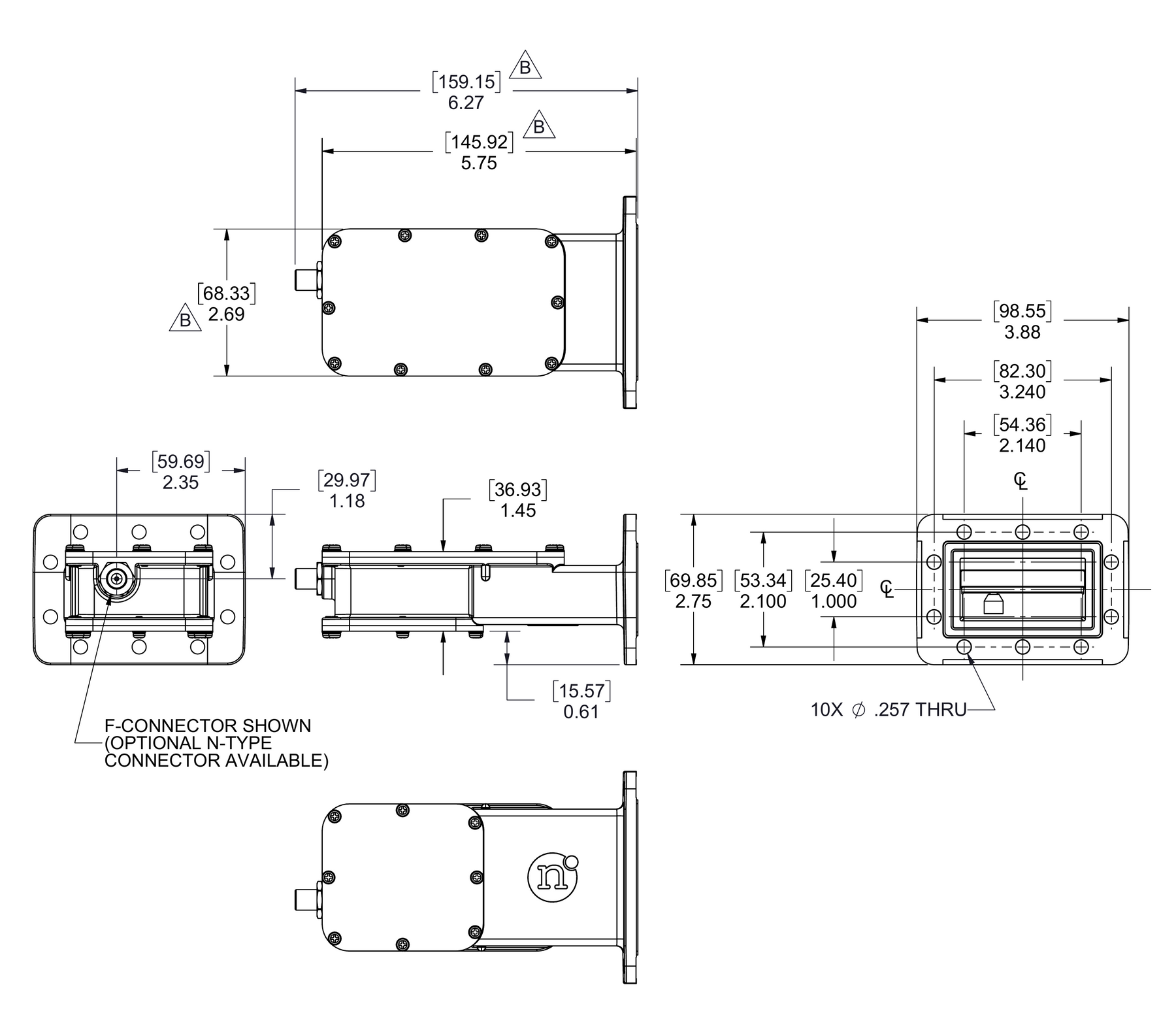

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	25K
noise figure typ	20K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	28K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	28K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	32K
noise figure typ	30K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	32K
noise figure typ	30K
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 6 dB p-p max.
input VSWR	2.2 : 1 max.
output P1dB	+ 9 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	72 mm
product length	160 mm
product weight	0.5 kg
product width	100 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 mm x 115 mm x 80 mm
Unit Package Weight	0.68 kg
