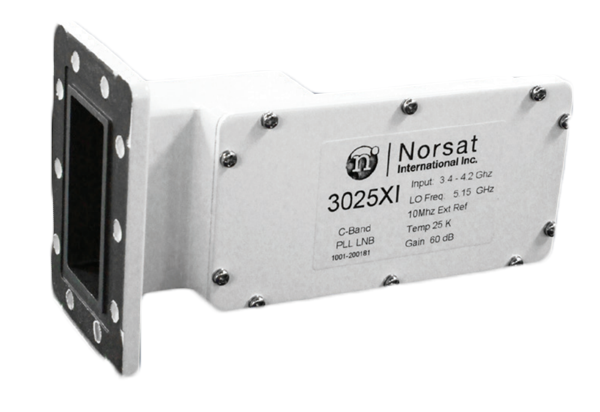

3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB
3000XI C-Band Single-Band EXT REF LNB

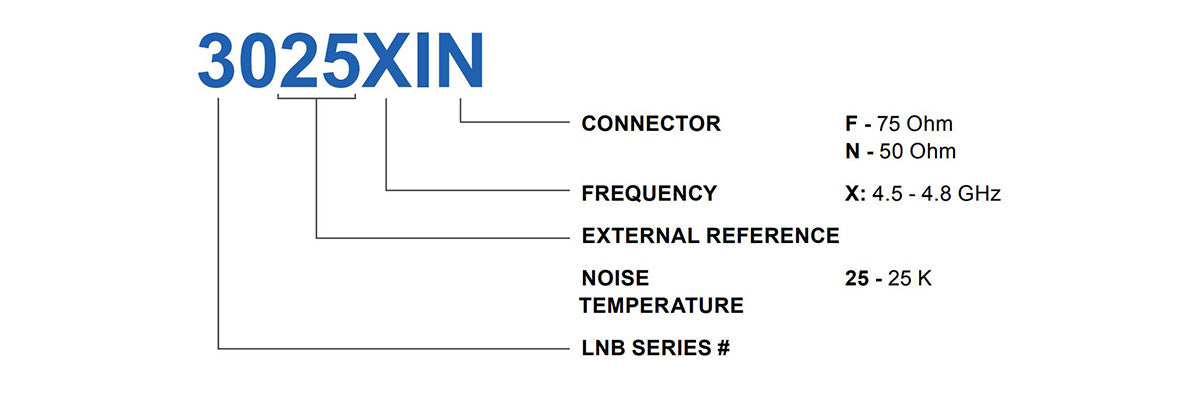

3025XIF

3000XI C-Band Single-Band EXT REF LNB

3000XI Series

$495.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

Only 0 items in stock!



Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 3000XI Series.

KEY SPECIFICATIONS
band C-Band
external ref freq 10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1 4.50 - 4.80 GHz
LO frequency 1 5.00 GHz
LO stability Ext Ref
LO type EXT
noise figure max 30K
noise figure typ 25K
number of onboard LOs Single-Band
output frequency band 1 960 - 1260 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 65 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 3 dBm min.
output VSWR 2.2 : 1 max.
phase noise 100kHz offset max Depends on External Reference
phase noise 10kHz offset max Depends on External Reference
phase noise 1kHz offset max Depends on External Reference
ELECTRICAL SPECIFICATIONS
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C
PHYSICAL SPECIFICATIONS

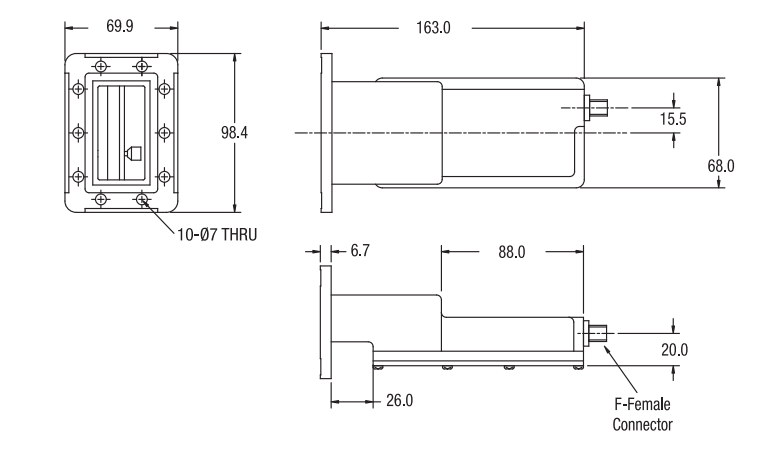

product dimensions (LxWxH) 180 x 100 x 70 mm
product weight 0.575 kg
