KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.70 - 12.75 GHz
noise figure
0.8 dB max. at room temp.
Product Revision
1.0
RF SPECIFICATIONS
conversion gain max
60 dB
conversion gain min
50 dB
conversion gain typ
55 dB
Gain Flatness (over full band)
≤ 4 dB p-p
input VSWR
2.0 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input power
MS3112E10-6P
power requirements
+15 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector
WR-75 waveguide grooved
RF output connector
N: 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
125 x 60 x 43 mm
product weight
0.45 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.70 - 12.75 GHz
noise figure
0.8 dB max. at room temp.
Product Revision
1
RF SPECIFICATIONS
conversion gain max
60 dB
conversion gain min
50 dB
conversion gain typ
55 dB
Gain Flatness (over full band)
≤ 4 dB p-p
input VSWR
2.0 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input power
MS3112E10-6P
power requirements
+15 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector
WR-75 waveguide grooved
RF output connector
S: SMA 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C

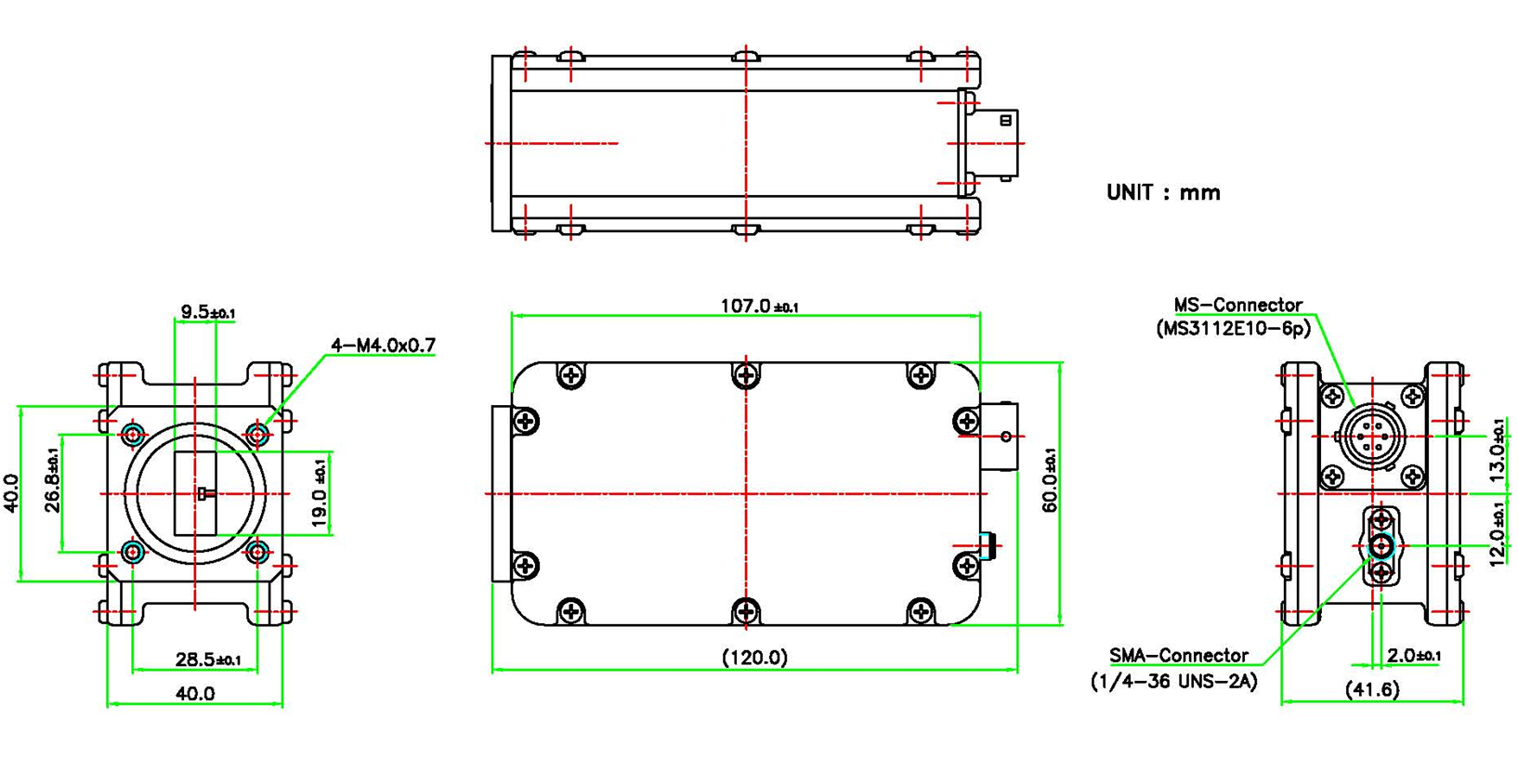

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
125 x 60 x 43 mm
product weight
0.45 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
150 x 96 x 65 mm
Unit Package Weight
0.46 kg
COMPLIANCE
Yes
Yes
Yes
