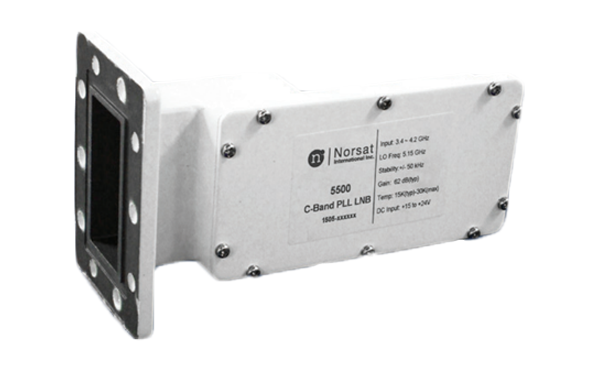

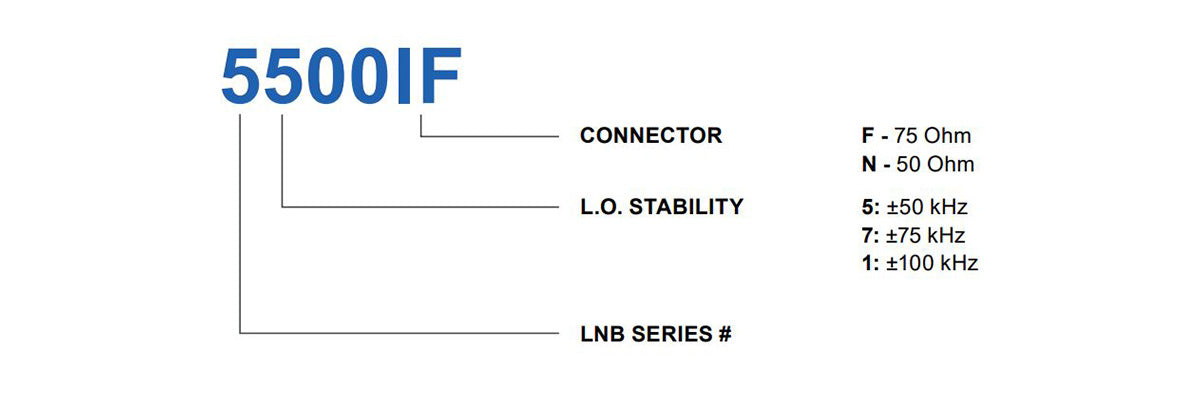

KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±50 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±50 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±75 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±75 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±100 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
4.50 - 4.80 GHz
LO frequency 1
5.95 GHz
LO stability
±100 kHz
LO type
PLL
noise figure max
30K
noise figure typ
15K
number of onboard LOs
Single-Band
output frequency band 1
1150 - 1450 MHz
Product Revision
A
RF SPECIFICATIONS
conversion gain max
70 dB
conversion gain min
55 dB
conversion gain typ
62 dB
Gain Flatness (over full band)
≤ 5 dB p-p max.
input VSWR
2.5 : 1 max.
output P1dB
+ 10 dBm min.
output VSWR
2.5 : 1 max.
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
250 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
179 x 99 x 70 mm
product weight
0.575 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
190 x 115 x 77 mm
Unit Package Weight
0.66 kg
COMPLIANCE
Yes
Yes
Yes
