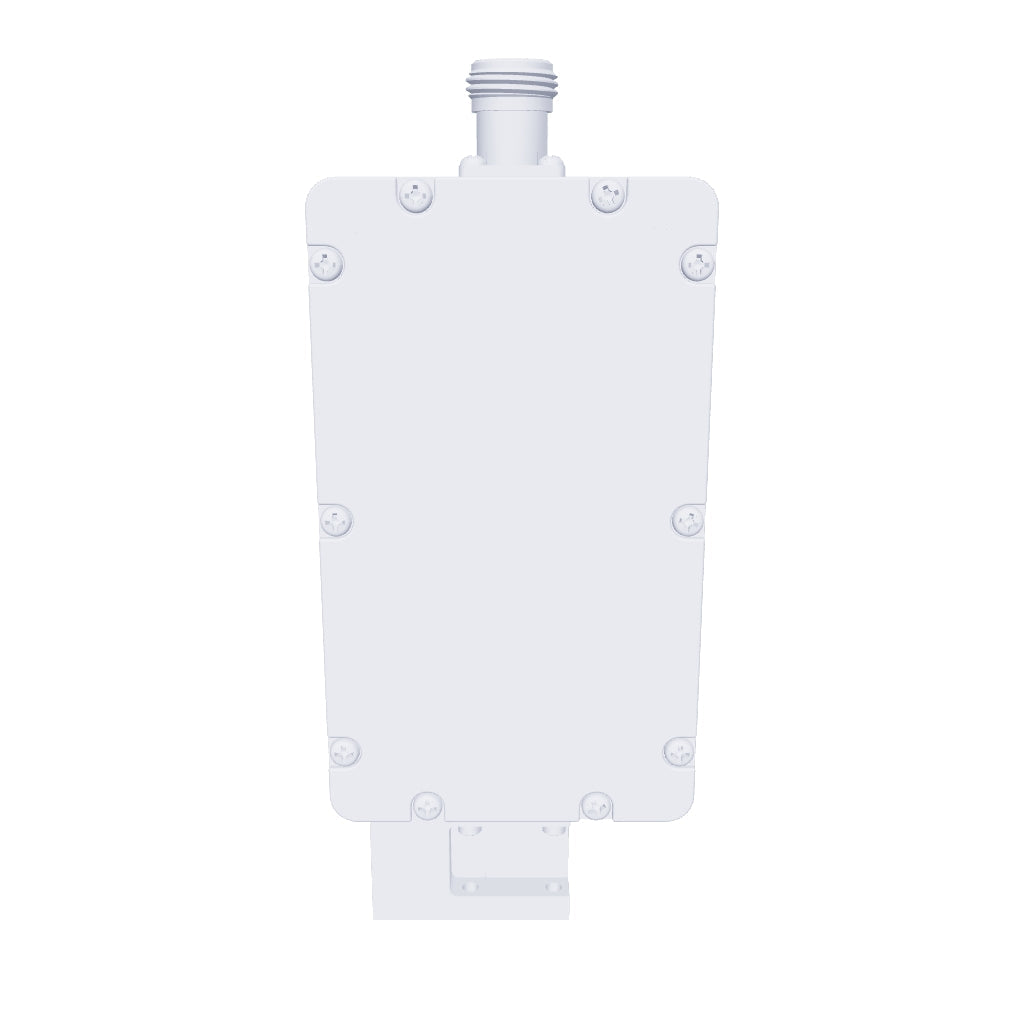

| KEY SPECIFICATIONS |
| band |
Ka-Band |
| external ref freq |
10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 |
17.20 - 18.20 GHz |
| input frequency band 2 |
18.20 - 19.20 GHz |
| input frequency band 3 |
19.20 - 20.20 GHz |
| input frequency band 4 |
20.20 - 21.20 GHz |
| input frequency band 5 |
21.20 - 22.20 GHz |
| LO frequency 1 |
16.25 GHz |
| LO frequency 2 |
17.25 GHz |
| LO frequency 3 |
18.25 GHz |
| LO frequency 4 |
19.25 GHz |
| LO frequency 5 |
20.25 GHz |
| LO stability |
Ext Ref |
| LO type |
EXT |
| noise figure max |
2.9 dB |
| noise figure typ |
2.5 dB |
| number of onboard LOs |
Five-Band |
| output frequency band 1 |
950 - 1950 MHz |
| output frequency band 2 |
950 - 1950 MHz |
| output frequency band 3 |
950 - 1950 MHz |
| output frequency band 4 |
950 - 1950 MHz |
| output frequency band 5 |
L-Band: 950 - 1950 MHz |
| Product Revision |
D |
| RF SPECIFICATIONS |
| control signal 1 |
13V / No Tone |
| control signal 2 |
13V / 22kHz Tone |
| control signal 3 |
18V / No Tone |
| control signal 4 |
18V / 22kHz Tone |
| control signal 5 |
22V / No Tone |
| conversion gain max |
65 dB |
| conversion gain min |
55 dB |
| conversion gain typ |
60 dB |
| Gain Flatness (over full band) |
≤ 4 dB p-p max. |
| input VSWR |
3.5 : 1 max. |
| output P1dB |
+ 10 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
Depends on External Reference |
| phase noise 10kHz offset max |
Depends on External Reference |
| phase noise 1kHz offset max |
Depends on External Reference |
| phase noise 1MHz offset max |
Depends on External Reference |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
500 mA |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
N-Connector |
| isolator |
No Isolator |
| RF input connector |
WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
137 x 67 x 39 mm |
| product weight |
0.55 kg |
| KEY SPECIFICATIONS |
| band |
Ka-Band |
| external ref freq |
10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 |
17.20 - 18.20 GHz |
| input frequency band 2 |
18.20 - 19.20 GHz |
| input frequency band 3 |
19.20 - 20.20 GHz |
| input frequency band 4 |
20.20 - 21.20 GHz |
| input frequency band 5 |
21.20 - 22.20 GHz |
| LO frequency 1 |
16.25 GHz |
| LO frequency 2 |
17.25 GHz |
| LO frequency 3 |
18.25 GHz |
| LO frequency 4 |
19.25 GHz |
| LO frequency 5 |
20.25 GHz |
| LO stability |
Ext Ref |
| LO type |
EXT |
| noise figure max |
2.9 dB |
| noise figure typ |
2.5 dB |
| number of onboard LOs |
Five-Band |
| output frequency band 1 |
950 - 1950 MHz |
| output frequency band 2 |
950 - 1950 MHz |
| output frequency band 3 |
950 - 1950 MHz |
| output frequency band 4 |
950 - 1950 MHz |
| output frequency band 5 |
L-Band: 950 - 1950 MHz |
| Product Revision |
D |
| RF SPECIFICATIONS |
| control signal 1 |
13V / No Tone |
| control signal 2 |
13V / 22kHz Tone |
| control signal 3 |
18V / No Tone |
| control signal 4 |
18V / 22kHz Tone |
| control signal 5 |
22V / No Tone |
| conversion gain max |
65 dB |
| conversion gain min |
55 dB |
| conversion gain typ |
60 dB |
| Gain Flatness (over full band) |
≤ 4 dB p-p max. |
| input VSWR |
3.5 : 1 max. |
| output P1dB |
+ 10 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
Depends on External Reference |
| phase noise 10kHz offset max |
Depends on External Reference |
| phase noise 1kHz offset max |
Depends on External Reference |
| phase noise 1MHz offset max |
Depends on External Reference |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
500 mA |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
F-Connector |
| isolator |
No Isolator |
| RF input connector |
WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
137 x 67 x 39 mm |
| product weight |
0.55 kg |
| KEY SPECIFICATIONS |
| band |
Ka-Band |
| external ref freq |
10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 |
17.20 - 18.20 GHz |
| input frequency band 2 |
18.20 - 19.20 GHz |
| input frequency band 3 |
19.20 - 20.20 GHz |
| input frequency band 4 |
20.20 - 21.20 GHz |
| input frequency band 5 |
21.20 - 22.20 GHz |
| LO frequency 1 |
16.25 GHz |
| LO frequency 2 |
17.25 GHz |
| LO frequency 3 |
18.25 GHz |
| LO frequency 4 |
19.25 GHz |
| LO frequency 5 |
20.25 GHz |
| LO stability |
Ext Ref |
| LO type |
EXT |
| noise figure max |
3.0 dB |
| noise figure typ |
2.6 dB |
| number of onboard LOs |
Five-Band |
| output frequency band 1 |
950 - 1950 MHz |
| output frequency band 2 |
950 - 1950 MHz |
| output frequency band 3 |
950 - 1950 MHz |
| output frequency band 4 |
950 - 1950 MHz |
| output frequency band 5 |
L-Band: 950 - 1950 MHz |
| Product Revision |
E |
| RF SPECIFICATIONS |
| control signal 1 |
13V / No Tone |
| control signal 2 |
13V / 22kHz Tone |
| control signal 3 |
18V / No Tone |
| control signal 4 |
18V / 22kHz Tone |
| control signal 5 |
22V / No Tone |
| conversion gain max |
65 dB |
| conversion gain min |
55 dB |
| conversion gain typ |
60 dB |
| Gain Flatness (over full band) |
≤ 4 dB p-p max. |
| input VSWR |
1.5 : 1 max. |
| output P1dB |
+ 10 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
Depends on External Reference |
| phase noise 10kHz offset max |
Depends on External Reference |
| phase noise 1kHz offset max |
Depends on External Reference |
| phase noise 1MHz offset max |
Depends on External Reference |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
500 mA |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
N-Connector |
| isolator |
With Isolator |
| RF input connector |
WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
156 x 67 x 39 mm |
| product weight |
0.55 kg |
| KEY SPECIFICATIONS |
| band |
Ka-Band |
| external ref freq |
10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 |
17.20 - 18.20 GHz |
| input frequency band 2 |
18.20 - 19.20 GHz |
| input frequency band 3 |
19.20 - 20.20 GHz |
| input frequency band 4 |
20.20 - 21.20 GHz |
| input frequency band 5 |
21.20 - 22.20 GHz |
| LO frequency 1 |
16.25 GHz |
| LO frequency 2 |
17.25 GHz |
| LO frequency 3 |
18.25 GHz |
| LO frequency 4 |
19.25 GHz |
| LO frequency 5 |
20.25 GHz |
| LO stability |
Ext Ref |
| LO type |
EXT |
| noise figure max |
3.0 dB |
| noise figure typ |
2.6 dB |
| number of onboard LOs |
Five-Band |
| output frequency band 1 |
950 - 1950 MHz |
| output frequency band 2 |
950 - 1950 MHz |
| output frequency band 3 |
950 - 1950 MHz |
| output frequency band 4 |
950 - 1950 MHz |
| output frequency band 5 |
L-Band: 950 - 1950 MHz |
| Product Revision |
D |
| RF SPECIFICATIONS |
| control signal 1 |
13V / No Tone |
| control signal 2 |
13V / 22kHz Tone |
| control signal 3 |
18V / No Tone |
| control signal 4 |
18V / 22kHz Tone |
| control signal 5 |
22V / No Tone |
| conversion gain max |
65 dB |
| conversion gain min |
55 dB |
| conversion gain typ |
60 dB |
| Gain Flatness (over full band) |
≤ 4 dB p-p max. |
| input VSWR |
1.5 : 1 max. |
| output P1dB |
+ 10 dBm min. |
| output VSWR |
2.2 : 1 max. |
| phase noise 100kHz offset max |
Depends on External Reference |
| phase noise 10kHz offset max |
Depends on External Reference |
| phase noise 1kHz offset max |
Depends on External Reference |
| phase noise 1MHz offset max |
Depends on External Reference |
| ELECTRICAL SPECIFICATIONS |
| current consumption |
500 mA |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
F-Connector |
| isolator |
With Isolator |
| RF input connector |
WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS |
| IP rating |
IP 67 |
| temperature operational |
-40 to +60°C |
| temperature storage |
-40 to +80°C |
| PHYSICAL SPECIFICATIONS |
| product dimensions (LxWxH) |
156 x 67 x 39 mm |
| product weight |
0.55 kg |
| INFORMATION |
| HS Code |
8517690000 |
| Country of Origin |
Made in Korea |
| Ex Works |
Richmond, BC, Canada |
| ECCN Number |
EAR99 |
| Unit Package Dimensions |
145 x 95 x 65 mm |
| Unit Package Weight |
0.55 kg |
| COMPLIANCE |
|
Yes |
|
Yes |
|
Yes |
