Name: 9000 Ka-Band Triple Band LNB
Brand: Norsat International Inc.
SKU: 9200HTABCN
Price: 2112.00 USD
Availability: InStock

9200HTABCN

9000 Ka-Band Triple Band LNB

9000HT Series

$2,112.00

Quantity Available: 0

Next Availability: 0 Next Availability: 0 Next Availability: 0 Next Availability: 0 Next Availability: 0 Next Availability: 0 Next Availability: 0 Next Availability: 0

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

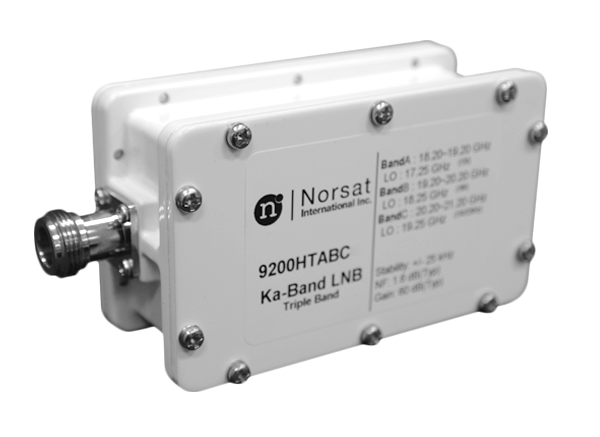

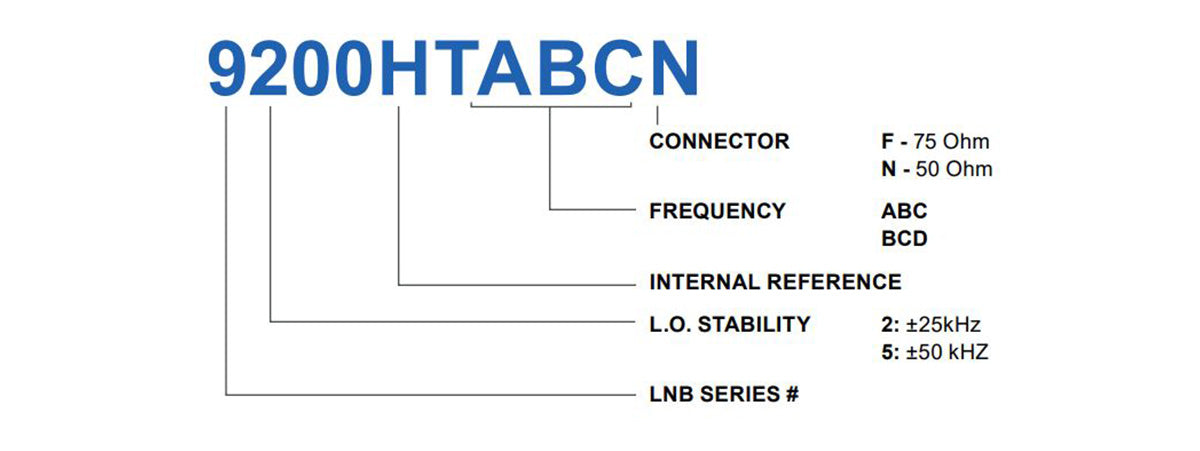

[{"id":41058704621751,"title":"2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","option1":"2: ±25kHz","option2":"ABC: 18.20 - 21.20 GHz","option3":"N: 50 Ohm","sku":"9200HTABCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","public_title":"2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","options":["2: ±25kHz","ABC: 18.20 - 21.20 GHz","N: 50 Ohm"],"price":211200,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704654519,"title":"2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","option1":"2: ±25kHz","option2":"ABC: 18.20 - 21.20 GHz","option3":"F: 75 Ohm","sku":"9200HTABCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","public_title":"2: ±25kHz \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","options":["2: ±25kHz","ABC: 18.20 - 21.20 GHz","F: 75 Ohm"],"price":211200,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704687287,"title":"2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","option1":"2: ±25kHz","option2":"BCD: 19.20 - 22.20 GHz","option3":"N: 50 Ohm","sku":"9200HTBCDN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","public_title":"2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","options":["2: ±25kHz","BCD: 19.20 - 22.20 GHz","N: 50 Ohm"],"price":211200,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704720055,"title":"2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","option1":"2: ±25kHz","option2":"BCD: 19.20 - 22.20 GHz","option3":"F: 75 Ohm","sku":"9200HTBCDF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","public_title":"2: ±25kHz \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","options":["2: ±25kHz","BCD: 19.20 - 22.20 GHz","F: 75 Ohm"],"price":211200,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704752823,"title":"5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","option1":"5: ±50 kHZ","option2":"ABC: 18.20 - 21.20 GHz","option3":"N: 50 Ohm","sku":"9500HTABCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","public_title":"5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","options":["5: ±50 kHZ","ABC: 18.20 - 21.20 GHz","N: 50 Ohm"],"price":200000,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704785591,"title":"5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","option1":"5: ±50 kHZ","option2":"ABC: 18.20 - 21.20 GHz","option3":"F: 75 Ohm","sku":"9500HTABCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","public_title":"5: ±50 kHZ \/ ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","options":["5: ±50 kHZ","ABC: 18.20 - 21.20 GHz","F: 75 Ohm"],"price":200000,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704818359,"title":"5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","option1":"5: ±50 kHZ","option2":"BCD: 19.20 - 22.20 GHz","option3":"N: 50 Ohm","sku":"9500HTBCDN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","public_title":"5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","options":["5: ±50 kHZ","BCD: 19.20 - 22.20 GHz","N: 50 Ohm"],"price":200000,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058704851127,"title":"5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","option1":"5: ±50 kHZ","option2":"BCD: 19.20 - 22.20 GHz","option3":"F: 75 Ohm","sku":"9500HTBCDF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Band Triple Band LNB - 5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","public_title":"5: ±50 kHZ \/ BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","options":["5: ±50 kHZ","BCD: 19.20 - 22.20 GHz","F: 75 Ohm"],"price":200000,"weight":460,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	18.20 - 19.20 GHz
input frequency band 2	19.20 - 20.20 GHz
input frequency band 3	20.20 - 21.20 GHz
LO frequency 1	17.25 GHz
LO frequency 2	18.25 GHz
LO frequency 3	19.25 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Triple-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	18V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector

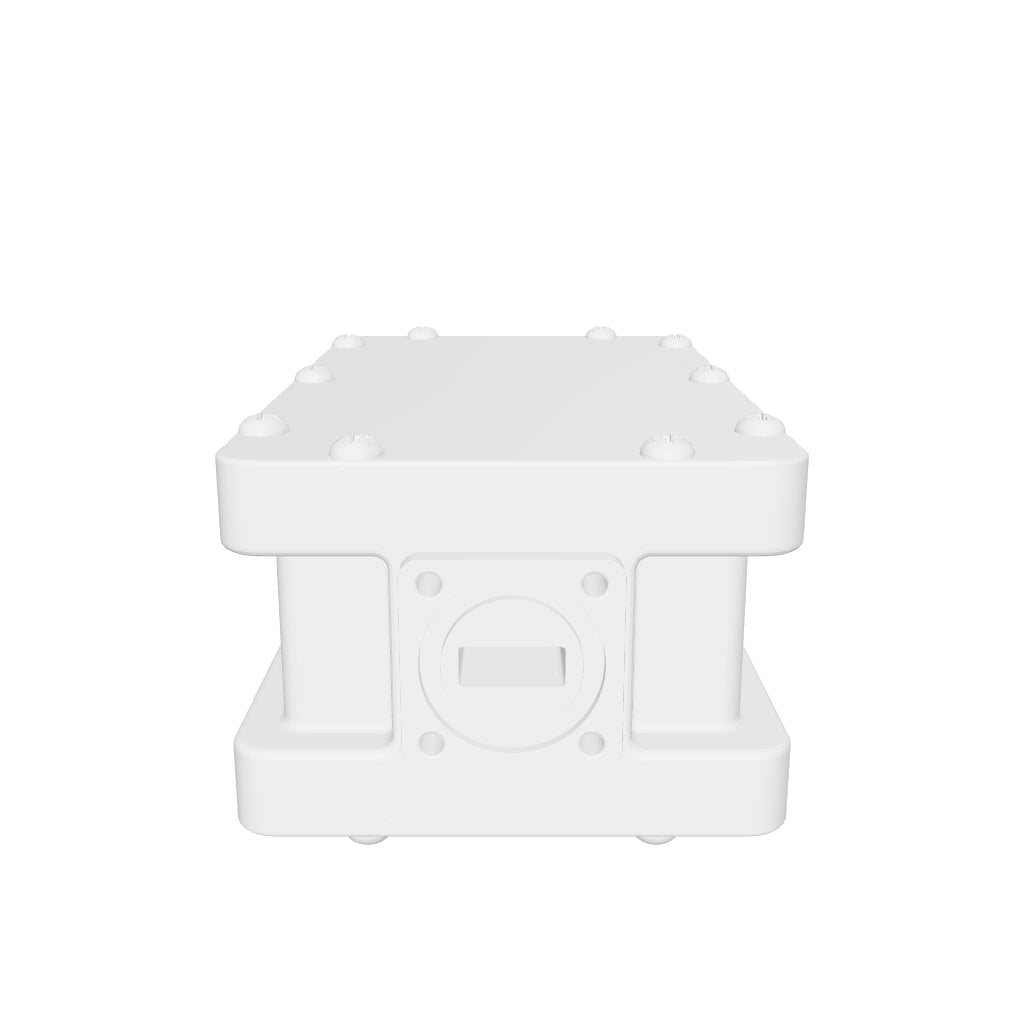

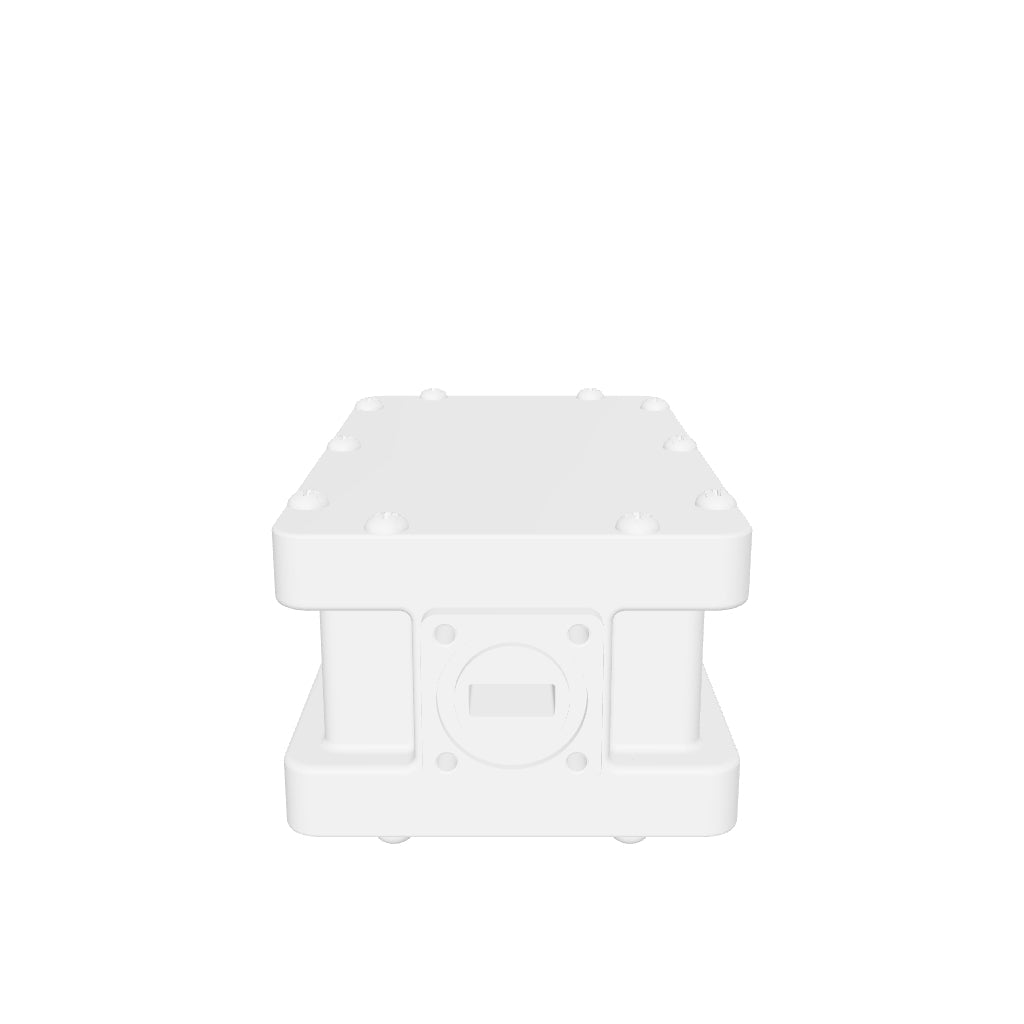

RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	0.42 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	0.46 kg
COMPLIANCE
	Yes
	Yes
	Yes

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

Language
