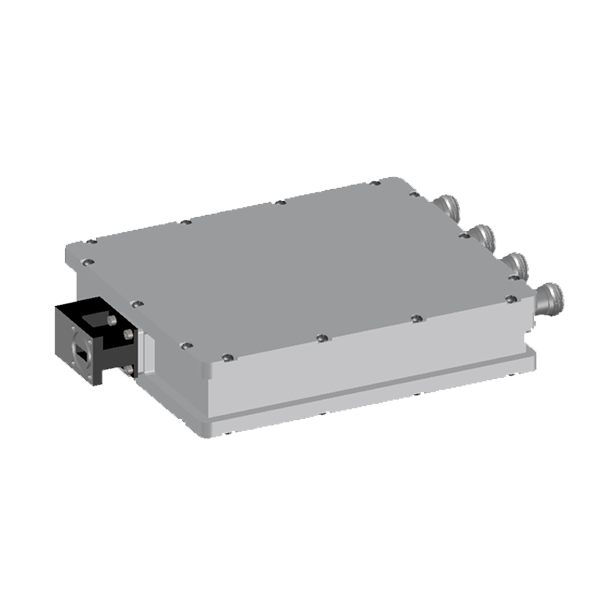

Name: 9000 Ka-Simultaneous Quad Band PLL LNB
Brand: Norsat International Inc.
SKU: 9000SHUAF
Price: 7341.18 USD
Availability: InStock

9000SHUAF

9000 Ka-Simultaneous Quad Band PLL LNB

9000 Series

$7,341.18

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

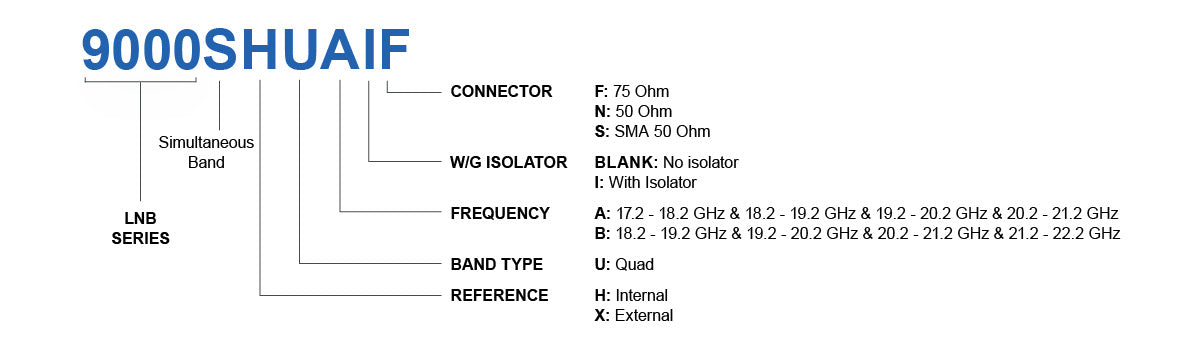

[{"id":42754264727735,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9000SHUAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","No","F: 75 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264760503,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9000SHUAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","No","N: 50 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264793271,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ SMA: 50 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"No","option3":"SMA: 50 Ohm","sku":"9000SHUAS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ SMA: 50 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ No \/ SMA: 50 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","No","SMA: 50 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264826039,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9000SHUAIF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","Yes","F: 75 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264858807,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9000SHUAIN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","Yes","N: 50 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264891575,"title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ SMA: 50 Ohm","option1":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","option2":"Yes","option3":"SMA: 50 Ohm","sku":"9000SHUAIS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ SMA: 50 Ohm","public_title":"A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz \/ Yes \/ SMA: 50 Ohm","options":["A: 17.2 - 18.2 GHz | 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz","Yes","SMA: 50 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264924343,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9000SHUBF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","No","F: 75 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264957111,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9000SHUBN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","No","N: 50 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754264989879,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ SMA: 50 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"No","option3":"SMA: 50 Ohm","sku":"9000SHUBS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ SMA: 50 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ No \/ SMA: 50 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","No","SMA: 50 Ohm"],"price":734118,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754265022647,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9000SHUBIF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","Yes","F: 75 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754265055415,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9000SHUBIN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","Yes","N: 50 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754265088183,"title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ SMA: 50 Ohm","option1":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","option2":"Yes","option3":"SMA: 50 Ohm","sku":"9000SHUBIS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Ka-Simultaneous Quad Band PLL LNB - B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ SMA: 50 Ohm","public_title":"B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz \/ Yes \/ SMA: 50 Ohm","options":["B: 18.2 - 19.2 GHz | 19.2 - 20.2 GHz | 20.2 - 21.2 GHz | 21.2 - 22.2 GHz","Yes","SMA: 50 Ohm"],"price":774902,"weight":1400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
input frequency band 2	18.20 - 19.20 GHz
input frequency band 3	19.20 - 20.20 GHz
input frequency band 4	20.20 - 21.20 GHz
LO frequency 1	16.25 GHz
LO frequency 2	17.25 GHz
LO frequency 3	18.25 GHz
LO frequency 4	19.25 GHz
LO stability	±10 kHz
noise figure max	2.3 dB
number of onboard LOs	Simultaneous Quad Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55dB
conversion gain typ	60 dB
Gain Flatness (Over Any 36MHz)	1 dB p-p
Gain Flatness (over full band)	4 dB p-p
image rejection	40 dBc min.
input VSWR	3.5 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	450 mA max.
IF connector	SMA Connector
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF input connector	WR 42

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS

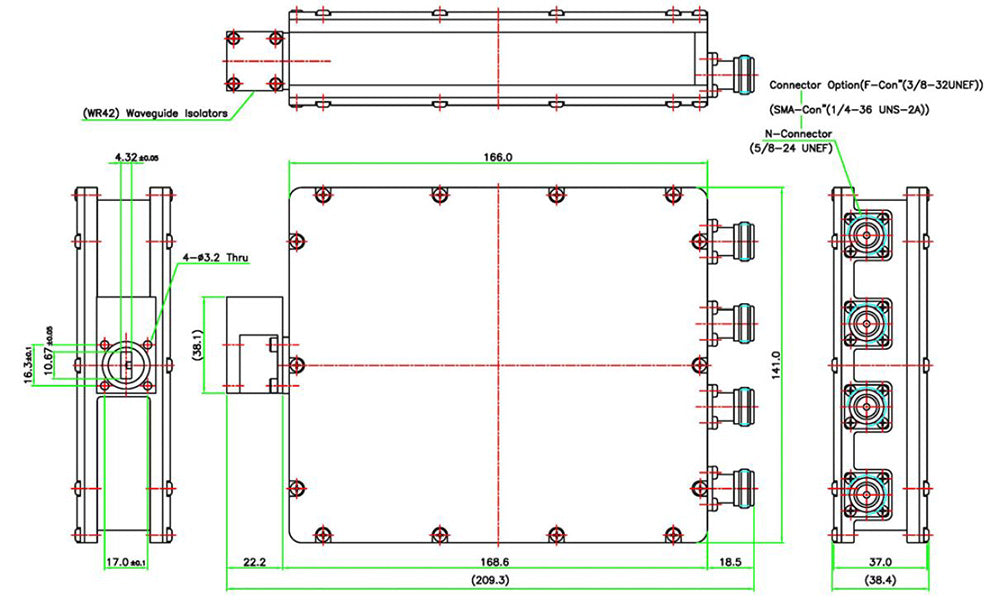

product dimensions (LxWxH)	38.4 x 141.0 x 188.2 mm
product weight	1 kg

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF input connector	WR 42

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 145 x 40 mm
Unit Package Weight	1.4 kg
COMPLIANCE
	Yes
	No
	Yes
