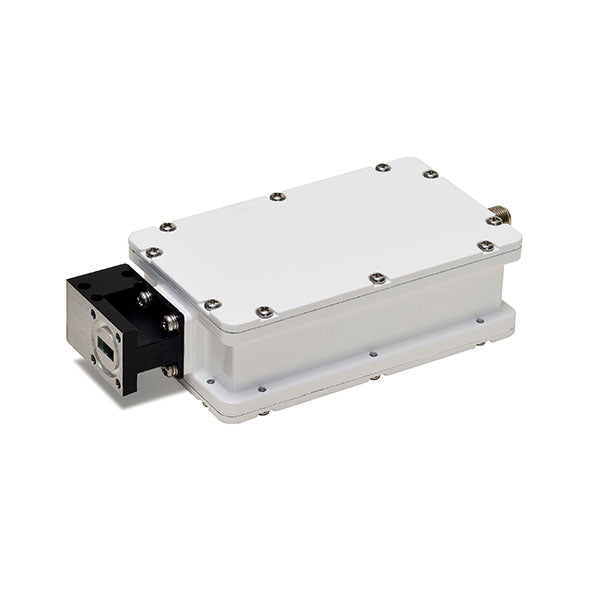

Name: 9000 Single Band Ka-Band EXT REF LNB
Brand: Norsat International Inc.
SKU: 9000XIF
Price: 5500.00 USD
Availability: InStock

9000XIF

9000 Single Band Ka-Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":41060523507895,"title":"F: 75 Ohm","option1":"F: 75 Ohm","option2":null,"option3":null,"sku":"9000XIF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Single Band Ka-Band EXT REF LNB - F: 75 Ohm","public_title":"F: 75 Ohm","options":["F: 75 Ohm"],"price":550000,"weight":700,"compare_at_price":550000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060523540663,"title":"N: 50 Ohm","option1":"N: 50 Ohm","option2":null,"option3":null,"sku":"9000XIN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Single Band Ka-Band EXT REF LNB - N: 50 Ohm","public_title":"N: 50 Ohm","options":["N: 50 Ohm"],"price":550000,"weight":700,"compare_at_price":550000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060523573431,"title":"S: SMA","option1":"S: SMA","option2":null,"option3":null,"sku":"9000XIS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000 Single Band Ka-Band EXT REF LNB - S: SMA","public_title":"S: SMA","options":["S: SMA"],"price":550000,"weight":700,"compare_at_price":550000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XI Series.

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	1000 - 2000 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	64 dB
conversion gain min	56 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	1.3 : 1 max.
output P1dB	+ 15 dBm min.
output VSWR	1.8 : 1 max.
phase noise 1kHz offset max	-72 dBc/Hz
phase noise 10kHz offset max	-82 dBc/Hz
phase noise 100kHz offset max	-92 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

M and C SPECIFICATIONS
led indicators	None

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C
temperature storage	-50°C to +70°C

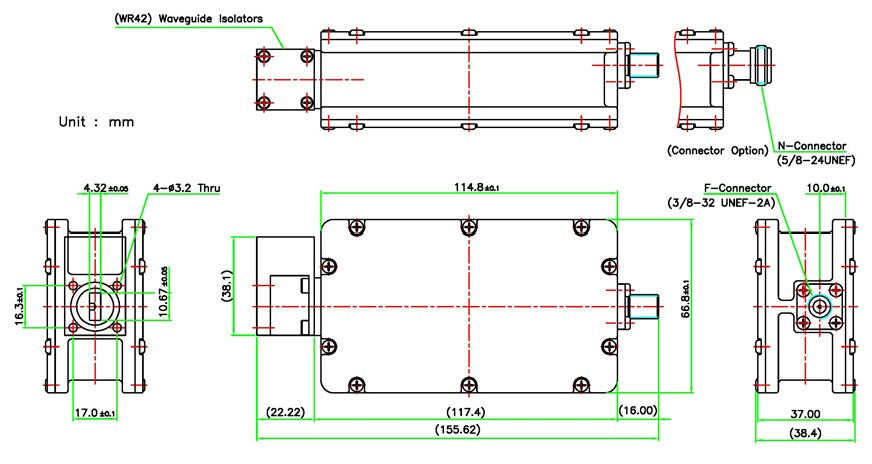

PHYSICAL SPECIFICATIONS
product height	139.6 mm
product length	66.8 mm
product weight	0.56 kg
product width	38.4 mm

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	1000 - 2000 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	64 dB
conversion gain min	56 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	1.3 : 1 max.
output P1dB	+ 15 dBm min.
output VSWR	1.8 : 1 max.
phase noise 1kHz offset max	-72 dBc/Hz
phase noise 10kHz offset max	-82 dBc/Hz
phase noise 100kHz offset max	-92 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

M and C SPECIFICATIONS
led indicators	None

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C
temperature storage	-50°C to +70°C

PHYSICAL SPECIFICATIONS
product height	139.6 mm
product length	66.8 mm
product weight	0.7 kg
product width	38.4 mm

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	20.20 - 21.20 GHz
LO frequency 1	19.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.8 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	1000 - 2000 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	64 dB
conversion gain min	56 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	1.3 : 1 max.
output P1dB	+ 15 dBm min.
output VSWR	1.8 : 1 max.
phase noise 1kHz offset max	-72 dBc/Hz
phase noise 10kHz offset max	-82 dBc/Hz
phase noise 100kHz offset max	-92 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	SMA Connector
RF input connector	WR-42 waveguide grooved

M and C SPECIFICATIONS
led indicators	None

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C
temperature storage	-50°C to +70°C

PHYSICAL SPECIFICATIONS
product height	139.6 mm
product length	66.8 mm
product weight	0.56 kg
product width	38.4 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in Japan
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	0.7 kg
Total Aluminium Content	0.36 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.9
