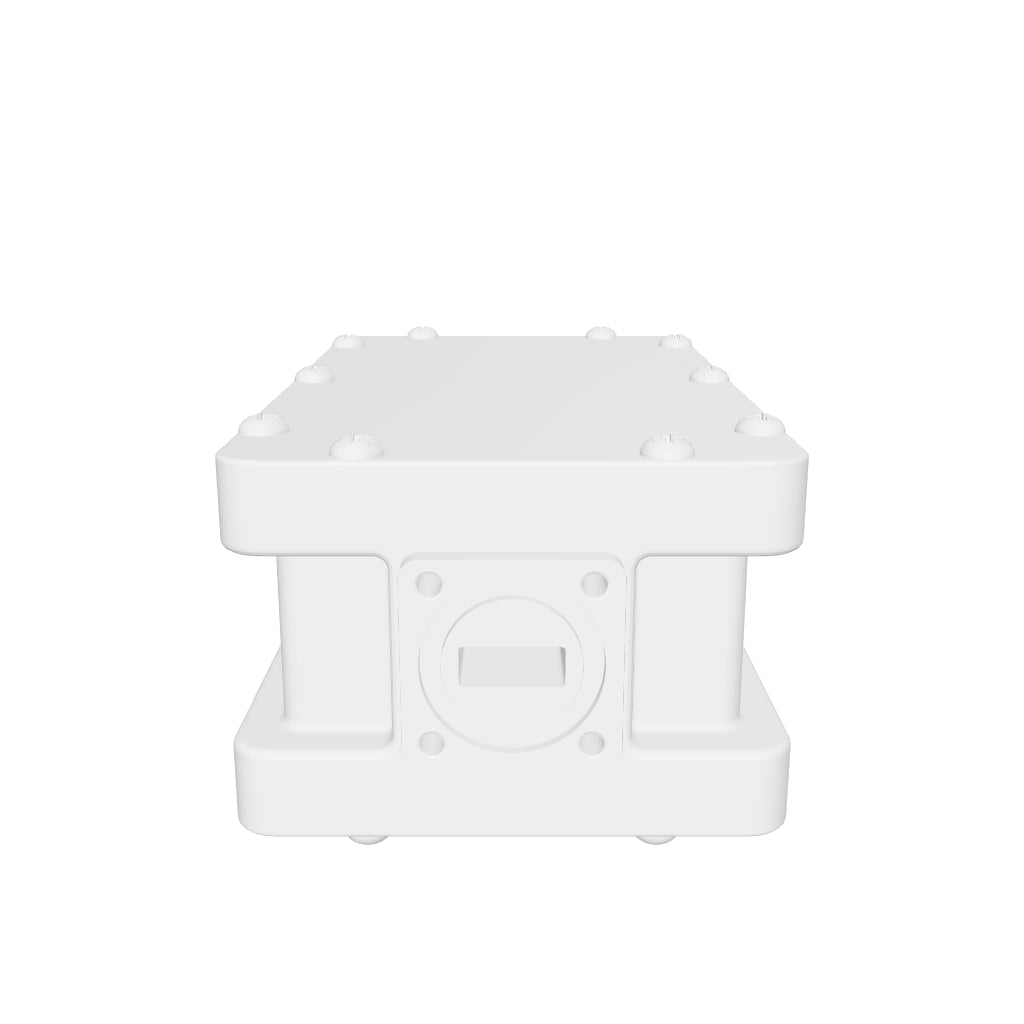

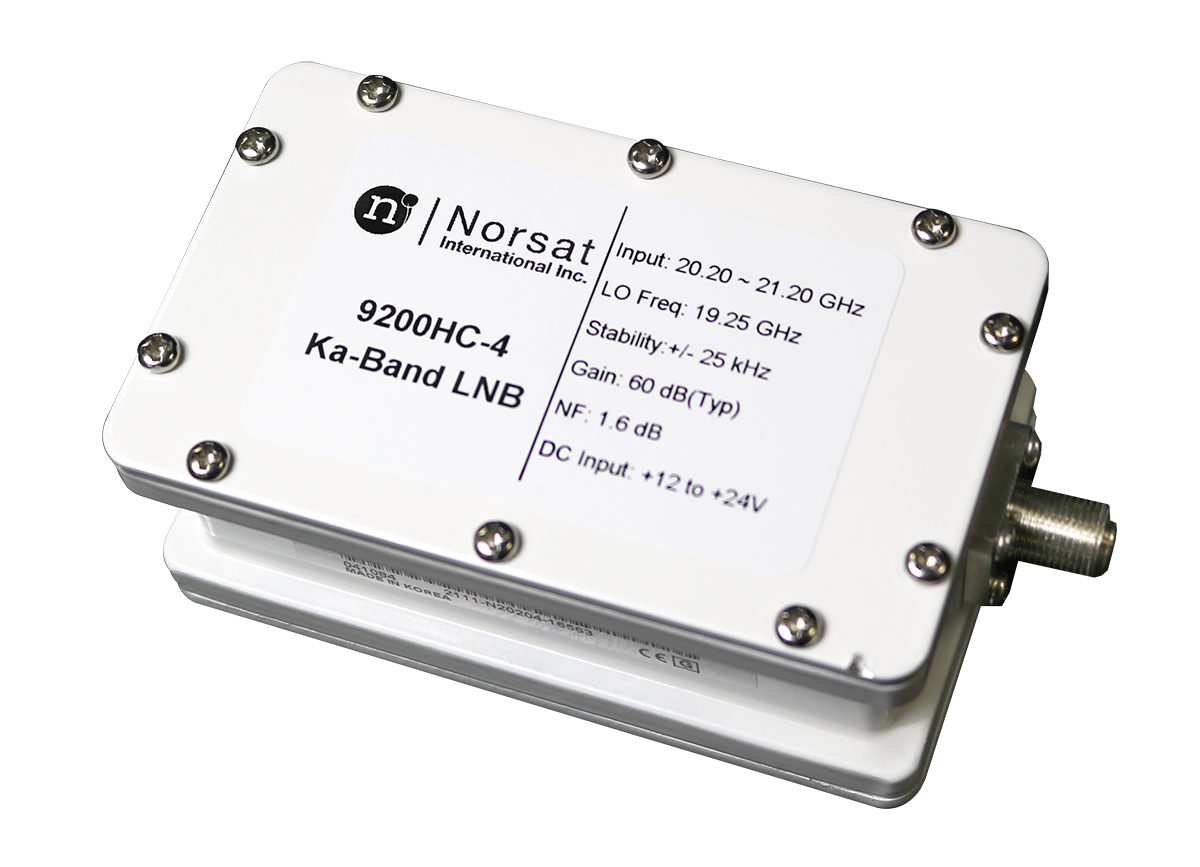

Name: 9200 Single-Band Ka-Band PLL LNB
Brand: Norsat International Inc.
SKU: 9200HAN-4
Price: 933.00 USD
Availability: InStock

9200HAN-4

9200 Single-Band Ka-Band PLL LNB

9000H-4 Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

LO Stability

Your selections will add an additional charge of

View Family Datasheet

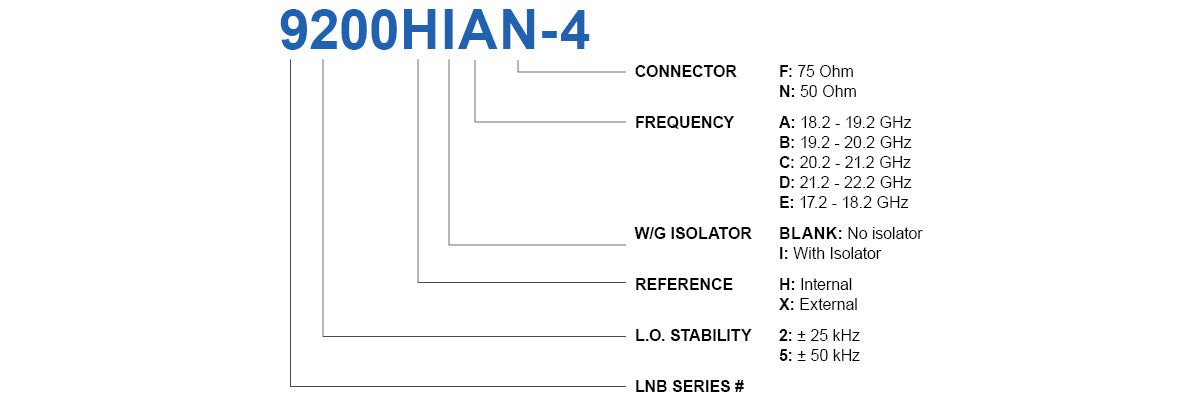

[{"id":41058452865207,"title":"A: 18.2 - 19.2 GHz \/ No \/ N: 50 Ohm","option1":"A: 18.2 - 19.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HAN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - A: 18.2 - 19.2 GHz \/ No \/ N: 50 Ohm","public_title":"A: 18.2 - 19.2 GHz \/ No \/ N: 50 Ohm","options":["A: 18.2 - 19.2 GHz","No","N: 50 Ohm"],"price":93300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"52865207","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058452897975,"title":"B: 19.2 - 20.2 GHz \/ No \/ N: 50 Ohm","option1":"B: 19.2 - 20.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HBN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - B: 19.2 - 20.2 GHz \/ No \/ N: 50 Ohm","public_title":"B: 19.2 - 20.2 GHz \/ No \/ N: 50 Ohm","options":["B: 19.2 - 20.2 GHz","No","N: 50 Ohm"],"price":93300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"52897975","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058452930743,"title":"C: 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","option1":"C: 20.2 - 21.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HCN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - C: 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","public_title":"C: 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","options":["C: 20.2 - 21.2 GHz","No","N: 50 Ohm"],"price":93300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"52930743","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058452963511,"title":"D: 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","option1":"D: 21.2 - 22.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HDN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - D: 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","public_title":"D: 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","options":["D: 21.2 - 22.2 GHz","No","N: 50 Ohm"],"price":93300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"52963511","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058452996279,"title":"E: 17.2 - 18.2 GHz \/ No \/ N: 50 Ohm","option1":"E: 17.2 - 18.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HEN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - E: 17.2 - 18.2 GHz \/ No \/ N: 50 Ohm","public_title":"E: 17.2 - 18.2 GHz \/ No \/ N: 50 Ohm","options":["E: 17.2 - 18.2 GHz","No","N: 50 Ohm"],"price":93300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"52996279","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058542911671,"title":"A: 18.2 - 19.2 GHz \/ No \/ F: 75 Ohm","option1":"A: 18.2 - 19.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HAF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - A: 18.2 - 19.2 GHz \/ No \/ F: 75 Ohm","public_title":"A: 18.2 - 19.2 GHz \/ No \/ F: 75 Ohm","options":["A: 18.2 - 19.2 GHz","No","F: 75 Ohm"],"price":89800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"42911671","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058542944439,"title":"B: 19.2 - 20.2 GHz \/ No \/ F: 75 Ohm","option1":"B: 19.2 - 20.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HBF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - B: 19.2 - 20.2 GHz \/ No \/ F: 75 Ohm","public_title":"B: 19.2 - 20.2 GHz \/ No \/ F: 75 Ohm","options":["B: 19.2 - 20.2 GHz","No","F: 75 Ohm"],"price":89800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"42944439","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058542977207,"title":"C: 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","option1":"C: 20.2 - 21.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HCF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - C: 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","public_title":"C: 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","options":["C: 20.2 - 21.2 GHz","No","F: 75 Ohm"],"price":89800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"42977207","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058543009975,"title":"D: 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","option1":"D: 21.2 - 22.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HDF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - D: 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","public_title":"D: 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","options":["D: 21.2 - 22.2 GHz","No","F: 75 Ohm"],"price":89800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"43009975","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058543042743,"title":"E: 17.2 - 18.2 GHz \/ No \/ F: 75 Ohm","option1":"E: 17.2 - 18.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HEF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - E: 17.2 - 18.2 GHz \/ No \/ F: 75 Ohm","public_title":"E: 17.2 - 18.2 GHz \/ No \/ F: 75 Ohm","options":["E: 17.2 - 18.2 GHz","No","F: 75 Ohm"],"price":89800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":"43042743","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418524855,"title":"A: 18.2 - 19.2 GHz \/ Yes \/ N: 50 Ohm","option1":"A: 18.2 - 19.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIAN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - A: 18.2 - 19.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"A: 18.2 - 19.2 GHz \/ Yes \/ N: 50 Ohm","options":["A: 18.2 - 19.2 GHz","Yes","N: 50 Ohm"],"price":138300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418557623,"title":"B: 19.2 - 20.2 GHz \/ Yes \/ N: 50 Ohm","option1":"B: 19.2 - 20.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIBN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - B: 19.2 - 20.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"B: 19.2 - 20.2 GHz \/ Yes \/ N: 50 Ohm","options":["B: 19.2 - 20.2 GHz","Yes","N: 50 Ohm"],"price":138300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418590391,"title":"C: 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","option1":"C: 20.2 - 21.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HICN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - C: 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"C: 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","options":["C: 20.2 - 21.2 GHz","Yes","N: 50 Ohm"],"price":138300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418492087,"title":"D: 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","option1":"D: 21.2 - 22.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIDN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - D: 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"D: 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","options":["D: 21.2 - 22.2 GHz","Yes","N: 50 Ohm"],"price":138300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418459319,"title":"E: 17.2 - 18.2 GHz \/ Yes \/ N: 50 Ohm","option1":"E: 17.2 - 18.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIEN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - E: 17.2 - 18.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"E: 17.2 - 18.2 GHz \/ Yes \/ N: 50 Ohm","options":["E: 17.2 - 18.2 GHz","Yes","N: 50 Ohm"],"price":138300,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418754231,"title":"A: 18.2 - 19.2 GHz \/ Yes \/ F: 75 Ohm","option1":"A: 18.2 - 19.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIAF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - A: 18.2 - 19.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"A: 18.2 - 19.2 GHz \/ Yes \/ F: 75 Ohm","options":["A: 18.2 - 19.2 GHz","Yes","F: 75 Ohm"],"price":134800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418721463,"title":"B: 19.2 - 20.2 GHz \/ Yes \/ F: 75 Ohm","option1":"B: 19.2 - 20.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIBF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - B: 19.2 - 20.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"B: 19.2 - 20.2 GHz \/ Yes \/ F: 75 Ohm","options":["B: 19.2 - 20.2 GHz","Yes","F: 75 Ohm"],"price":134800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418623159,"title":"C: 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","option1":"C: 20.2 - 21.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HICF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - C: 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"C: 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","options":["C: 20.2 - 21.2 GHz","Yes","F: 75 Ohm"],"price":134800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418655927,"title":"D: 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","option1":"D: 21.2 - 22.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIDF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - D: 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"D: 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","options":["D: 21.2 - 22.2 GHz","Yes","F: 75 Ohm"],"price":134800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125418688695,"title":"E: 17.2 - 18.2 GHz \/ Yes \/ F: 75 Ohm","option1":"E: 17.2 - 18.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIEF-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9200 Single-Band Ka-Band PLL LNB - E: 17.2 - 18.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"E: 17.2 - 18.2 GHz \/ Yes \/ F: 75 Ohm","options":["E: 17.2 - 18.2 GHz","Yes","F: 75 Ohm"],"price":134800,"weight":480,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	18.20 - 19.20 GHz
LO frequency 1	17.25 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	1.6 dB
noise figure typ	1.5 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1950 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	400 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector (waterproof)
isolator	No Isolator
RF input connector	WR-42 waveguide grooved (waterproof)

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

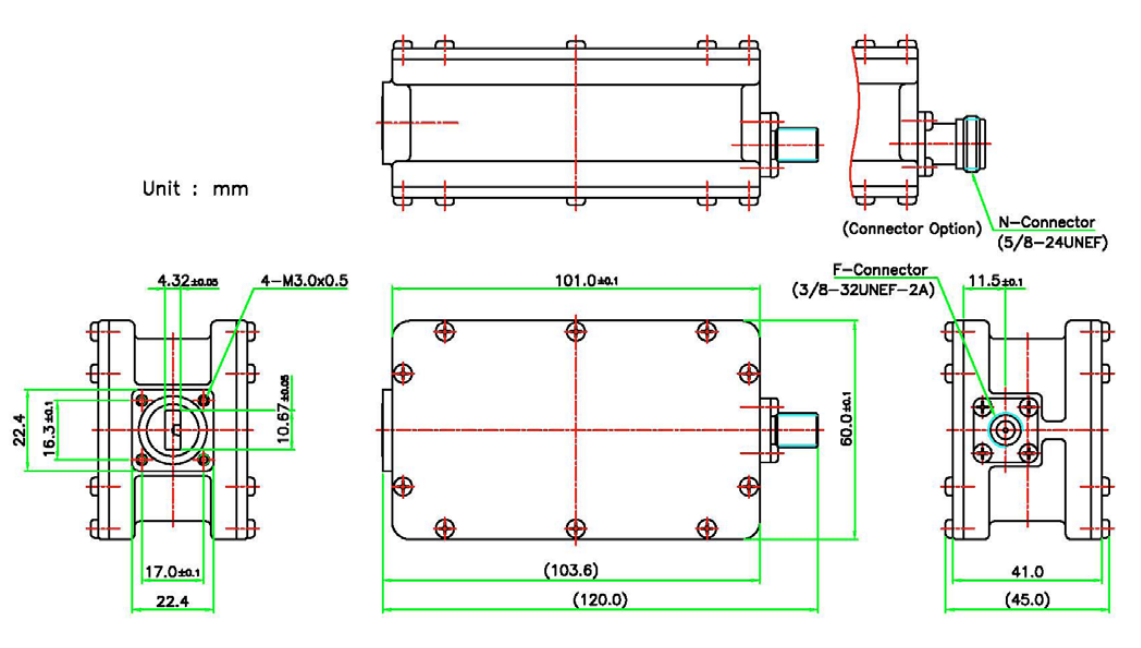

PHYSICAL SPECIFICATIONS
product height	45 mm
product length	120 mm
product weight	0.42 kg
product width	60 mm
