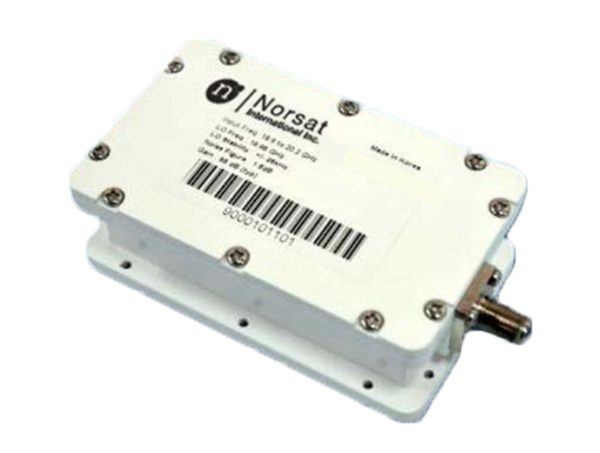

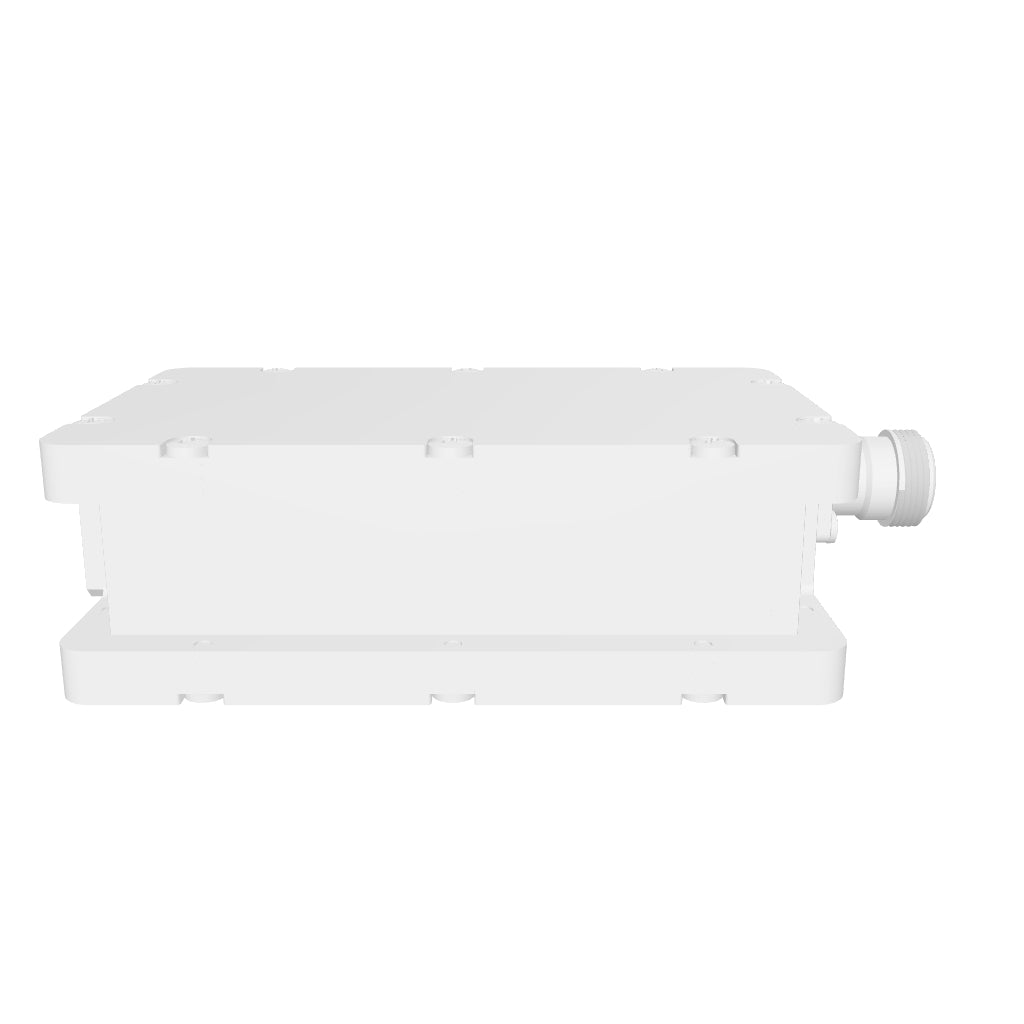

Name: 9000H-3 Dual-Band Ka-Band PLL LNB
Brand: Norsat International Inc.
SKU: 9200HAEB-3F
Price: 3432.00 USD
Availability: InStock

9200HAEB-3F

9000H-3 Dual-Band Ka-Band PLL LNB

9000H-3 Series

$3,432.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: 0 Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

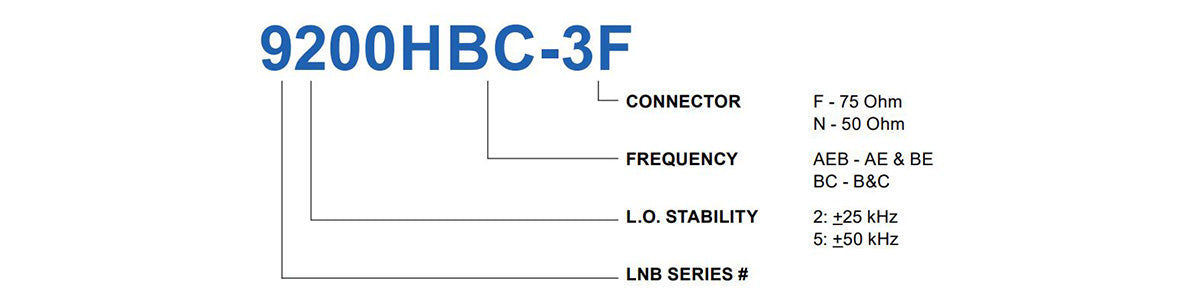

[{"id":41060678402231,"title":"2: ±25 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","option1":"2: ±25 kHz","option2":"AEB: AE \u0026 BE","option3":"F: 75 Ohm","sku":"9200HAEB-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 2: ±25 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","public_title":"2: ±25 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","options":["2: ±25 kHz","AEB: AE \u0026 BE","F: 75 Ohm"],"price":343200,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678434999,"title":"2: ±25 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","option1":"2: ±25 kHz","option2":"AEB: AE \u0026 BE","option3":"N: 50 Ohm","sku":"9200HAEB-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 2: ±25 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","public_title":"2: ±25 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","options":["2: ±25 kHz","AEB: AE \u0026 BE","N: 50 Ohm"],"price":346700,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678467767,"title":"2: ±25 kHz \/ BC: B\u0026C \/ F: 75 Ohm","option1":"2: ±25 kHz","option2":"BC: B\u0026C","option3":"F: 75 Ohm","sku":"9200HBC-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 2: ±25 kHz \/ BC: B\u0026C \/ F: 75 Ohm","public_title":"2: ±25 kHz \/ BC: B\u0026C \/ F: 75 Ohm","options":["2: ±25 kHz","BC: B\u0026C","F: 75 Ohm"],"price":312400,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678500535,"title":"2: ±25 kHz \/ BC: B\u0026C \/ N: 50 Ohm","option1":"2: ±25 kHz","option2":"BC: B\u0026C","option3":"N: 50 Ohm","sku":"9200HBC-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 2: ±25 kHz \/ BC: B\u0026C \/ N: 50 Ohm","public_title":"2: ±25 kHz \/ BC: B\u0026C \/ N: 50 Ohm","options":["2: ±25 kHz","BC: B\u0026C","N: 50 Ohm"],"price":312400,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678533303,"title":"5: ±50 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","option1":"5: ±50 kHz","option2":"AEB: AE \u0026 BE","option3":"F: 75 Ohm","sku":"9500HAEB-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 5: ±50 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","public_title":"5: ±50 kHz \/ AEB: AE \u0026 BE \/ F: 75 Ohm","options":["5: ±50 kHz","AEB: AE \u0026 BE","F: 75 Ohm"],"price":308800,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678566071,"title":"5: ±50 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","option1":"5: ±50 kHz","option2":"AEB: AE \u0026 BE","option3":"N: 50 Ohm","sku":"9500HAEB-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 5: ±50 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","public_title":"5: ±50 kHz \/ AEB: AE \u0026 BE \/ N: 50 Ohm","options":["5: ±50 kHz","AEB: AE \u0026 BE","N: 50 Ohm"],"price":312300,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678598839,"title":"5: ±50 kHz \/ BC: B\u0026C \/ F: 75 Ohm","option1":"5: ±50 kHz","option2":"BC: B\u0026C","option3":"F: 75 Ohm","sku":"9500HBC-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 5: ±50 kHz \/ BC: B\u0026C \/ F: 75 Ohm","public_title":"5: ±50 kHz \/ BC: B\u0026C \/ F: 75 Ohm","options":["5: ±50 kHz","BC: B\u0026C","F: 75 Ohm"],"price":281100,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060678631607,"title":"5: ±50 kHz \/ BC: B\u0026C \/ N: 50 Ohm","option1":"5: ±50 kHz","option2":"BC: B\u0026C","option3":"N: 50 Ohm","sku":"9500HBC-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000H-3 Dual-Band Ka-Band PLL LNB - 5: ±50 kHz \/ BC: B\u0026C \/ N: 50 Ohm","public_title":"5: ±50 kHz \/ BC: B\u0026C \/ N: 50 Ohm","options":["5: ±50 kHz","BC: B\u0026C","N: 50 Ohm"],"price":281100,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.70 - 18.95 GHz
input frequency band 2	18.95 - 20.20 GHz
LO frequency 1	16.75 GHz
LO frequency 2	18.00 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 2200 MHz
output frequency band 2	950 - 2200 MHz
Product Revision	B

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	5 dB p-p
image rejection	40 dBc min.
input VSWR	2.5 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100Hz offset max	-60 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +19V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS

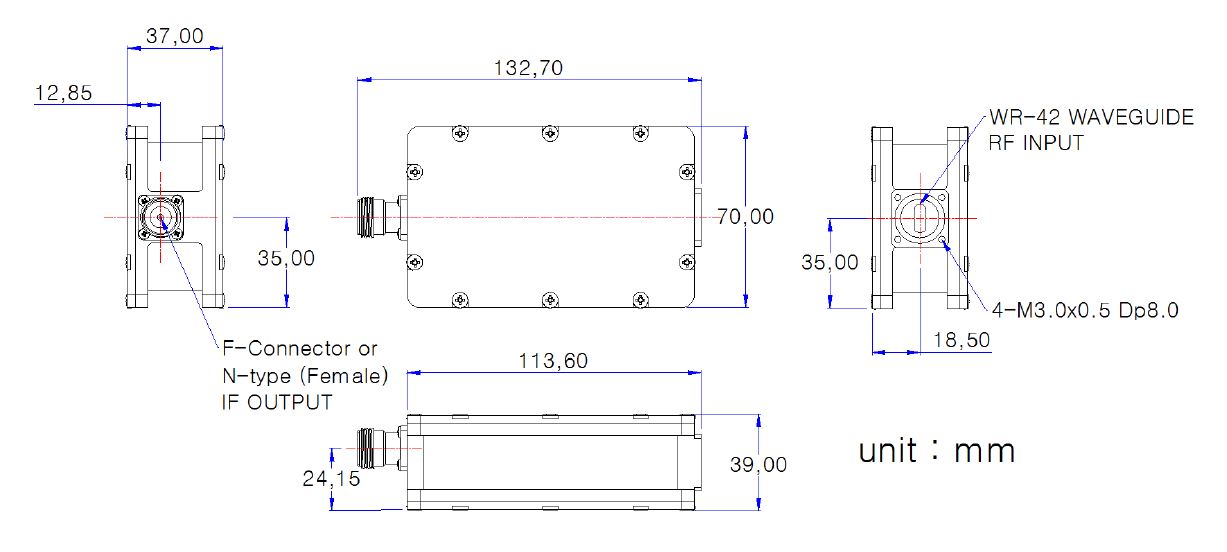

product dimensions (LxWxH)	133 x 70 x 39 mm
product weight	0.5 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 100 x 70 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	No
	Yes

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

Language
