Name: 9000X-3 Dual-Band Ka-Band EXT REF LNB
Brand: Norsat International Inc.
SKU: 9016XAEBE-3F
Price: 3432.00 USD
Availability: InStock

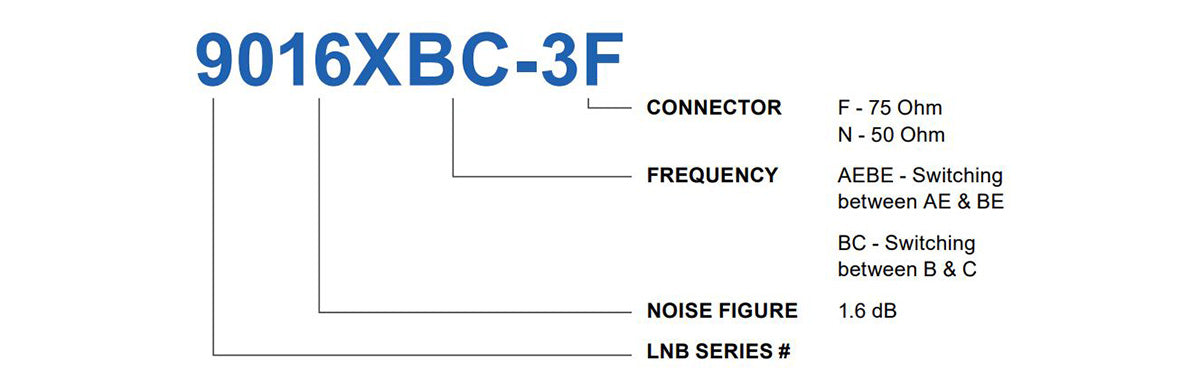

9016XAEBE-3F

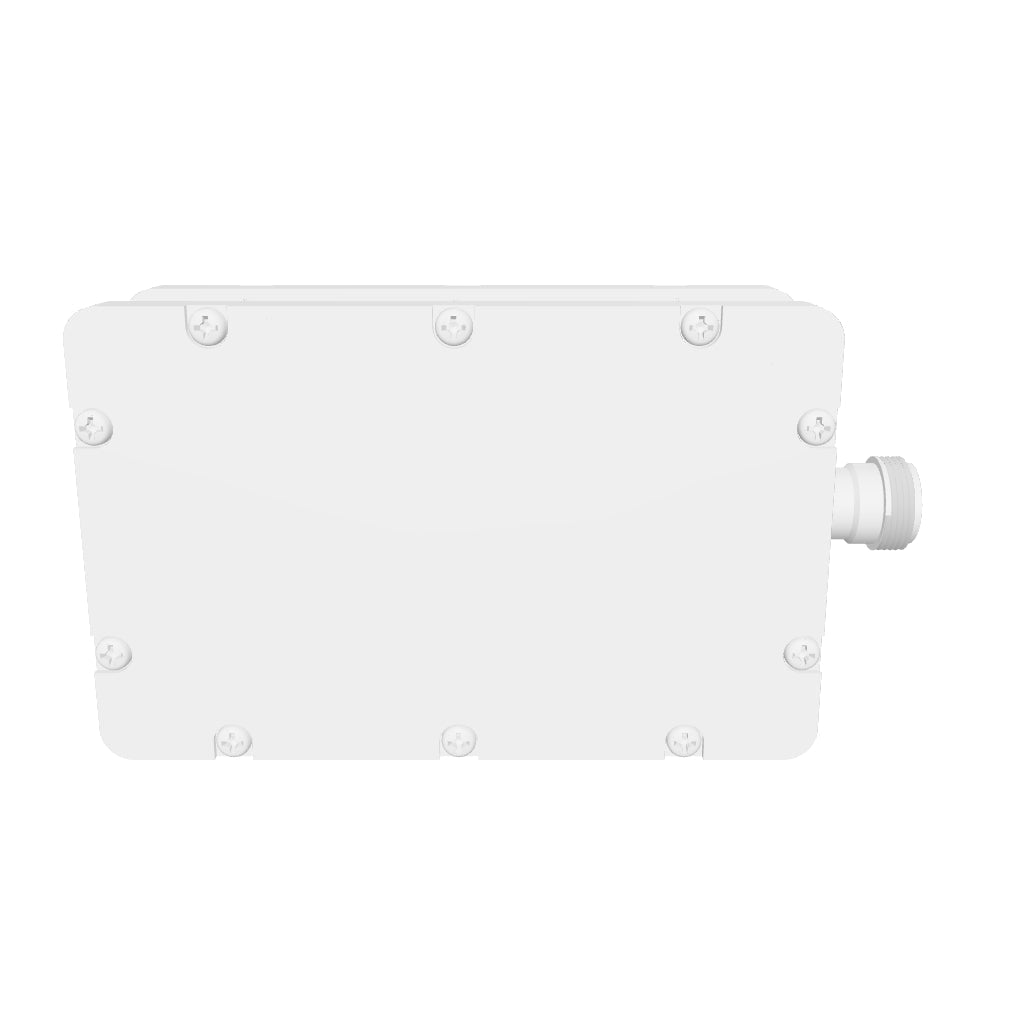

9000X-3 Dual-Band Ka-Band EXT REF LNB

9000X-3 Series

$3,432.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: 0 Next Availability: 0 Next Availability: 0

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41059897770167,"title":"AEBE: Switching between AE \u0026 BE \/ F: 75 Ohm","option1":"AEBE: Switching between AE \u0026 BE","option2":"F: 75 Ohm","option3":null,"sku":"9016XAEBE-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X-3 Dual-Band Ka-Band EXT REF LNB - AEBE: Switching between AE \u0026 BE \/ F: 75 Ohm","public_title":"AEBE: Switching between AE \u0026 BE \/ F: 75 Ohm","options":["AEBE: Switching between AE \u0026 BE","F: 75 Ohm"],"price":343200,"weight":540,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059897802935,"title":"AEBE: Switching between AE \u0026 BE \/ N: 50 Ohm","option1":"AEBE: Switching between AE \u0026 BE","option2":"N: 50 Ohm","option3":null,"sku":"9016XAEBE-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X-3 Dual-Band Ka-Band EXT REF LNB - AEBE: Switching between AE \u0026 BE \/ N: 50 Ohm","public_title":"AEBE: Switching between AE \u0026 BE \/ N: 50 Ohm","options":["AEBE: Switching between AE \u0026 BE","N: 50 Ohm"],"price":346700,"weight":540,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059897835703,"title":"BC: Switching between B \u0026 C \/ F: 75 Ohm","option1":"BC: Switching between B \u0026 C","option2":"F: 75 Ohm","option3":null,"sku":"9016XBC-3F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X-3 Dual-Band Ka-Band EXT REF LNB - BC: Switching between B \u0026 C \/ F: 75 Ohm","public_title":"BC: Switching between B \u0026 C \/ F: 75 Ohm","options":["BC: Switching between B \u0026 C","F: 75 Ohm"],"price":343200,"weight":540,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41059897868471,"title":"BC: Switching between B \u0026 C \/ N: 50 Ohm","option1":"BC: Switching between B \u0026 C","option2":"N: 50 Ohm","option3":null,"sku":"9016XBC-3N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"9000X-3 Dual-Band Ka-Band EXT REF LNB - BC: Switching between B \u0026 C \/ N: 50 Ohm","public_title":"BC: Switching between B \u0026 C \/ N: 50 Ohm","options":["BC: Switching between B \u0026 C","N: 50 Ohm"],"price":390000,"weight":540,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000X-3 Series.

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	17.70 - 18.95 GHz
input frequency band 2	18.95 - 20.20 GHz
LO frequency 1	16.75 GHz
LO frequency 2	18.95 - 20.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 2200 MHz
output frequency band 2	950 - 2200 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	5 dB p-p
image rejection	40 dBc min.
input VSWR	2.5 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100Hz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference
phase noise 1MHz offset max	Depends on External Reference
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +19V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

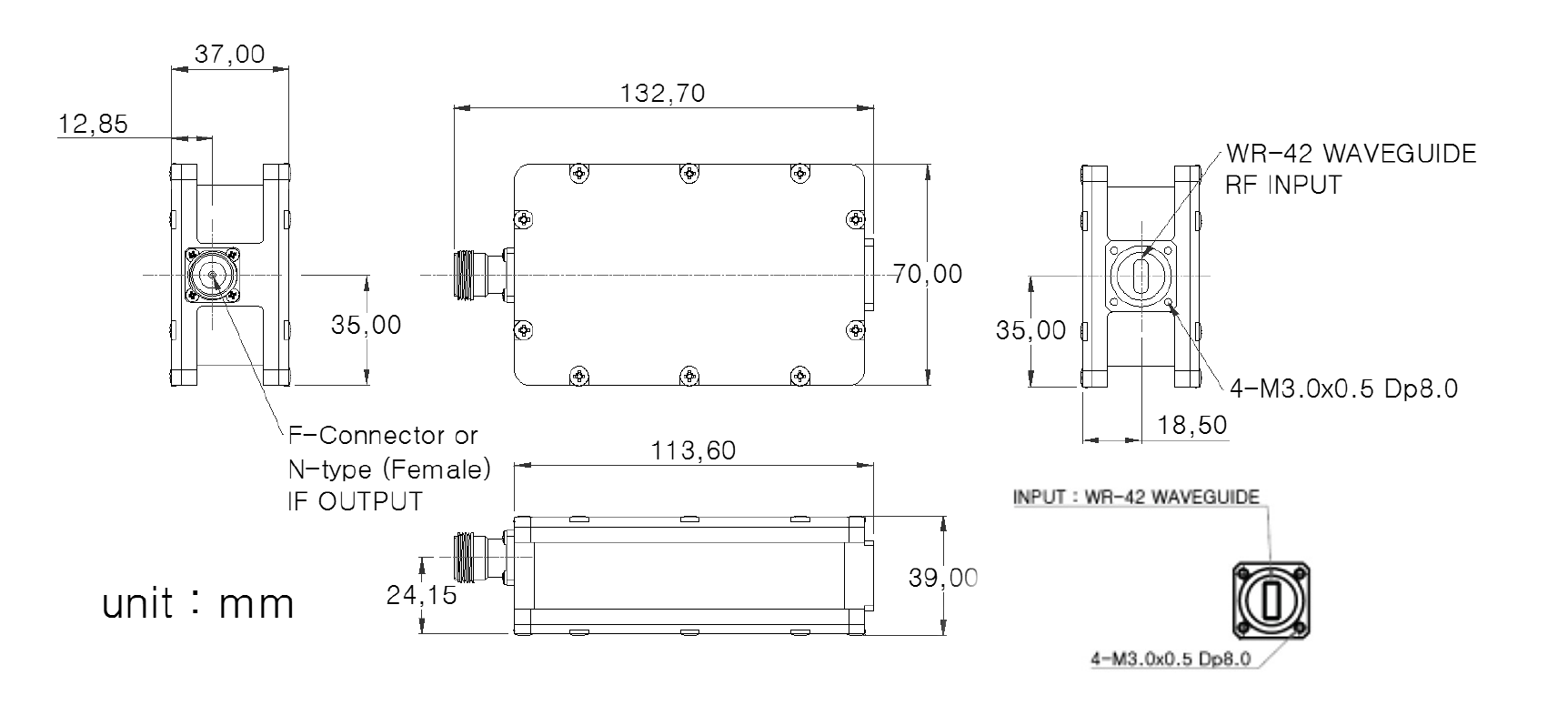

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	128 x 70 x 38 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	17.70 - 18.95 GHz
input frequency band 2	18.95 - 20.20 GHz
LO frequency 1	16.75 GHz
LO frequency 2	18.95 - 20.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 2200 MHz
output frequency band 2	950 - 2200 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	5 dB p-p
image rejection	40 dBc min.
input VSWR	2.5 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100Hz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference
phase noise 1MHz offset max	Depends on External Reference
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +19V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	128 x 70 x 38 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	19.20 - 20.20 GHz
input frequency band 2	20.20 - 21.20 GHz
LO frequency 1	18.25 GHz
LO frequency 2	20.20 - 21.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	4 dB p-p
image rejection	40 dBc min.
input VSWR	2.2 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference
phase noise 1MHz offset max	Depends on External Reference
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +19V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	134 x 67 x 37 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	19.20 - 20.20 GHz
input frequency band 2	20.20 - 21.20 GHz
LO frequency 1	18.25 GHz
LO frequency 2	20.20 - 21.20 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	4 dB p-p
image rejection	40 dBc min.
input VSWR	2.2 : 1 max.
output P1dB	5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference
phase noise 1MHz offset max	Depends on External Reference
spurious	-60 dBc (in band) ; -50 dBc (out of band)

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +19V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	128 x 70 x 38 mm
product weight	0.5 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 100 x 70 mm
Unit Package Weight	0.54 kg
