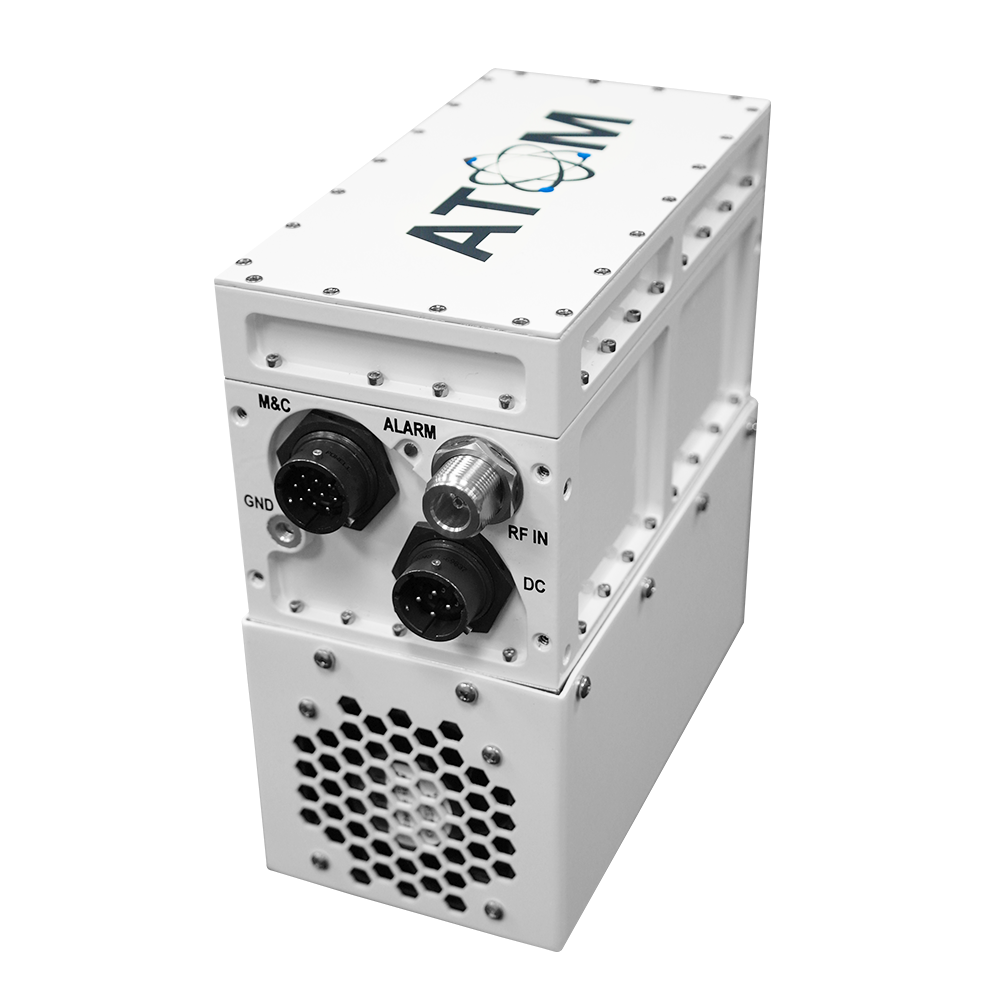

ATOM 25W Ka-Band SSPA
ATOMSKA025M1B
ATOM 25W Ka-Band SSPA
ATOMSKA025 Series
Regular price
$27,526.83
MSRP: $27,526.83
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Quantity Available: 0
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Next Availability Lead Time: Contact Sales
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
Ex Works: Richmond, BC, Canada
View Resellers Quantity
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
For more information, click on the Company's link below:
(Scroll to see specifications and documents)
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Send
Or download now:
Something went wrong. Please try again.
Download
The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector

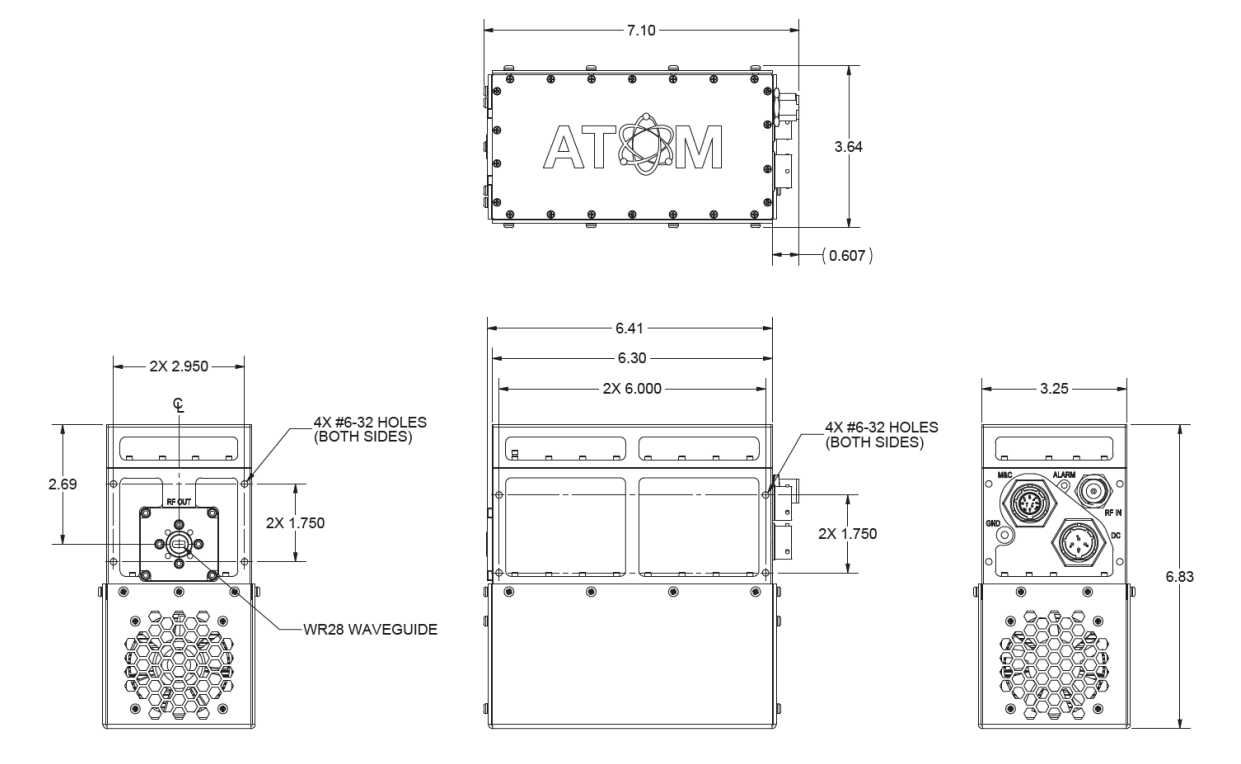

product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
M: Military
input frequency band 1
1000 - 2000 MHz
LO frequency 1
29.00 GHz
output frequency band 1
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
C: Commercial
input frequency band 1
950 - 1950 MHz
LO frequency 1
28.05 GHz
output frequency band 1
29.00 - 30.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
1: Internal Fan
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
B
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
No Add-on
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
F: EMI/EMC Filter
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
P: Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
KEY SPECIFICATIONS
band
Ka-Band
band type
D: Dual Band
input frequency band 1
950 - 1950 MHz
input frequency band 2
950 - 1950 MHz
LO frequency 1
28.05 GHz
LO frequency 2
29.05 GHz
output frequency band 1
29.00 - 30.00 GHz
output frequency band 2
30.00 - 31.00 GHz
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 40MHz)
≤ 1.0 dB p-p
Gain Flatness (over full band)
≤ 3.5 dB p-p
Gain Flatness (over temperature)
≤ 3.0 dB p-p
input power
via power connector
input VSWR
2.5 : 1 max.
Linear Gain
60 dB typ., 55 dB min., 65 dB max.
linear power plin
41 dBm min.
noise power density
-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat
44 dBm min.
output spurious in band
≤ -55 dBc
output spurious out of band P1dB
≤ -60 dBc
output VSWR
1.9 : 1 max.
phase noise 100Hz offset max
-62 dBc/Hz
phase noise 100kHz offset max
-92 dBc/Hz
phase noise 10kHz offset max
-82 dBc/Hz
phase noise 1kHz offset max
-72 dBc/Hz
phase noise 1MHz offset max
-102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC
14.8A max.
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat
285 W max.
power requirements
+20 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector
SMA-Connector
RF output connector
WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
IP rating
IP 65
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
thermal shutdown temperature
90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling
2: External Baseplate
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH)
140 x 80 x 170 mm
product weight
2.4 kg
ACCESSORIES
optional configuration add ons
FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m
CABLEM+C-AT10
optional power supply
PS480-AT1-(NA/UK/EU/IEC/CN/AU)
INFORMATION
HS Code
8517690000
Country of Origin
Made in Canada
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
-
Unit Package Weight
-
COMPLIANCE
Yes
No
Yes
Open here
ATOMBKA025-50-Spec-Sheet.pdf
3DModel-ATOM-25W-Ka-Baseplate-Cooled-with-EMI-Filter.zip
