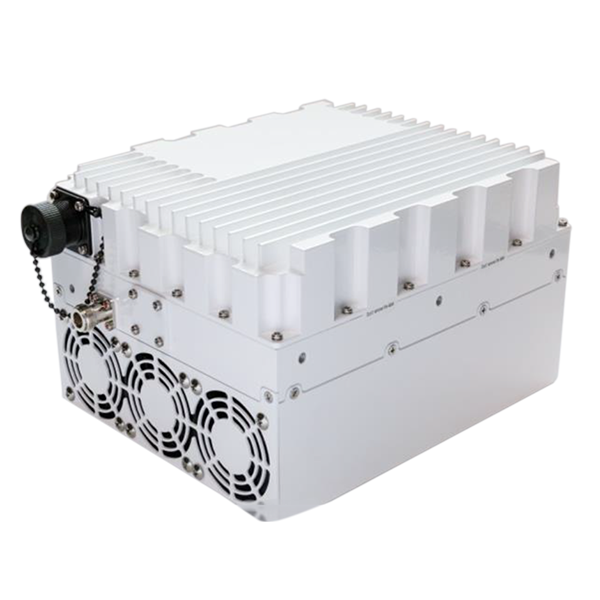

ELEMENT 100W C-Band BUC

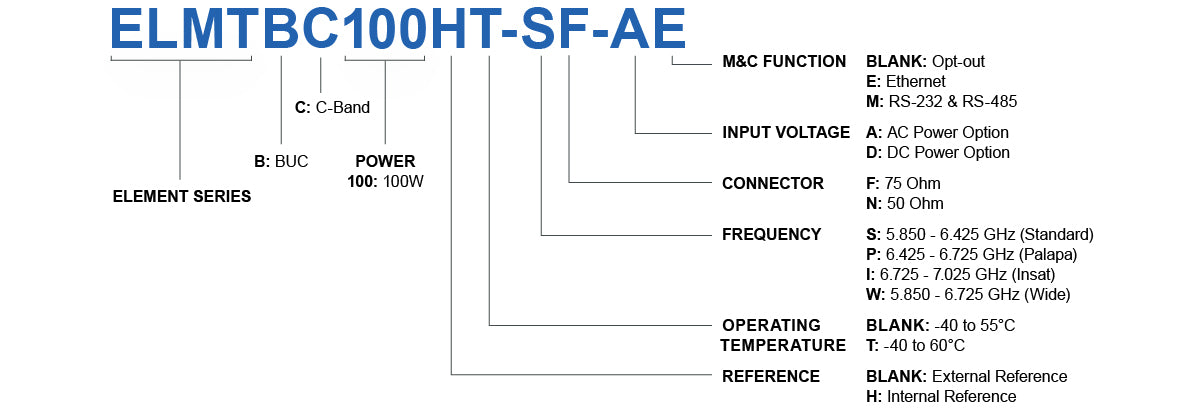

ELMTBC100H-SF-A

ELEMENT 100W C-Band BUC

ELMTBC100 Series

Regular price

Please sign in to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
band C-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1525 MHz
LO frequency 1 4.9 GHz
output frequency band 1 5.850 - 6.425 GHz
output power rated 100W
reference type Internal Reference
Product Revision A
RF SPECIFICATIONS
Gain Flatness (over 54MHz) 1.5 dB
Gain Flatness (over full band) 4 dB
Gain Flatness (over temperature) 4 dB
input VSWR 2 : 1 max.
linear gain typ 80 dB
output P1dB min +50 dBm over temperature
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2 : 1 max.
phase noise 100Hz offset max -65 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 650W max.
power consumption 630W max.
power requirements +85 to +265V AC
INTERFACE SPECIFICATIONS
frequency sense Non-inverted
IF connector F-Connector
m and c interface No M&C Function
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100%
IP rating IP 54
temperature operational -40°C to +55°C
temperature storage -40 to +75°C
PHYSICAL SPECIFICATIONS
internal function Lock detector shuts off Tx in case of LO unlocked
product height 145 mm
product length 235 mm
product weight 8.5 kg
product width 190 mm
