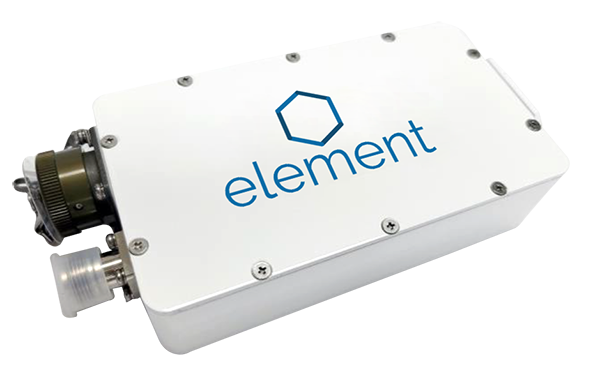

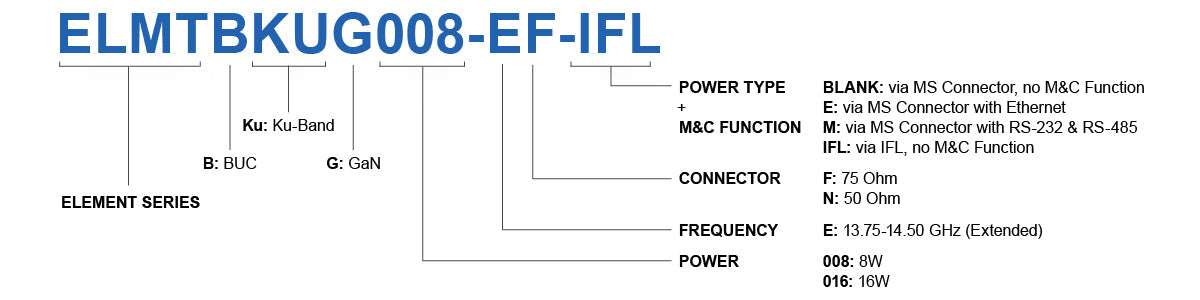

KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
None
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +55°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket

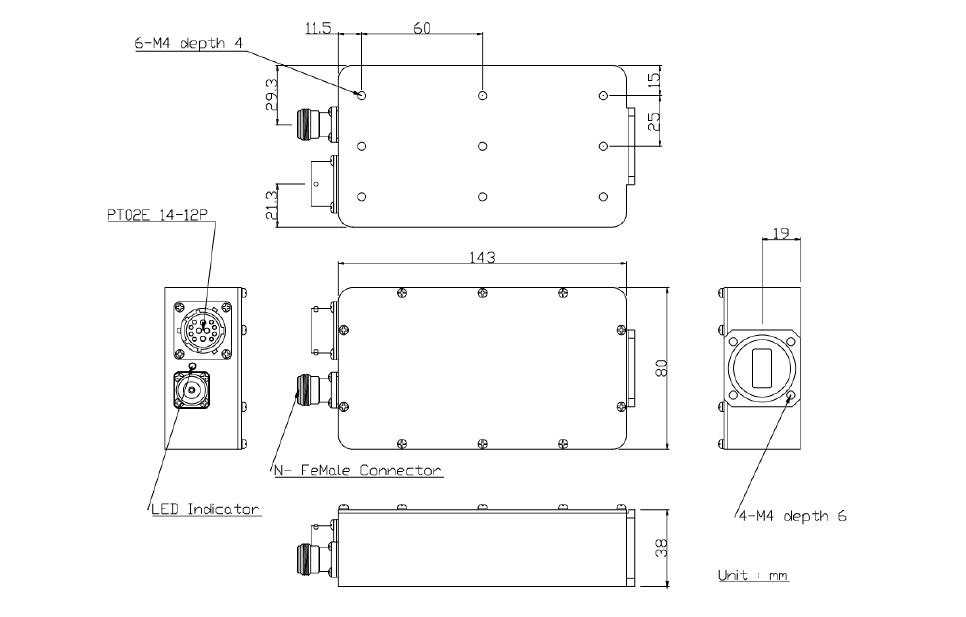

product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
Ethernet
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +55°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
RS-232 & RS-485
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +55°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via IFL
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via IFL
M&C function
None
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +55°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
None
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
Ethernet
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via MS Connector
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via MS Connector
M&C function
RS-232 & RS-485
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
950 - 1700 MHz
LO frequency 1
12.80 GHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
16W
Product Revision
A
RF SPECIFICATIONS
Gain Flatness (over 54MHz)
≤ 1.5 dB p-p
Gain Flatness (over full band)
≤ 4.0 dB p-p
Gain Flatness (over temperature)
≤ 4.0 dB p-p
input power
via IFL
input VSWR
2.0 : 1 max.
linear gain typ
68 dB
output power plinear
40 dBm
output power psat
42 dBm
output spurious in band
≤ -60 dBc
output spurious out of band
≤ -50 dBc
output VSWR
2.0 : 1 max.
phase noise 100Hz offset max
-65 dBc/Hz
phase noise 100kHz offset max
-95 dBc/Hz
phase noise 10kHz offset max
-85 dBc/Hz
phase noise 1kHz offset max
-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power
via IFL
M&C function
None
power consumption
70W max.
power requirements
+18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity
Up to 100% / IP67
IP rating
IP 67
temperature operational
-40 to +60°C
temperature storage
-40 to +80°C
PHYSICAL SPECIFICATIONS
enclosed accessories
Screws, Gasket
product dimensions (LxWxH)
143 x 80 x 38 mm
product weight
0.75 kg
INFORMATION
HS Code
8543700000
Country of Origin
Made in Korea
Ex Works
Korea
ECCN Number
EAR99
Unit Package Dimensions
190 x 120 x 75 mm
Unit Package Weight
-
COMPLIANCE
Yes
No
Yes
Open here
ELMTBKUG008-16-Spec-Sheet.pdf
