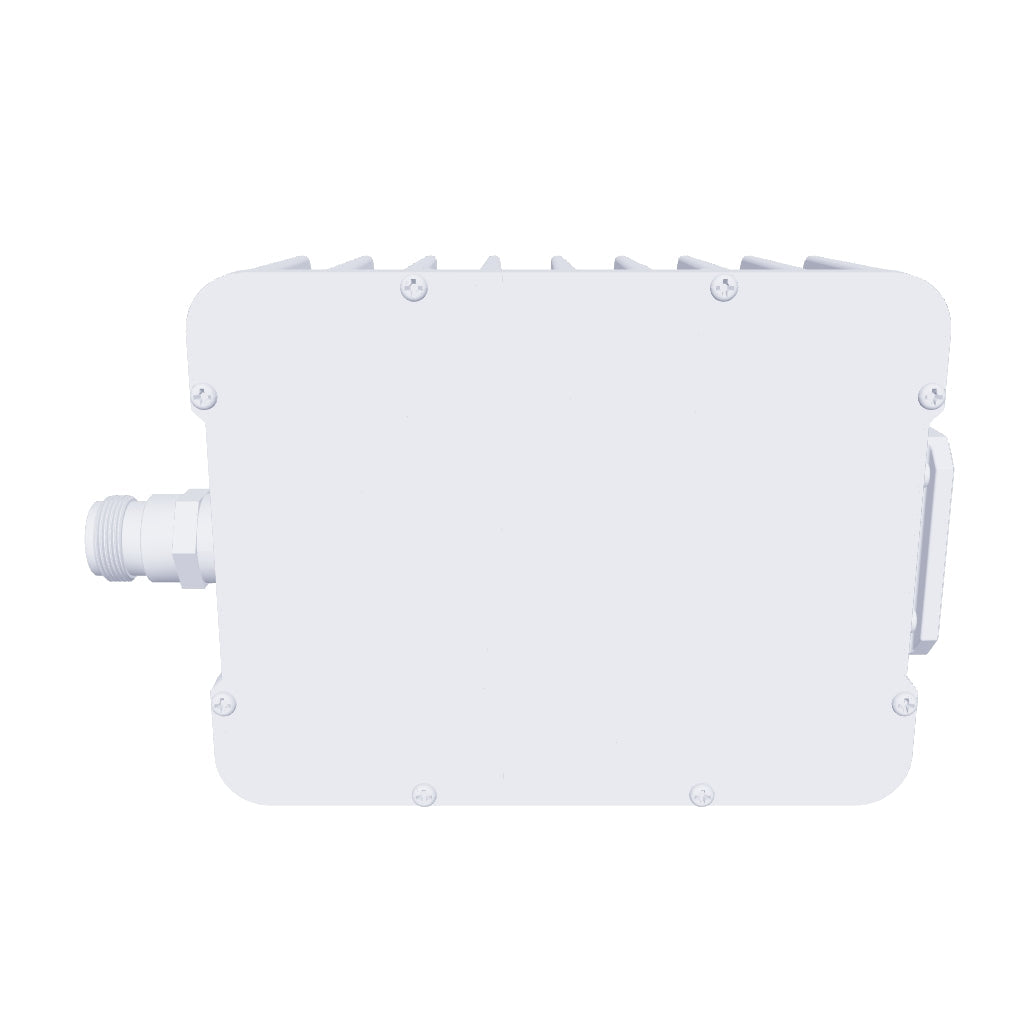

Name: ELEMENT 2W Ku-Band MINIBUC
Brand: Norsat International Inc.
SKU: ELMTBKU002-EF
Price: 469.14 USD
Availability: InStock

ELMTBKU002-EF

ELEMENT 2W Ku-Band MINIBUC

ELMTBKU002 Series

$469.14

Quantity Available: 34

Minimum Quantity Order: 5

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales

Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41088185860279,"title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +55°C","sku":"ELMTBKU002-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","public_title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","options":["Extended: 13.75 - 14.50 GHz","F-Connector","-40 to +55°C"],"price":46914,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41088185893047,"title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +55°C","sku":"ELMTBKU002-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","public_title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","options":["Extended: 13.75 - 14.50 GHz","N-Connector","-40 to +55°C"],"price":46914,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41088185794743,"title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +55°C","sku":"ELMTBKU002-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","public_title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","options":["Standard: 14.00 - 14.50 GHz","F-Connector","-40 to +55°C"],"price":45679,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41088185827511,"title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +55°C","sku":"ELMTBKU002-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","public_title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","options":["Standard: 14.00 - 14.50 GHz","N-Connector","-40 to +55°C"],"price":45679,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961003191,"title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +60°C","sku":"ELMTBKU002T-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","public_title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","options":["Extended: 13.75 - 14.50 GHz","F-Connector","-40 to +60°C"],"price":66914,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961068727,"title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +60°C","sku":"ELMTBKU002T-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","public_title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","options":["Extended: 13.75 - 14.50 GHz","N-Connector","-40 to +60°C"],"price":66914,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961101495,"title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +60°C","sku":"ELMTBKU002T-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","public_title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","options":["Standard: 14.00 - 14.50 GHz","F-Connector","-40 to +60°C"],"price":65679,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961134263,"title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +60°C","sku":"ELMTBKU002T-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 2W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","public_title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","options":["Standard: 14.00 - 14.50 GHz","N-Connector","-40 to +60°C"],"price":65679,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
band type	E: Extended
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1700 MHz
LO frequency 1	12.80 GHz
output frequency band 1	13.75 - 14.50 GHz
Product Revision	B

RF SPECIFICATIONS
Gain Flatness (over 54MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 4.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	60 dB
linear gain min	50 dB
linear gain typ	55 dB
output P1dB	33 dBm min.
output power psat	33.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -50 dBc
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	-60 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	18W max.
maximum current 15 VDC	1.2A
power consumption	18W max.
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF output connector	WR75G

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 100% condensing
temperature operational	-40 to +55°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket
product dimensions (LxWxH)	124.8 x 95.1 x 58.3 mm
product weight	0.7 kg

INFORMATION
HS Code	8543700000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	190 x 120 x 75 mm (7.48 x 4.72 x 2.95 in)
Unit Package Weight	-
COMPLIANCE
	Yes
	No
	Yes
