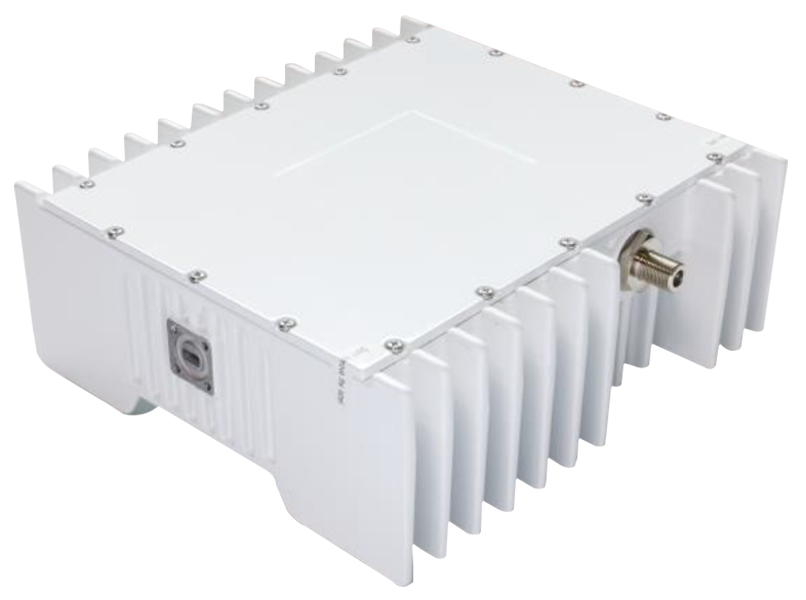

Name: ELEMENT 4W Ka-Band BUC (High Temperature Range)
Brand: Norsat International Inc.
SKU: ELMTBKA004T-AF
Price: 4027.16 USD
Availability: InStock

ELEMENT 4W Ka-Band BUC (High Temperature Range)

ELMTBKA004T-AF

ELEMENT 4W Ka-Band BUC (High Temperature Range)

ELMTBKA004 Series

$4,027.16

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: 4 - 6 Weeks Next Availability Lead Time: 4 - 6 Weeks Next Availability Lead Time: 4 - 6 Weeks Next Availability Lead Time: 4 - 6 Weeks Next Availability Lead Time: 4 - 6 Weeks Next Availability Lead Time: 4 - 6 Weeks

Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea Ex Works: Korea

View Resellers Quantity

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":43159227596983,"title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ No","option1":"A: 29.50 - 30.00 GHz","option2":"F-Connector","option3":"No","sku":"ELMTBKA004T-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - A: 29.50 - 30.00 GHz \/ F-Connector \/ No","public_title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ No","options":["A: 29.50 - 30.00 GHz","F-Connector","No"],"price":402716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227629751,"title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ No","option1":"A: 29.50 - 30.00 GHz","option2":"N-Connector","option3":"No","sku":"ELMTBKA004T-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - A: 29.50 - 30.00 GHz \/ N-Connector \/ No","public_title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ No","options":["A: 29.50 - 30.00 GHz","N-Connector","No"],"price":402716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227662519,"title":"B: 30.00 - 30.50 GHz \/ F-Connector \/ No","option1":"B: 30.00 - 30.50 GHz","option2":"F-Connector","option3":"No","sku":"ELMTBKA004T-BF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - B: 30.00 - 30.50 GHz \/ F-Connector \/ No","public_title":"B: 30.00 - 30.50 GHz \/ F-Connector \/ No","options":["B: 30.00 - 30.50 GHz","F-Connector","No"],"price":402716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227695287,"title":"B: 30.00 - 30.50 GHz \/ N-Connector \/ No","option1":"B: 30.00 - 30.50 GHz","option2":"N-Connector","option3":"No","sku":"ELMTBKA004T-BN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - B: 30.00 - 30.50 GHz \/ N-Connector \/ No","public_title":"B: 30.00 - 30.50 GHz \/ N-Connector \/ No","options":["B: 30.00 - 30.50 GHz","N-Connector","No"],"price":402716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227728055,"title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ No","option1":"C: 29.25 - 30.00 GHz","option2":"F-Connector","option3":"No","sku":"ELMTBKA004T-CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - C: 29.25 - 30.00 GHz \/ F-Connector \/ No","public_title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ No","options":["C: 29.25 - 30.00 GHz","F-Connector","No"],"price":427407,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227760823,"title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ No","option1":"C: 29.25 - 30.00 GHz","option2":"N-Connector","option3":"No","sku":"ELMTBKA004T-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - C: 29.25 - 30.00 GHz \/ N-Connector \/ No","public_title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ No","options":["C: 29.25 - 30.00 GHz","N-Connector","No"],"price":427407,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227793591,"title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","option1":"A: 29.50 - 30.00 GHz","option2":"F-Connector","option3":"Yes","sku":"ELMTBKA004IT-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","public_title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","options":["A: 29.50 - 30.00 GHz","F-Connector","Yes"],"price":557716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227826359,"title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","option1":"A: 29.50 - 30.00 GHz","option2":"N-Connector","option3":"Yes","sku":"ELMTBKA004IT-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","public_title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","options":["A: 29.50 - 30.00 GHz","N-Connector","Yes"],"price":557716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227859127,"title":"B: 30.00 - 30.50 GHz \/ F-Connector \/ Yes","option1":"B: 30.00 - 30.50 GHz","option2":"F-Connector","option3":"Yes","sku":"ELMTBKA004IT-BF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - B: 30.00 - 30.50 GHz \/ F-Connector \/ Yes","public_title":"B: 30.00 - 30.50 GHz \/ F-Connector \/ Yes","options":["B: 30.00 - 30.50 GHz","F-Connector","Yes"],"price":557716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227891895,"title":"B: 30.00 - 30.50 GHz \/ N-Connector \/ Yes","option1":"B: 30.00 - 30.50 GHz","option2":"N-Connector","option3":"Yes","sku":"ELMTBKA004IT-BN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - B: 30.00 - 30.50 GHz \/ N-Connector \/ Yes","public_title":"B: 30.00 - 30.50 GHz \/ N-Connector \/ Yes","options":["B: 30.00 - 30.50 GHz","N-Connector","Yes"],"price":557716,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227924663,"title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","option1":"C: 29.25 - 30.00 GHz","option2":"F-Connector","option3":"Yes","sku":"ELMTBKA004IT-CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","public_title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","options":["C: 29.25 - 30.00 GHz","F-Connector","Yes"],"price":582407,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159227957431,"title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","option1":"C: 29.25 - 30.00 GHz","option2":"N-Connector","option3":"Yes","sku":"ELMTBKA004IT-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 4W Ka-Band BUC (High Temperature Range) - C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","public_title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","options":["C: 29.25 - 30.00 GHz","N-Connector","Yes"],"price":582407,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	28.55 GHz
output frequency band 1	29.50 - 30.00 GHz
output power rated	4W
Product Revision	A

RF SPECIFICATIONS
Gain Flatness (over 54MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 4.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	63 dB
linear gain min	53 dB
linear gain typ	58 dB
output P1dB	36 dBm min.
output power psat	36.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -60 dBc
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	-65 dBc/Hz
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-85 dBc/Hz
phase noise 1kHz offset max	-75 dBc/Hz

ELECTRICAL SPECIFICATIONS
power consumption	60W max.
power requirements	+15 to +30 V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF output connector	WR28

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 100% condensing
temperature operational	-40 to +60°C
temperature storage	-40 to +75°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket

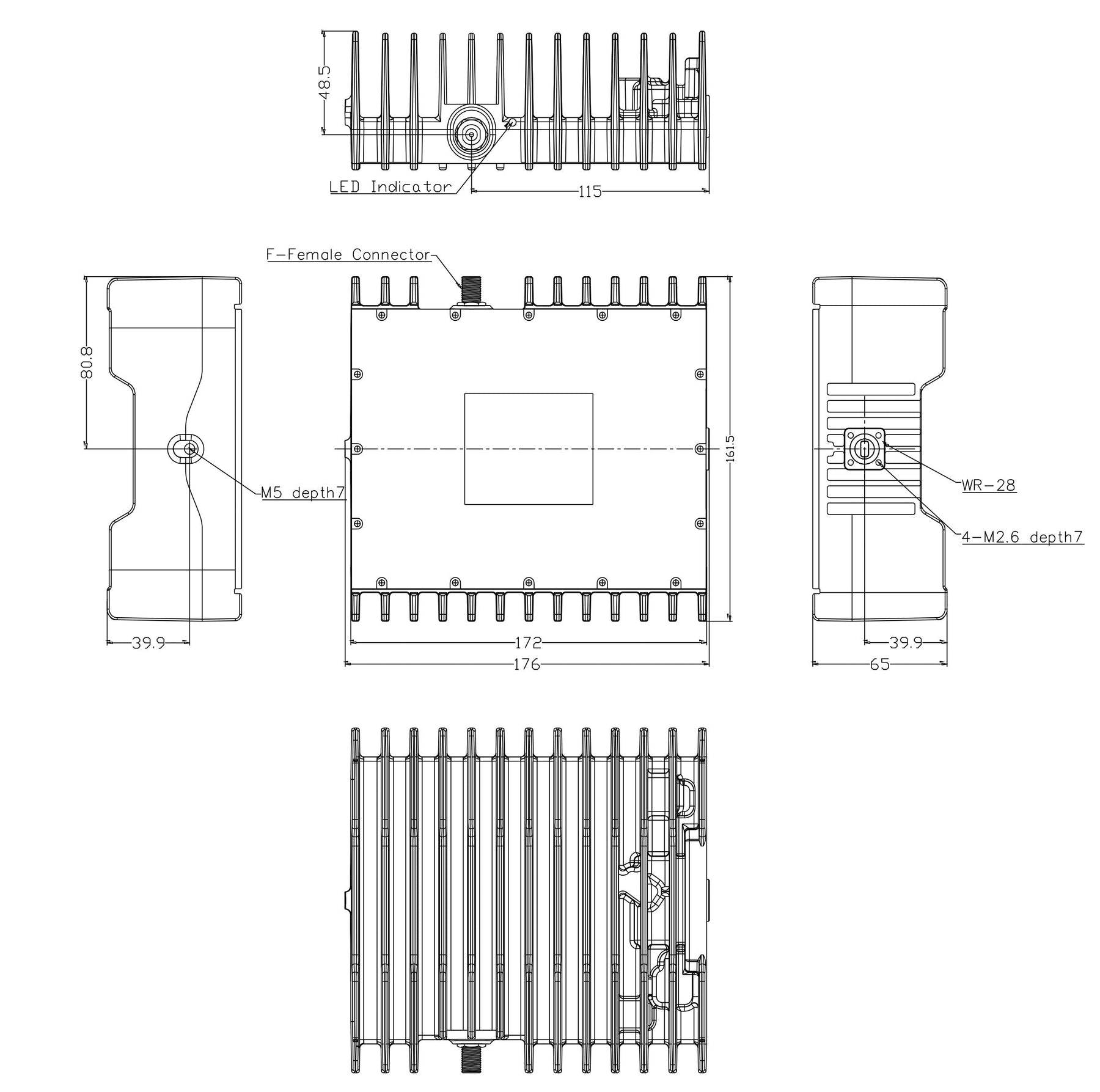

product dimensions (LxWxH)	176 x 161.5 x 65 mm
product weight	1.8 kg

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF output connector	WR28

INFORMATION
HS Code	8543700000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	-
Unit Package Weight	3.0 kg
COMPLIANCE
	Yes
	Yes
	Yes
