LNB Redundant Switch System Single-Band 1:2
LNB Redundant Switch System Single-Band 1:2
LNA Redundant Switch System

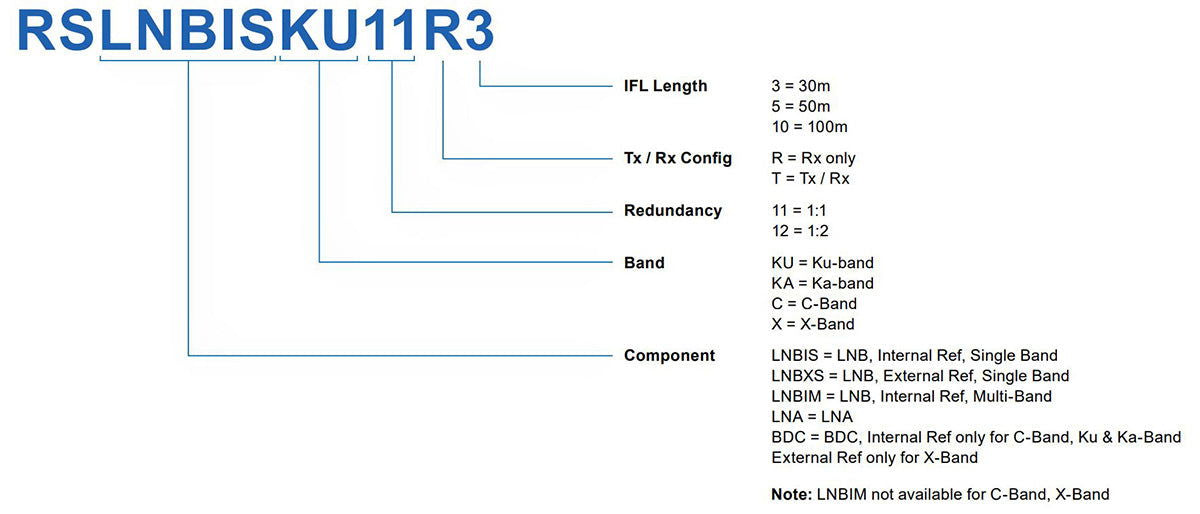

RSLNBISKU12R3

LNB Redundant Switch System Single-Band 1:2

LNB Redundant Switch System

Regular price
$27,648.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band Ku-Band
redundancy 1:2
switchover time 120 ms max.
Product Revision A
RF SPECIFICATIONS
input VSWR LNB Dependent
insertion loss 0.5 dB max.
ELECTRICAL SPECIFICATIONS
power 90 - 264 VAC (47 - 63 Hz)
INTERFACE SPECIFICATIONS
component LNB, Internal Ref, Single Band
IFL cable length 30m
RF input connector Ku-Band: WR-75
RF output connector N-Connector
tx rx configuration Rx Only
ENVIRONMENTAL SPECIFICATIONS
relative humidity < 100%
temperature operational -40 to +60˚C
PHYSICAL SPECIFICATIONS
packaging 26 x 23 x 27 in (661 x 584 x 686 mm)
product dimensions (LxWxH) 483 x 159 x 295 mm
product weight 9 kg
