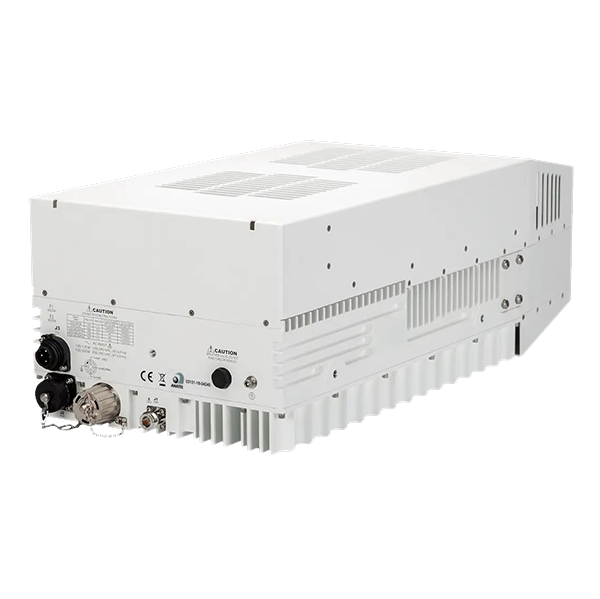

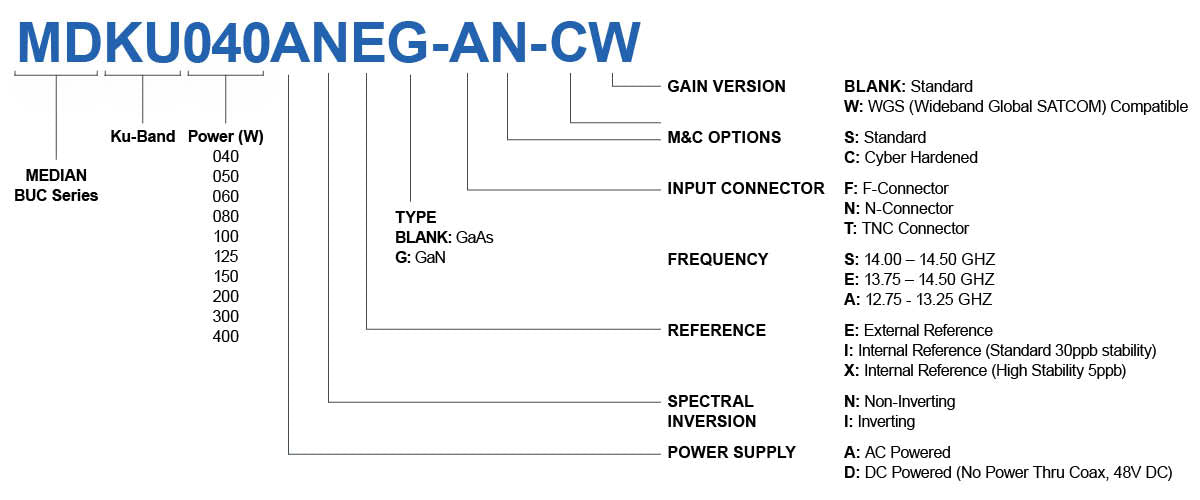

KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
Std Options and Std Specs
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-55 to -20 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
83 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
14.00 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1700 MHz
output frequency band 1
13.75 - 14.50 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+52.5 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
N
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
F
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
KEY SPECIFICATIONS
band
Ku-Band
external ref freq
10 MHz -12 to +5 dBm
frequency sense
Non-Inverting
input frequency band 1
950 - 1450 MHz
output frequency band 1
12.75 - 13.25 GHz
output power rated
200W
reference type
External Reference
RF SPECIFICATIONS
attenuator range
30 dB variable in 0.1 dB steps
gain flatness (1MHz)
0.25 dB p-p
gain flatness (36MHz)
1.5 dB p-p Max
gain flatness (over full band)
4 dB p-p Max
gain variation over temperature (open loop)
3 dB p-p Max
gain variation over temperature (witg AGC)
1 dB p-p max
gain version
WGS Compatibility Option
harmonics
-50 dBc max.
IMD3
-24 dBc max
input impedance
50 Ohm
input power detector range
-35 to 0 dBm
input VSWR
1.5 : 1
Level Stability with ALC
± 0.5 dB
output noise power density Rx
-145 dBm/Hz
output noise power density Tx
-73 dBm/Hz
output power P1dB
+53 dBm min
output spurious in band
-65 dBc
output spurious out of band
Complies with EN 301 428/430 & MIL-STD 188-164C
output VSWR
1.3 : 1 max
phase noise 100Hz offset max
-140 dBc/Hz
phase noise 10Hz offset max
-115 dBC/Hz
phase noise 10kHz offset max
-155 dBc/Hz
phase noise 1kHz offset max
-150 dBc/Hz
small signal gain
73 dB min
ELECTRICAL SPECIFICATIONS
current consumption
2150 VA
output power detector range
Rated power to -20 dB
power reading accuracy
± 1.0 dB max.
power requirements
200 to 240 VAC
power supply
AC Powered
INTERFACE SPECIFICATIONS
IF connector
TNC
M and C option
Cyber Hardened
output connector
WR75 Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude
10,000 ft (3,000 m) ASL
humidity
100% Condensing
IP rating
IP 65+
temperature operational
-40°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
737 x 381 x 257 mm
product weight
38 kg
INFORMATION
HS Code
8517620090
Country of Origin
Made in USA
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
991 x 610 x 584 mm
Unit Package Weight
58.06 kg
COMPLIANCE
Yes
Yes
Yes
Open here
MDKU-CE-Certificate.pdf
