Name: RF High Power Amplifier Systems 6 - 18 GHz
Brand: Norsat International Inc.
SKU: HPASC050
Price: 24555.56 USD
Availability: InStock

RF High Power Amplifier Systems 6 - 18 GHz

HPASC050

RF High Power Amplifier Systems 6 - 18 GHz

RF High Power Amplifier

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51697471979887,"title":"43 dBm","option1":"43 dBm","option2":null,"option3":null,"sku":"HPASC050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 6 - 18 GHz - 43 dBm","public_title":"43 dBm","options":["43 dBm"],"price":2455556,"weight":33000,"compare_at_price":2455556,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472012655,"title":"47 dBm","option1":"47 dBm","option2":null,"option3":null,"sku":"HPASC051","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 6 - 18 GHz - 47 dBm","public_title":"47 dBm","options":["47 dBm"],"price":7430222,"weight":23000,"compare_at_price":7430222,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472045423,"title":"50 dBm","option1":"50 dBm","option2":null,"option3":null,"sku":"HPASC052","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 6 - 18 GHz - 50 dBm","public_title":"50 dBm","options":["50 dBm"],"price":9533333,"weight":33000,"compare_at_price":9533333,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472078191,"title":"54 dBm","option1":"54 dBm","option2":null,"option3":null,"sku":"HPASC053","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 6 - 18 GHz - 54 dBm","public_title":"54 dBm","options":["54 dBm"],"price":15683778,"weight":38000,"compare_at_price":15683778,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472110959,"title":"58 dBm","option1":"58 dBm","option2":null,"option3":null,"sku":"HPASC054","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 6 - 18 GHz - 58 dBm","public_title":"58 dBm","options":["58 dBm"],"price":61906000,"weight":270000,"compare_at_price":61906000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
gain min	43 dB
input frequency band 1	6 - 18 GHz
number of bands	Single-Band
output Psat min	43 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ALC precision	±0.5 dB max.
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness typ	±3 dB
harmonics	-15 dBc max.@Pout=43dBm
input VSWR max	2.0 : 1
RF input power	10 dBm
spurious	-60 dBc max.@Pout=43dBm

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
display fundctions	1. Output Power; 2. Reflect Power; 3. Fault message
impedance	50 Ohms
power consumption	400Watts@max.
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/Ethernet, LCD Screen Display
communication interfaces	RS422/RJ-45
input connector	SMA Female
output connector	SMA Female

ENVIRONMENTAL SPECIFICATIONS
altitude	50000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +50°C
temperature storage	-45°C to +65°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 3U x 550 depth
product weight	≤ 30 kg

KEY SPECIFICATIONS
gain min	47 dB
input frequency band 1	6 - 18 GHz
number of bands	Single-Band
output Psat min	47 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness max	±4.5 dB
harmonics	-10 dBc max.@Pout=47dBm
input VSWR max	2.0 : 1
output P1dB typ	42 dBm
RF input power	10 dBm
spurious	-60 dBc max.@Pout=47dBm

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
impedance	50 Ohms
power consumption	800Watts@max.
power requirements	110V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/Ethernet, LCD Screen Display
input connector	N Female
output connector	SMA Female

ENVIRONMENTAL SPECIFICATIONS
altitude	50000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +50°C
temperature storage	-45°C to +65°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 4U x 550 depth
product weight	≤ 20 kg

KEY SPECIFICATIONS
gain min	50 dB
input frequency band 1	6 - 18 GHz
number of bands	Single-Band
output Psat min	50 dBm
output Psat typ	51 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain adjustable step	0.5 dB typ.
gain adjust range	31.5dB typ.
gain flatness max	±3.5 dB
harmonics	-10 dBc max.
input VSWR max	2.0 : 1
RF input power	10 dBm
spurious	-60 dBc typ.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
impedance	50 Ohms
monitoring functions	1. Forward Power; 2. Temp Fault
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
remote control	Ethernet RJ-45 TCP/IP
supply bias voltage	260V AC

INTERFACE SPECIFICATIONS
AC power interface	Air switch
input connector	N Female
output connector	WRD500

ENVIRONMENTAL SPECIFICATIONS
altitude	50000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +60°C
temperature storage	-45°C to +65°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 4U mm
product weight	30 kg

KEY SPECIFICATIONS
gain min	54 dB
input frequency band 1	6 - 18 GHz
number of bands	Single-Band
output Psat min	54 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain adjustable step	0.5 dB typ.
gain adjust range	30dB typ.
gain flatness max	±4 dB
harmonics	-15dBc typ.; -10 dBc max.@Pout=54dBm
input VSWR max	2.0 : 1
output P1dB typ	49 dBm
RF input power	10 dBm
spurious	-60 dBc max.@Pout=54dBm

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
impedance	50 Ohms
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
supply bias voltage	220V AC

INTERFACE SPECIFICATIONS
communication functions	RS422/Ethernet, LCD Screen Display
input connector	N Female
output connector	WRD500

ENVIRONMENTAL SPECIFICATIONS
altitude	10000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	0°C to +50°C
temperature storage	-20°C to +50°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	5U
product weight	35 kg

KEY SPECIFICATIONS
gain min	58 dB
input frequency band 1	6 - 18 GHz
number of bands	Single-Band
output Psat min	58 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
gain flatness typ	±4.5 dB
harmonics	-15dBc typ. -10 dBc max.
input VSWR max	2.0 : 1
output P1dB typ	55 dBm
RF input power	10 dBm
spurious	-60 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	Power setting On/Off
ESD sensitivity	Class 0, passed 150V
impedance	50 Ohms
power consumption	15 Kw max.
power requirements	380V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/LAN
input connector	N Female
output connector	WRD500D36
remote control	RS422/LAN

ENVIRONMENTAL SPECIFICATIONS
altitude	10,000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +40°C
temperature storage	-30°C to +50°C

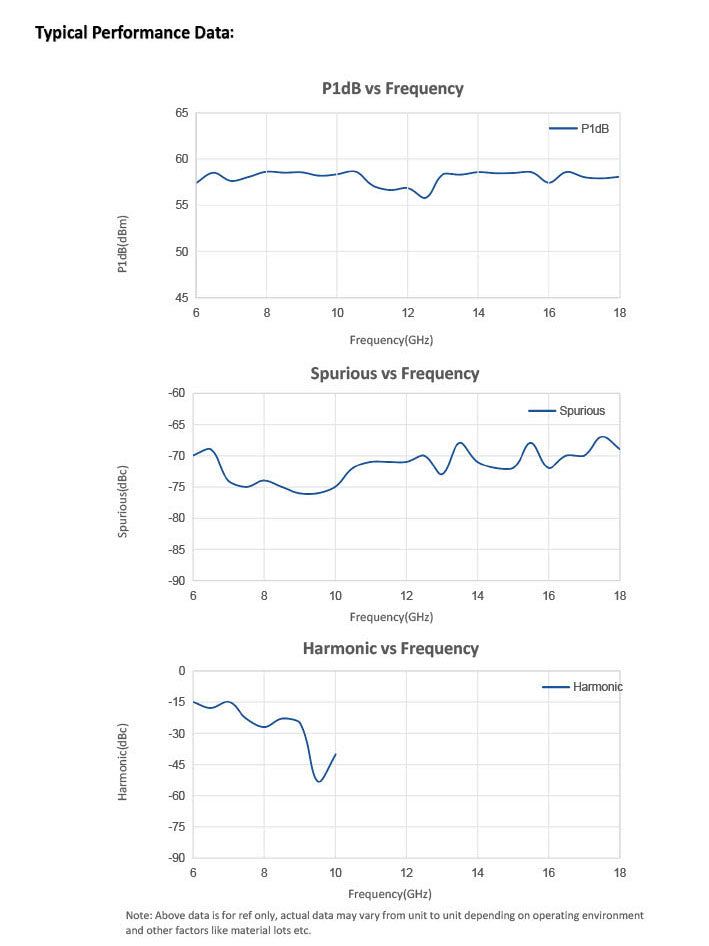

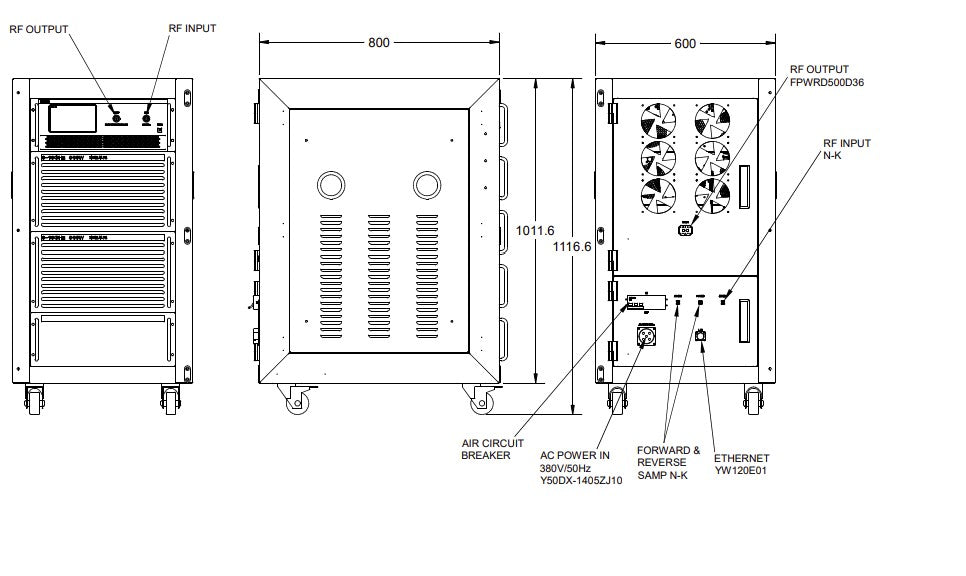

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	32U x 800mm
product weight	350 kg

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517799000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	3A001.b.4.b.4
Warranty	3 years
Unit Package Dimensions	535 x 1490 x 800 mm
Unit Package Weight	400 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
