Name: Single-Band C-Band EXT BDC
Brand: Norsat International Inc.
SKU: BDC-CXACF
Price: 1688.89 USD
Availability: InStock

BDC-CXACF

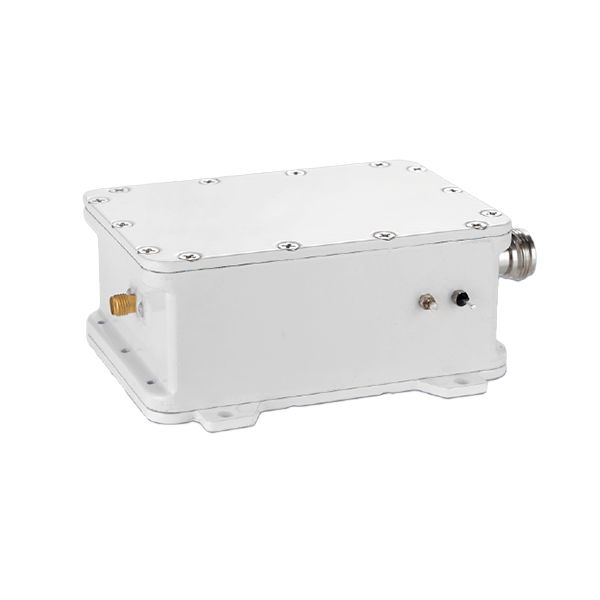

Single-Band C-Band EXT BDC

BDC Series

$1,688.89

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

[{"id":42776125833399,"title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ F Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Output connector only","option3":"F Connector","sku":"BDC-CXACF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Output connector only \/ F Connector","public_title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ F Connector","options":["A: 3.4 - 4.2 GHz","Output connector only","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776125866167,"title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ N Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Output connector only","option3":"N Connector","sku":"BDC-CXACN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Output connector only \/ N Connector","public_title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ N Connector","options":["A: 3.4 - 4.2 GHz","Output connector only","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776125898935,"title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ SMA Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Output connector only","option3":"SMA Connector","sku":"BDC-CXACS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Output connector only \/ SMA Connector","public_title":"A: 3.4 - 4.2 GHz \/ Output connector only \/ SMA Connector","options":["A: 3.4 - 4.2 GHz","Output connector only","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776125931703,"title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ F Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed \u0026 output connector","option3":"F Connector","sku":"BDC-CXADF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ F Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ F Connector","options":["A: 3.4 - 4.2 GHz","Feed \u0026 output connector","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776125964471,"title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ N Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed \u0026 output connector","option3":"N Connector","sku":"BDC-CXADN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ N Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ N Connector","options":["A: 3.4 - 4.2 GHz","Feed \u0026 output connector","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776125997239,"title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ SMA Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed \u0026 output connector","option3":"SMA Connector","sku":"BDC-CXADS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ SMA Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed \u0026 output connector \/ SMA Connector","options":["A: 3.4 - 4.2 GHz","Feed \u0026 output connector","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126030007,"title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ F Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed through con. only","option3":"F Connector","sku":"BDC-CXAPF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed through con. only \/ F Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ F Connector","options":["A: 3.4 - 4.2 GHz","Feed through con. only","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126062775,"title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ N Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed through con. only","option3":"N Connector","sku":"BDC-CXAPN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed through con. only \/ N Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ N Connector","options":["A: 3.4 - 4.2 GHz","Feed through con. only","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126095543,"title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ SMA Connector","option1":"A: 3.4 - 4.2 GHz","option2":"Feed through con. only","option3":"SMA Connector","sku":"BDC-CXAPS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - A: 3.4 - 4.2 GHz \/ Feed through con. only \/ SMA Connector","public_title":"A: 3.4 - 4.2 GHz \/ Feed through con. only \/ SMA Connector","options":["A: 3.4 - 4.2 GHz","Feed through con. only","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126128311,"title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ F Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Output connector only","option3":"F Connector","sku":"BDC-CXBCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Output connector only \/ F Connector","public_title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ F Connector","options":["B: 4.5 - 4.8 GHz","Output connector only","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126161079,"title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ N Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Output connector only","option3":"N Connector","sku":"BDC-CXBCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Output connector only \/ N Connector","public_title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ N Connector","options":["B: 4.5 - 4.8 GHz","Output connector only","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126193847,"title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ SMA Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Output connector only","option3":"SMA Connector","sku":"BDC-CXBCS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Output connector only \/ SMA Connector","public_title":"B: 4.5 - 4.8 GHz \/ Output connector only \/ SMA Connector","options":["B: 4.5 - 4.8 GHz","Output connector only","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126226615,"title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ F Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed \u0026 output connector","option3":"F Connector","sku":"BDC-CXBDF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ F Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ F Connector","options":["B: 4.5 - 4.8 GHz","Feed \u0026 output connector","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126259383,"title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ N Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed \u0026 output connector","option3":"N Connector","sku":"BDC-CXBDN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ N Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ N Connector","options":["B: 4.5 - 4.8 GHz","Feed \u0026 output connector","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126292151,"title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ SMA Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed \u0026 output connector","option3":"SMA Connector","sku":"BDC-CXBDS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ SMA Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed \u0026 output connector \/ SMA Connector","options":["B: 4.5 - 4.8 GHz","Feed \u0026 output connector","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126324919,"title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ F Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed through con. only","option3":"F Connector","sku":"BDC-CXBPF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed through con. only \/ F Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ F Connector","options":["B: 4.5 - 4.8 GHz","Feed through con. only","F Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126357687,"title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ N Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed through con. only","option3":"N Connector","sku":"BDC-CXBPN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed through con. only \/ N Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ N Connector","options":["B: 4.5 - 4.8 GHz","Feed through con. only","N Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776126390455,"title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ SMA Connector","option1":"B: 4.5 - 4.8 GHz","option2":"Feed through con. only","option3":"SMA Connector","sku":"BDC-CXBPS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band EXT BDC - B: 4.5 - 4.8 GHz \/ Feed through con. only \/ SMA Connector","public_title":"B: 4.5 - 4.8 GHz \/ Feed through con. only \/ SMA Connector","options":["B: 4.5 - 4.8 GHz","Feed through con. only","SMA Connector"],"price":168889,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz, -5 to +5 dBm
LO frequency 1	5.15 GHz
LO stability	Ext Ref
noise figure	10 dB max.
output frequency band 1	950 - 1750 MHz
reference type	External Reference
Product Revision	A

RF SPECIFICATIONS
conversion gain max	43 dB
conversion gain min	37 dB
conversion gain typ	40 dB
frequency range	C-Band: 3.4 - 4.2 GHz
gain flatness	4 dB p-p max.
gain ripple (at per 36MHz)	1 dB p-p max.
image rejection	45 dBc min.
input VSWR	2.0 : 1 max.
output P1dB	5 dB max.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 1kHz offset max	-73 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
input power	Output connector only
power requirements	+12 to +24 V DC

INTERFACE SPECIFICATIONS
RF input connector	SMA Connector
RF output connector	F Connector

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	108.0 x 94.0 x 46.0 mm
product weight	0.62 kg

INFORMATION
HS Code	-
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.62 kg
COMPLIANCE
	Yes
	Yes
	No
