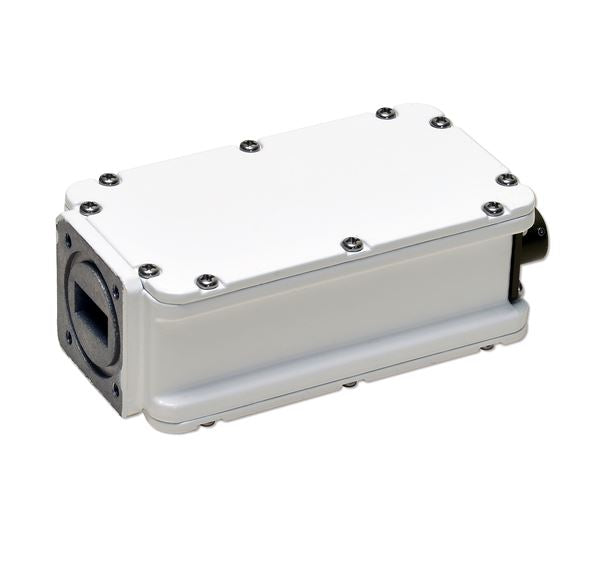

Name: Single-Band Ku-Band LNA
Brand: Norsat International Inc.
SKU: LNAKU00NP
Price: 2510.00 USD
Availability: InStock

LNAKU00NP

Single-Band Ku-Band LNA

LNA Series

$2,510.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

[{"id":42754380824759,"title":"00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","option1":"00: 10.7 - 12.75 GHz","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAKU00NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","options":["00: 10.7 - 12.75 GHz","N - 50 Ohm","MS3112E10-6P"],"price":251000,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380857527,"title":"00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","option1":"00: 10.7 - 12.75 GHz","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAKU00NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","public_title":"00: 10.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","options":["00: 10.7 - 12.75 GHz","N - 50 Ohm","Output connector"],"price":238000,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380890295,"title":"00: 10.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","option1":"00: 10.7 - 12.75 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKU00SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 00: 10.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","public_title":"00: 10.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","options":["00: 10.7 - 12.75 GHz","SMA","MS3112E10-6P"],"price":251000,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380923063,"title":"00: 10.7 - 12.75 GHz \/ SMA \/ Output connector","option1":"00: 10.7 - 12.75 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKU00SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 00: 10.7 - 12.75 GHz \/ SMA \/ Output connector","public_title":"00: 10.7 - 12.75 GHz \/ SMA \/ Output connector","options":["00: 10.7 - 12.75 GHz","SMA","Output connector"],"price":238000,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380955831,"title":"10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ MS3112E10-6P","option1":"10: 10.7 - 11.7 GHz","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAKU10NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ MS3112E10-6P","options":["10: 10.7 - 11.7 GHz","N - 50 Ohm","MS3112E10-6P"],"price":245800,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380988599,"title":"10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ Output connector","option1":"10: 10.7 - 11.7 GHz","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAKU10NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ Output connector","public_title":"10: 10.7 - 11.7 GHz \/ N - 50 Ohm \/ Output connector","options":["10: 10.7 - 11.7 GHz","N - 50 Ohm","Output connector"],"price":232700,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381021367,"title":"10: 10.7 - 11.7 GHz \/ SMA \/ MS3112E10-6P","option1":"10: 10.7 - 11.7 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKU10SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 10: 10.7 - 11.7 GHz \/ SMA \/ MS3112E10-6P","public_title":"10: 10.7 - 11.7 GHz \/ SMA \/ MS3112E10-6P","options":["10: 10.7 - 11.7 GHz","SMA","MS3112E10-6P"],"price":245800,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381054135,"title":"10: 10.7 - 11.7 GHz \/ SMA \/ Output connector","option1":"10: 10.7 - 11.7 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKU10SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 10: 10.7 - 11.7 GHz \/ SMA \/ Output connector","public_title":"10: 10.7 - 11.7 GHz \/ SMA \/ Output connector","options":["10: 10.7 - 11.7 GHz","SMA","Output connector"],"price":232700,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381086903,"title":"20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","option1":"20: 11.7 - 12.75 GHz","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAKU20NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ MS3112E10-6P","options":["20: 11.7 - 12.75 GHz","N - 50 Ohm","MS3112E10-6P"],"price":245800,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381119671,"title":"20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","option1":"20: 11.7 - 12.75 GHz","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAKU20NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","public_title":"20: 11.7 - 12.75 GHz \/ N - 50 Ohm \/ Output connector","options":["20: 11.7 - 12.75 GHz","N - 50 Ohm","Output connector"],"price":232700,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381152439,"title":"20: 11.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","option1":"20: 11.7 - 12.75 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKU20SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 20: 11.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","public_title":"20: 11.7 - 12.75 GHz \/ SMA \/ MS3112E10-6P","options":["20: 11.7 - 12.75 GHz","SMA","MS3112E10-6P"],"price":245800,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381185207,"title":"20: 11.7 - 12.75 GHz \/ SMA \/ Output connector","option1":"20: 11.7 - 12.75 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKU20SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ku-Band LNA - 20: 11.7 - 12.75 GHz \/ SMA \/ Output connector","public_title":"20: 11.7 - 12.75 GHz \/ SMA \/ Output connector","options":["20: 11.7 - 12.75 GHz","SMA","Output connector"],"price":232700,"weight":475,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	10.70 - 12.75 GHz
noise figure	0.8 dB
Product Revision	A

RF SPECIFICATIONS
conversion gain max	60 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness	4 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.0 : 1
output P1dB	+ 5 dBm
output VSWR	2.0 : 1

ELECTRICAL SPECIFICATIONS
input power	MS3112E10-6P
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
input W/G flange	WR 75

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS

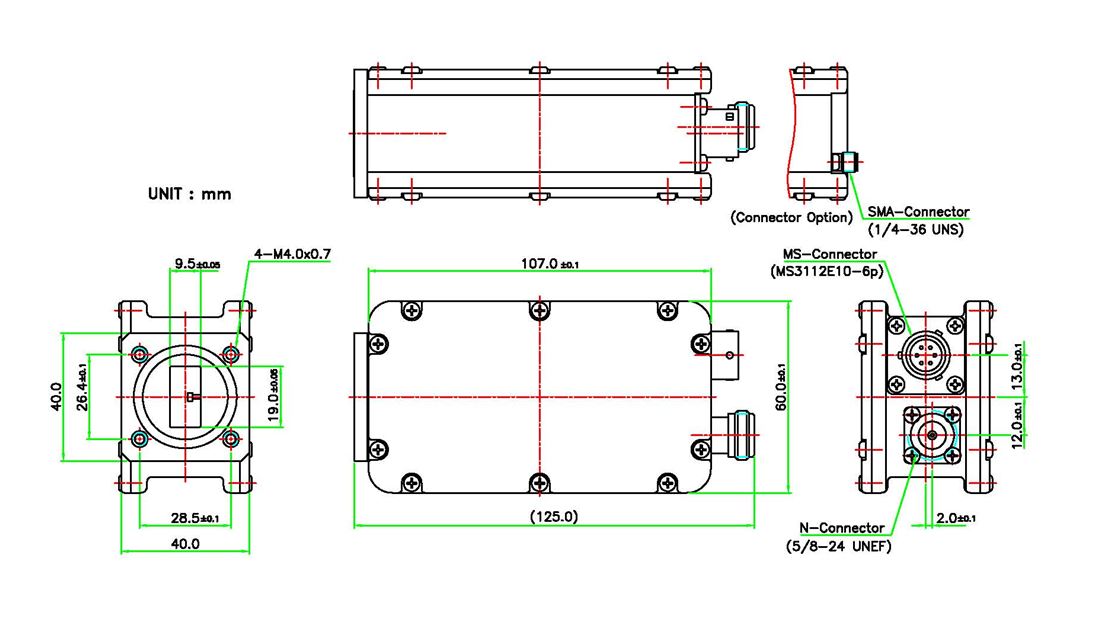

product dimensions (LxWxH)	60.0 x 41.6 x 111.5 mm
product weight	0.45 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	0.475 kg
COMPLIANCE
	Yes
	Yes
	Yes
