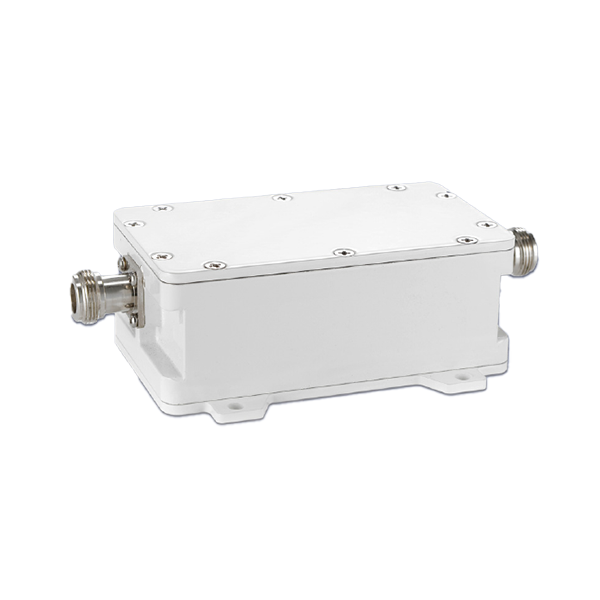

Name: Single-Band X-Band BDC (10 KHz max.)
Brand: Norsat International Inc.
SKU: BDC-X10HCNF
Price: 3466.67 USD
Availability: InStock

BDC-X10HCNF

Single-Band X-Band BDC (10 KHz max.)

BDC Series

$3,466.67

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

[{"id":42776158208183,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: N Connector \u0026 Output: F Connector","sku":"BDC-X10HCNF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: N Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158240951,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: N Connector \u0026 Output: N Connector","sku":"BDC-X10HCNN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: N Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158273719,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: N Connector \u0026 Output: SMA Connector","sku":"BDC-X10HCNS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: N Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: N Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158306487,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: SMA Connector \u0026 Output: F Connector","sku":"BDC-X10HCSF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: SMA Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158339255,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: SMA Connector \u0026 Output: N Connector","sku":"BDC-X10HCSN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: SMA Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158372023,"title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Output connector only","option3":"Input: SMA Connector \u0026 Output: SMA Connector","sku":"BDC-X10HCSS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Output connector only \/ Input: SMA Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Output connector only","Input: SMA Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158404791,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: N Connector \u0026 Output: F Connector","sku":"BDC-X10HDNF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: N Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158437559,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: N Connector \u0026 Output: N Connector","sku":"BDC-X10HDNN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: N Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158470327,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: N Connector \u0026 Output: SMA Connector","sku":"BDC-X10HDNS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: N Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: N Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158503095,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: SMA Connector \u0026 Output: F Connector","sku":"BDC-X10HDSF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: SMA Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158535863,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: SMA Connector \u0026 Output: N Connector","sku":"BDC-X10HDSN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: SMA Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158568631,"title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Feed \u0026 output connector","option3":"Input: SMA Connector \u0026 Output: SMA Connector","sku":"BDC-X10HDSS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Feed \u0026 output connector \/ Input: SMA Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Feed \u0026 output connector","Input: SMA Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158601399,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: N Connector \u0026 Output: F Connector","sku":"BDC-X10HPNF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: N Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158634167,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: N Connector \u0026 Output: N Connector","sku":"BDC-X10HPNN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: N Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158666935,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: N Connector \u0026 Output: SMA Connector","sku":"BDC-X10HPNS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: N Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: N Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158699703,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: F Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: SMA Connector \u0026 Output: F Connector","sku":"BDC-X10HPSF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: F Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: F Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: SMA Connector \u0026 Output: F Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158732471,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: N Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: SMA Connector \u0026 Output: N Connector","sku":"BDC-X10HPSN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: N Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: N Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: SMA Connector \u0026 Output: N Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42776158765239,"title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: SMA Connector","option1":"7.25 - 7.75 GHz","option2":"Feed through con. only","option3":"Input: SMA Connector \u0026 Output: SMA Connector","sku":"BDC-X10HPSS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band BDC (10 KHz max.) - 7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: SMA Connector","public_title":"7.25 - 7.75 GHz \/ Feed through con. only \/ Input: SMA Connector \u0026 Output: SMA Connector","options":["7.25 - 7.75 GHz","Feed through con. only","Input: SMA Connector \u0026 Output: SMA Connector"],"price":346667,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	X-Band
LO frequency 1	6.3 GHz
LO stability	10 KHz max.
noise figure	13 dB max.
output frequency band 1	950 - 1450 MHz
reference type	Internal Reference
Product Revision	A

RF SPECIFICATIONS
conversion gain max	33 dB
conversion gain min	27 dB
conversion gain typ	30 dB
frequency range	X-Band: 7.25 - 7.75 GHz
gain flatness	4 dB p-p max.
gain ripple (at per 36MHz)	1 dB p-p max.
image rejection	40 dBc min.
input VSWR	2.2 : 1 max.
output P1dB	5 dB max.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
input power	Output connector only
power requirements	+12 to +24 V DC

INTERFACE SPECIFICATIONS
RF input connector	N Connector
RF output connector	F Connector

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS

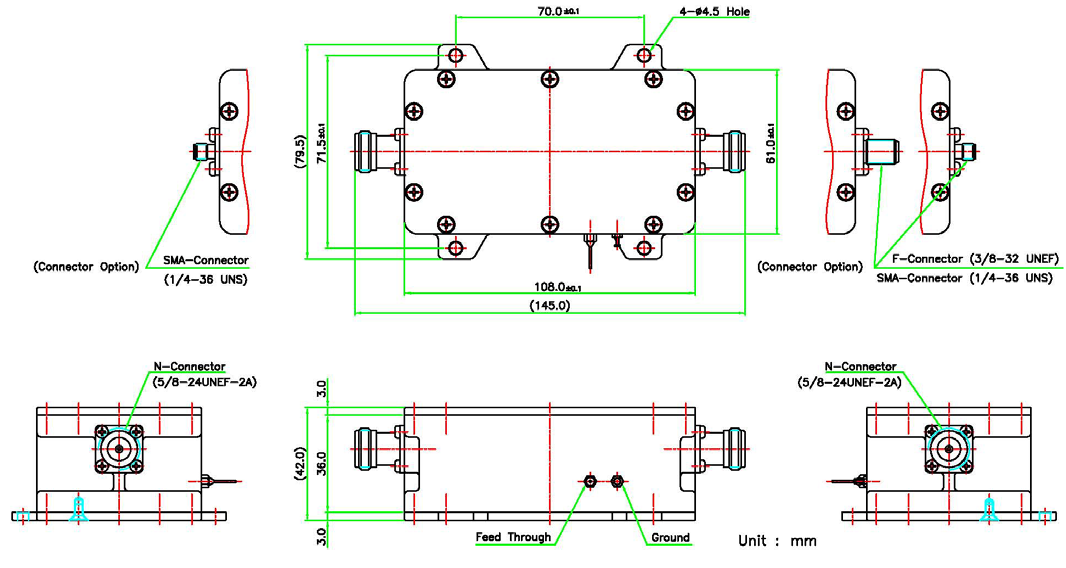

product dimensions (LxWxH)	42.6 x 79.5 x 108.0 mm
product weight	0.55 kg

INTERFACE SPECIFICATIONS
RF input connector	SMA Connector
RF output connector	F Connector

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.55 kg
