WFA120KAP

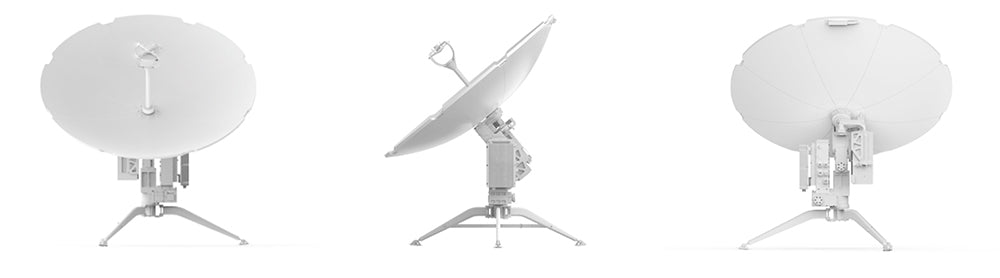

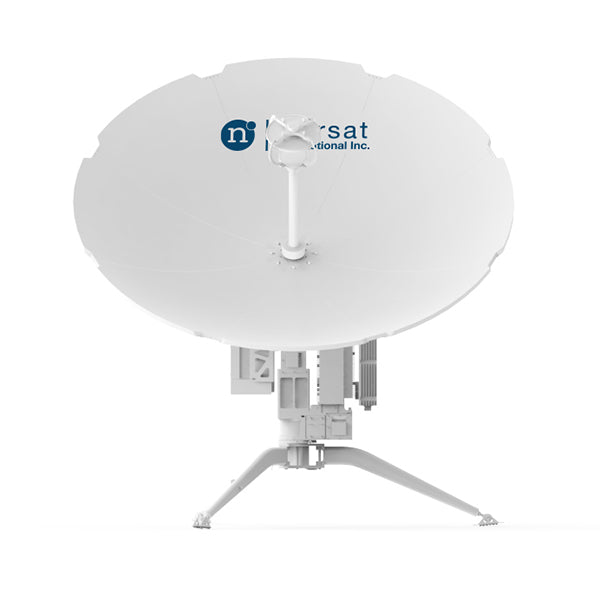

WAYFARER 1.2m Ka-Band Auto Flyaway Antenna - Ring Focus Prime Feed
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 1.2m |
| antenna category | Auto Flyaway |
| band | Ka-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Ring Focus Prime Feed |
| axis ratio | ≤ 1.0 dB |
| azimuth angle | ±200° |
| azimuth velocity | 0.1° /S ～3° /S |
| elevation angle | 10° - 90° |
| elevation veolcity | 0.1° /S ～3° /S |
| initial auto acquisition time | ≤ 3 min |
| pointing accuracy | ≤ 0.5 dB |
| polarization | Circular |
| polarization velocity | 1° /S |
| sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | 85 dB |
| port isolation Tx-Rx | 40 dB |
| power capacity | 100 W |
| Rx frequency | 17.70 - 21.20 GHz |
| rx gain | ≥ 45.0 +20lg(f/20GHz)dBi |
| Rx interface | WR42 |
| Rx VSWR | ≤ 1.5：1 |
| Tx frequency | 27.50 - 31.00 GHz |
| tx gain | ≥ 48.5+20lg(f/29.25GHz)dBi |
| Tx interface | WR28 |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | AC 110 - 240V, 47-63 Hz, ≤ 100W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| positioning mode | Beacon/DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 0-95% |
| IP rating | IP 65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤ 11m/s |
| windspeed survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable (included) | Power Supply and RF cable |
| default cable length | 10m |
| product weight | ≤ 26 kg (excluding BUC, LNB, packaging and accessories) |
| reflector material | Carbon Fiber |
