WFA370KUR

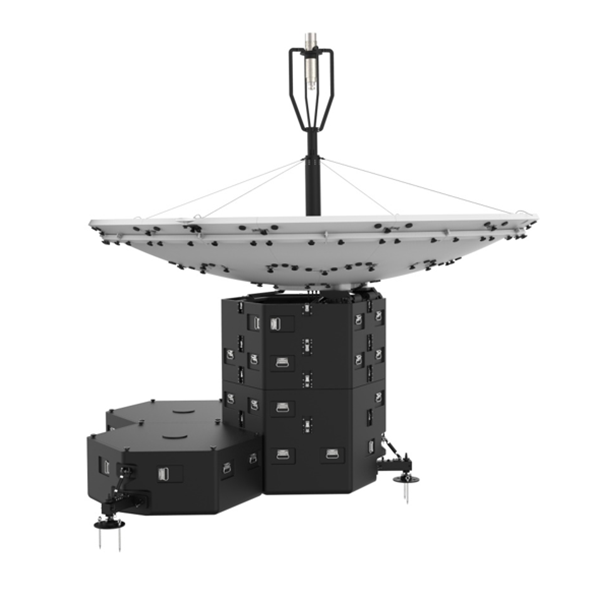

WAYFARER 3.7m Ku-Band Auto Flyaway Antenna - Ring Focus
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 3.7m |
| antenna category | Auto Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Ring Focus |
| azimuth angle | EL＞36° AZ: ±180°；EL≤36° AZ: ±60° |
| azimuth velocity | 0.1° /S |
| cross polarization isolation | ≥36 dB |
| elevation angle | 0° - 90° |
| elevation veolcity | 0.5° /S |
| initial auto acquisition time | ≤ 5 min |
| polarization | Linear |
| polarization range | ± 90° |
| polarization velocity | 0.5° /S |
| sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Tx-Rx | 85 dB |
| Rx frequency | 10.70 - 12.75 GHz |
| rx gain | 51.1dBi @ 12.5GHz |
| Rx interface | WR75 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | 52.2dBi @ 14.25GHz |
| Tx interface | WR75 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 220VAC 50Hz |
| INTERFACE SPECIFICATIONS | |
|---|---|
| positioning mode | Beacon/DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 0-95% |
| temperature operational | -20°C to +60°C |
| temperature storage | -30°C to +70°C |
| windspeed operational | 16m/s |
| windspeed survival | 27m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable length | 10m |
| RMS | 0.3dB |
